HT-480 Engine Drive Refrigeration Unit with R404A Refrigerant for ≤18m³ Refrigerated Trucks
HT-480 Engine Drive Refrigeration Unit with R404A Refrigerant for ≤18m³ Refrigerated Trucks
HT-480 Engine Drive Refrigeration Unit with R404A Refrigerant for ≤18m³ Refrigerated Trucks
HT-480 Engine Drive Refrigeration Unit with R404A Refrigerant for ≤18m³ Refrigerated Trucks
Specifications
Brand Name :
YINHUASHENG
Model Number :
HT-480
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C,T/T
Supply Ability :
1000
Delivery Time :
20
Packaging Details :
WOODEN CASE/CARTOON
Box Volume :
≤18m³
Cooling Capacity :
0℃/30℃: 4750 W, -20℃/30℃: 2130 W
Compressor Model :
5H14
Refrigerant Type :
R404a
Refrigerant Charge :
1.4KG
Weight :
Evaporator: 26 KG, Condenser: 35 KG
Description
HT-480 Non-independent Engine Drive Refrigeration Unit
Designed for ≤18m³ refrigerated trucks with R404A refrigerant (R134a optional)
Product Overview
HT-480 non-independent engine driven refrigeration unit is powered by the vehicle engine, specially designed for ≤18m³ refrigerated trucks. It adopts eco-friendly R404A refrigerant (R134a optional), with easy installation, low operational & service cost, and stable performance. Ideal for long-distance transportation of chilled/frozen foods, medical supplies, fruits, vegetables, ice cubes, seafood, etc. OEM customization is available.
This HT-480 refrigeration unit adopts direct engine drive, powered directly by the vehicle engine, ensuring stable power output and continuous cooling performance during transportation. It effectively maintains the integrity of the cold chain, keeping temperature-sensitive goods fresh and intact throughout the journey.
Core Features
  • Eco-friendly refrigerant R404A; R134a system also available to meet diverse market needs
  • Corrosion-resistant and high-strength FRP canning material for durability and rust-proof performance
  • Aluminium fin parallel flow condenser with lightweight design and excellent heat exchange performance
  • Inner grooved copper tube paired with robust evaporator for large airflow and stable cooling
  • Strong, reliable compressor designed for R404a systems with low failure rate
  • Digital display control panel for simple and intuitive temperature adjustment
  • HP and LP switch safety protection to prevent equipment damage
  • Large cooling capacity and reliable overall performance for quick temperature achievement
Product Images
HT-480 Engine Drive Refrigeration Unit with R404A Refrigerant for ≤18m³ Refrigerated Trucks HT-480 Engine Drive Refrigeration Unit with R404A Refrigerant for ≤18m³ Refrigerated Trucks
Technical Parameters
Item Technical Specification
Unit Model HT-480
Applicable Temperature -20℃ ~ +20℃
Box Volume ≤18m³
Cooling Capacity (W) 0℃/30℃: 4750 W
-20℃/30℃: 2130 W
Compressor Model: 5H14
CC: 135 CC
Lubricating Oil: PAG 68

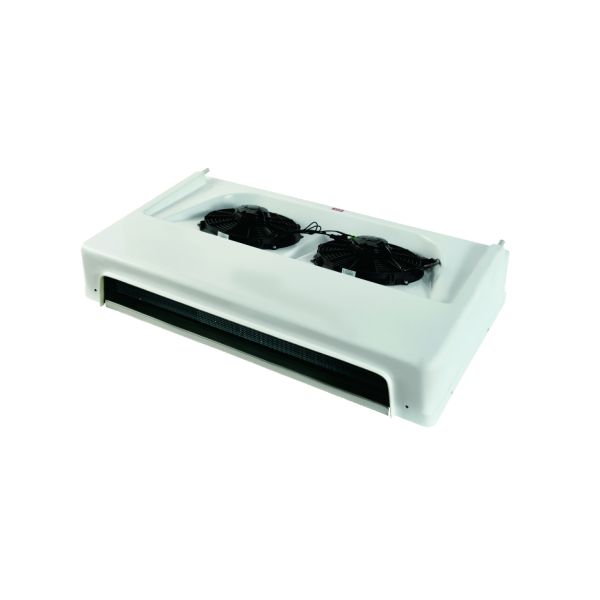

Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
Refrigerant R404a
Refrigerant Charge 1.4KG
Box Temperature Adjustment Electronic digital display
Safety Protect High and low pressure switch
Defrosting Hot gas defrost automatically
Weight Evaporator: 26 KG
Condenser: 35 KG
Dimensions Evaporator: 1010*640*250
Condenser: 1170*520*415
Drive Model Non-independent engine driven
Installation
HT-480 Engine Drive Refrigeration Unit with R404A Refrigerant for ≤18m³ Refrigerated Trucks
Why Choose HT-480 Refrigeration Unit?
  • Direct engine drive provides stable power supply without additional power source
  • Perfectly matched for ≤18m³ refrigerated trucks with large cooling capacity
  • Supports OEM customization for personalized customer needs
  • Low operational and service cost with high cost-effectiveness
  • Easy installation saves time and labor costs
  • Suitable for long-distance transportation with stable performance
  • Eco-friendly refrigerant and durable FRP material for long service life
