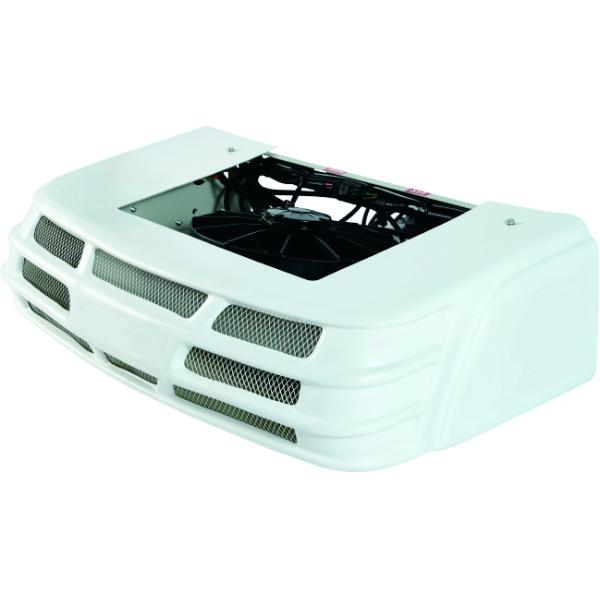

HT-280 Refrigeration Unit for Small Vans with Corrosion Resistant FRP Canning, R404A Refrigerant, and Digital Display Control Panel
HT-280 Refrigeration Unit for Small Vans with Corrosion Resistant FRP Canning, R404A Refrigerant, and Digital Display Control Panel
HT-280 Refrigeration Unit for Small Vans with Corrosion Resistant FRP Canning, R404A Refrigerant, and Digital Display Control Panel
HT-280 Refrigeration Unit for Small Vans with Corrosion Resistant FRP Canning, R404A Refrigerant, and Digital Display Control Panel
Specifications
Box Volume :
≤ 8m³
MOQ :
1PCS
Applicable Temperature :
-25℃ ~ +25℃
Refrigerant Charge :
0.9 Kg
Price :
negotiation
Packaging Details :
WOODEN CASE/CARTOON
Certification :
CE/ISO
Evaporator Dimensions :
910×570×210 mm
Place of Origin :
CHINA
Supply Ability :
1000
Brand Name :
YINHUASHENG
Delivery Time :
20
Cooling Capacity :
2350 W at 0℃, 1330 W at -18℃
Compressor Displacement :
138 CC
Model Number :
HT-280
Payment Terms :
L/C,T/T
Description
HT-280 Refrigeration Unit for Refrigerated Truck Cold Chain
Product Overview

The HT-280 Engine Directive Driven Small Van Refrigeration Unit delivers maximum airflow for efficient cooling in small van applications. Designed to utilize vehicle engine power, this unit ensures proper temperature control and air circulation within confined cargo spaces. The optimized airflow rate provides effective cooling performance while accommodating the size and capacity limitations of small van refrigeration systems.

Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser - lightweight and compact with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and enhanced coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance
  • Hot gas automatic defrost system
Technical Specifications
Parameter Specification
Unit Model HT-280
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤ 8m³
Cooling Capacity at 0℃ 2350 W
Cooling Capacity at -18℃ 1330 W
Compressor Model 5H14
Compressor Displacement 138 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 2 PCS
Condenser Material Parallel flow condenser
Condenser Fans 1 PCS
Refrigerant R404a
Refrigerant Charge 0.9 Kg
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Evaporator Weight 15 Kg
Condenser Weight 19 Kg
Evaporator Dimensions 910×570×210 mm
Condenser Dimensions 860×500×250 mm
Drive Model Non-independent engine driven
Product Images
HT-280 Refrigeration Unit for Small Vans with Corrosion Resistant FRP Canning, R404A Refrigerant, and Digital Display Control Panel
HT-280 Refrigeration Unit for Small Vans with Corrosion Resistant FRP Canning, R404A Refrigerant, and Digital Display Control Panel
HT-280 Refrigeration Unit for Small Vans with Corrosion Resistant FRP Canning, R404A Refrigerant, and Digital Display Control Panel
For precise details regarding maximum airflow rates and specific model specifications, please consult the product documentation or contact the manufacturer directly.
