EV-200J Energy-Saving Electric Refrigeration Unit with IP67 Waterproof Design and 1650W Cooling Capacity for NEV Trucks
EV-200J Energy-Saving Electric Refrigeration Unit with IP67 Waterproof Design and 1650W Cooling Capacity for NEV Trucks
EV-200J Energy-Saving Electric Refrigeration Unit with IP67 Waterproof Design and 1650W Cooling Capacity for NEV Trucks
EV-200J Energy-Saving Electric Refrigeration Unit with IP67 Waterproof Design and 1650W Cooling Capacity for NEV Trucks
Specifications
Brand Name :
YINHUASHENG
Model Number :
EV-200J
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C,T/T
Supply Ability :
1000
Delivery Time :
20
Packaging Details :
WOODEN CASE/CARTOON
Cooling Capacity :
1650 W (at 0℃), 960 W (at -20℃)
Compressor Model :
145
Compressor Voltage :
DC 12/24V
Refrigerant Type :
R404a
Evaporator Dimensions :
780*580*210 (mm)
Condenser Dimensions :
890*720*207 (mm)
Description
EV-200J Energy-Saving Electric Refrigeration Unit for NEV Trucks
EV-200J Full Electric Refrigeration Unit For NEV Full Electric Truck | Energy-Saving
Product Overview
Powered by the vehicle battery, our EV-200J unit is specially designed for NEV (New Energy Vehicle) full electric trucks. It is widely used for reefer truck boxes with a volume of 4-8m³, ideal for transporting chilled & frozen foods, medical supplies, fruits, vegetables and other items that require strict temperature control. Yinhuasheng units are the preferred choice for customers who pursue durability, reliability, low operational costs and handling charges, featuring energy-saving and eco-friendly performance that aligns with the green transportation trend.
Standard Features
  • Applicable for small and medium-sized new energy vehicles, perfectly matching the use needs of NEV full electric trucks
  • High-grade (IP67) waterproof and insulation design with AC-DC interlock and four-in-one integrated design
  • Ultra-slim evaporator or aluminum alloy evaporator with large air flow for rapid and uniform cooling
  • Fully enclosed electric compressor: high efficiency, eco-friendly, energy-saving, and not affected by vehicle speed
  • Compact design with compressor built inside the condenser unit, saving installation space
  • Multi-functional LCD controller with precise temperature control, full data display and fault code prompt
  • No interference between vehicle charging and unit operation, extending battery service life
  • HP (High Pressure) and LP (Low Pressure) switch safety protection
  • Standard AC220V standby function supporting parking cooling
Technical Parameters
Parameter Specification
Unit Model EV-200J
Applicable Temperature -25℃ ~ +25℃
Box Volume 4-8m³ (≤8m³)
Cooling Capacity 1650 W (at 0℃)
960 W (at -20℃)
Compressor Model: 145
Air Displacement: 14.5 CC
Evaporator Material: Inner grooved copper tube
Evaporative Air Volume: 950 m³/h
Condenser Material: Parallel flow condenser
Number of Fans: 1 PCS
Compressor Voltage DC 12/24V
Low Voltage Power DC-DC
Control Voltage DC 12/24V
Refrigerant R404a
Refrigerant Charge 0.95 KG
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight Evaporator: 13 KG
Condenser: 47 KG
Dimensions Evaporator: 780*580*210 (mm)
Condenser: 890*720*207 (mm)
Drive Model Full electric driven

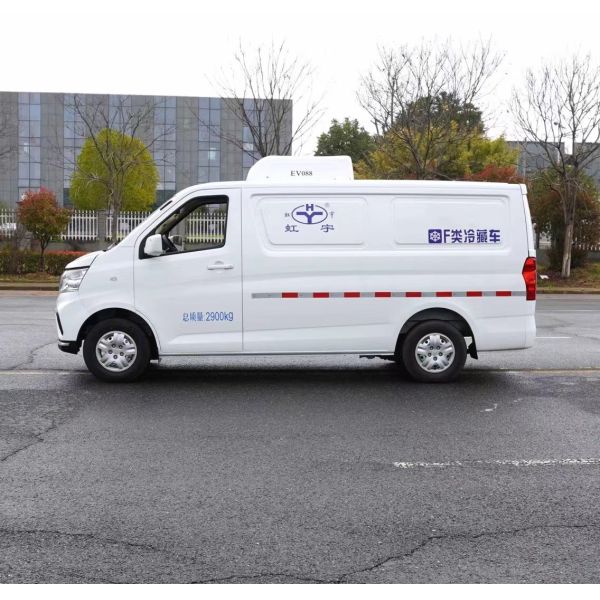

Product Pictures
EV-200J Energy-Saving Electric Refrigeration Unit with IP67 Waterproof Design and 1650W Cooling Capacity for NEV Trucks
Installation Drawing
EV-200J Energy-Saving Electric Refrigeration Unit with IP67 Waterproof Design and 1650W Cooling Capacity for NEV Trucks
