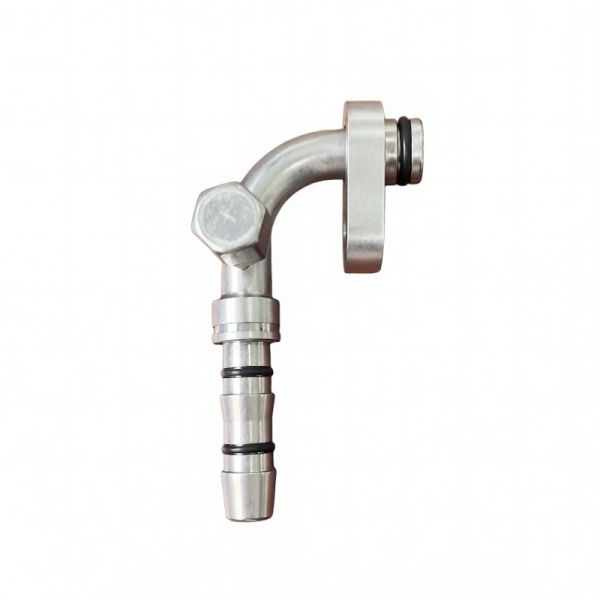

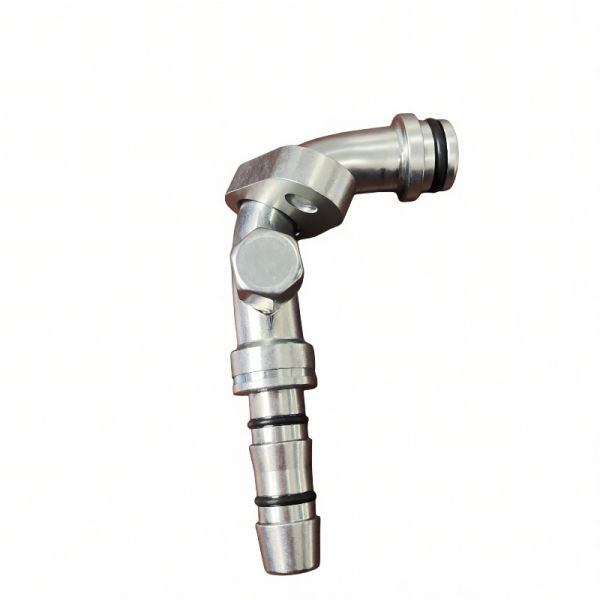

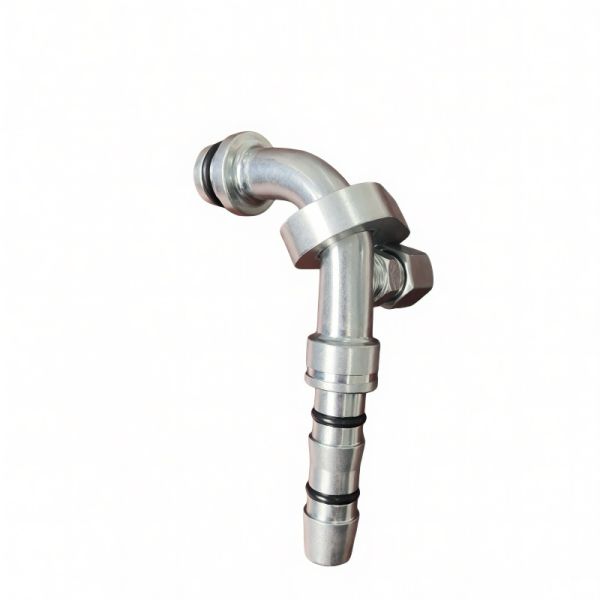

JM Eco-Friendly Flange 5-Point 90° Elbow Tube Fitting with Side Service Valve | Refrigeration Hose Connector
JM Eco-Friendly Flange 5-Point 90° Elbow Tube Fitting with Side Service Valve | Refrigeration Hose Connector
JM Eco-Friendly Flange 5-Point 90° Elbow Tube Fitting with Side Service Valve | Refrigeration Hose Connector
JM Eco-Friendly Flange 5-Point 90° Elbow Tube Fitting with Side Service Valve | Refrigeration Hose Connector
JM Eco-Friendly Flange 5-Point 90° Elbow Tube Fitting with Side Service Valve | Refrigeration Hose Connector
JM Eco-Friendly Flange 5-Point 90° Elbow Tube Fitting with Side Service Valve | Refrigeration Hose Connector
Specifications
Brand Name :
YINHUASHENG
Model Number :
JM5-90-020A
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C,T/T
Supply Ability :
1000
Delivery Time :
20
Packaging Details :
CARTOON/WOODEN CAGE
Model :
JM Eco-Friendly Flange 5-Point 90° Elbow (Side Valve)
Size :
5-Point (DN12 / 5/8" equivalent)
Connection Type :
OR Hose End + JM Eco-Friendly Flange
Valve Position :
Side-mounted (for convenient access)
Angle :
90° Elbow
Compatible Fluids :
R404a
Application :
Refrigerated Trucks, Container Units, Commercial Refrigeration
Description
JM Eco-Friendly Flange 5-Point 90° Elbow Tube Fitting with Side Service Valve
Refrigeration Hose Connector designed for optimal performance in demanding cold chain applications.
Product Overview
This high-performance pipeline fitting is engineered specifically for refrigeration and cold chain applications. It features a unique side-mounted service valve for easy access in confined engine compartments, combined with a robust flange mounting plate for stable, vibration-resistant installation. This fitting serves as a critical connection point between flexible hoses and core refrigeration components including compressors, oil separators, and receivers, ensuring optimal flow and leak-proof performance.
Key Features
  • JM Eco-Friendly Flange Design: Meets global environmental standards for safe refrigerant system operation
  • 5-Point Size & 90° Elbow Structure: Optimized for routing hoses in narrow spaces, reducing installation complexity
  • Side-Mounted Service Valve: Convenient access for refrigerant charging, pressure testing, and maintenance
  • Integrated Mounting Bracket: Eliminates need for additional brackets, ensuring secure fixation against vibration
  • High-Strength Metal Construction: Resists corrosion, high pressure, and wear for long service life
  • Dual O-Ring Sealing: Prevents refrigerant leakage under extreme temperature and pressure fluctuations
  • Precision Machining: Smooth internal bore minimizes flow resistance and pressure loss
Technical Specifications
Model JM Eco-Friendly Flange 5-Point 90° Elbow (Side Valve)
Size 5-Point (DN12 / 5/8" equivalent)
Connection Type OR Hose End + JM Eco-Friendly Flange
Valve Position Side-mounted for convenient access
Angle 90° Elbow
Material High-Grade Steel (Zinc-plated)
Sealing Dual O-Ring (EPDM/NBR) + Flange Gasket
Compatible Fluids R404a
Application Refrigerated Trucks, Container Units, Commercial Refrigeration
Applications
  • Transport Refrigeration: Connects hoses to compressors and oil separators in refrigerated trucks and trailers
  • Cold Chain Logistics: Essential for maintaining temperature integrity in food, pharmaceutical, and frozen goods transport
  • Industrial & Commercial Refrigeration: Suitable for walk-in coolers, freezers, and HVAC systems
  • Mobile Refrigeration Units: Designed to withstand road vibrations and extreme operating environments
