HT-1390 Truck Lorry Refrigeration Unit Installation R134a Refrigerant
HT-1390 Truck Lorry Refrigeration Unit Installation R134a Refrigerant
HT-1390 Truck Lorry Refrigeration Unit Installation R134a Refrigerant
HT-1390 Truck Lorry Refrigeration Unit Installation R134a Refrigerant
HT-1390 Truck Lorry Refrigeration Unit Installation R134a Refrigerant
HT-1390 Truck Lorry Refrigeration Unit Installation R134a Refrigerant
Specifications
Brand Name :
Yinhuasheng/OEM
Place of Origin :
China
Certification :
CE
MOQ :
1SET
Price :
Negotiable
Packaging Details :
Customized packaging
Delivery Time :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Model Number :
HT-1390
Model :
HT-1390
Temperature Range :
-25°C To +25°C
Cooling Capacity(0℃) :
11500W
Cooling Capacity(-18℃) :
6300W
Application Box Volume :
≤60 m3
Outside Temperature :
30°C To 50 °C
Compressor Brand :
Jianshe
Compressor Mode :
JS38
Compressor Displacement :
380 CC
Description

1. Direct engine drive.

2. Driven by vehicle engine, this is designed for 40m³ refrigerated trucks, to deliver the chill & frozen foods, medicals, fruits, vegetables, ice cube, sea foods, etc.

3. OEM customized service are avaliable.

4. Low operational cost and service cost.

5.Easily installation.

6.Suitable for long distance transportation.

Features:

► Eco-friendly refrigerant R404A(R134a system is also avalible).

►Corrosion resistant and high strength FRP canning material.

► Aluminium fin parallel flow condenser, light and compact, with good heat exchanging.

► Inner grooved copper tube,with strong evaporator, with large airflow and good protection to the evaporator coils.

► Strong reliable and stable compressor for R404a systems specially.

► Digital display control panel,minimal operation.

► HP and LP switch safety protection.

► Large cooling capacity, reliable performance.

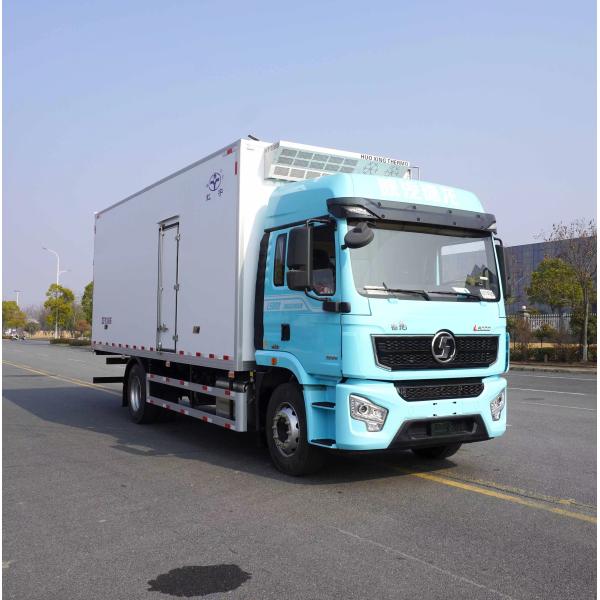

Product Pictures:

HT-1390 Truck Lorry Refrigeration Unit Installation R134a Refrigerant

HT-1390 Truck Lorry Refrigeration Unit Installation R134a Refrigerant

HT-1390 Truck Lorry Refrigeration Unit Installation R134a Refrigerant

Technical Parameters:

Unit Model HT-1390
Applicable Temperature(℃) _25℃ ~ +25℃
Box Volume (m³) ≤60m³

Cooling Capacity

(W)

 0℃/+30℃ 11500 W
-18℃/+30℃ 6300 W
Compressor Model JS38/QP31
CC 380/313 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Number of Fans 3 PCS

Condenser

 Material Parallel flow condenser
Number of Fans 3 PCS
Refrigerant R404a
Refrigerant Charge 4.8KG
Box Temperature Adjustment Electronic digital display
Safety Protect High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator 43 KG
Condenser 65 KG
Evaporator 1510*670*350
Condenser 1920*410*400
Drive Model Non-independent engine driven
