10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery
Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW-M1014AW
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,China
MOQ :
5 pcs
Price :
negotiated
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
50,00pcs per month;
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Product Name :
10.1"inch AHD High Definition Wireless Rearview System
Function :
Wireless,Shockproof,Waterproof,Night View,Wide Angle
Video input :
4 ways 2.4G wireless video signal inputs
Camera :
Wireless Camera
Color :
Ferrous Metal
2.4G in open area :
100M
Screen Type :
16:9
Screen Size :
10.1 Inch
Warranty :
18 Months
Power supply :
DC 12V-24V
Description

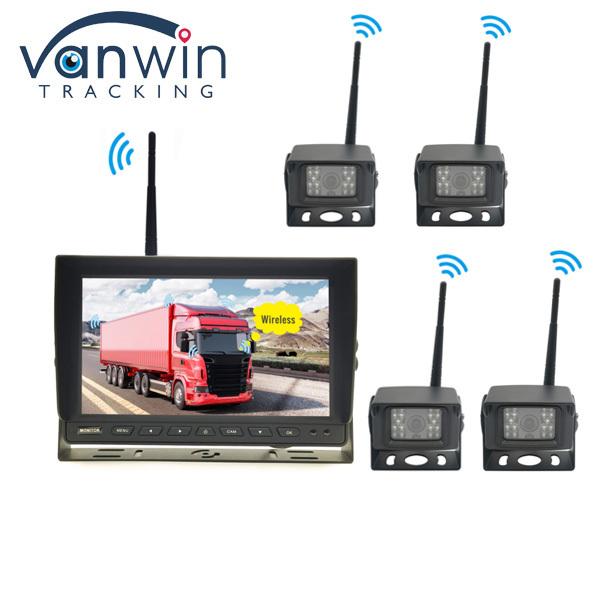

10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery

Vanwin agricultural wireless camera system is an advanced safety solution designed specifically for the agricultural sector. Featuring a 1/2.9 CMOS sensor and 720P wireless 2.4G technology, this system provides clear real-time monitoring. With wide voltage support (12V-24V), it adapts seamlessly to various agricultural machinery. The good night vision camera ensures visibility in low or no light conditions, while the IP68 waterproof rating guarantees reliability in tough environments. Offering optional magnetic or non-magnetic installation, the system simplifies setup for convenience. This solution enhances farm safety and efficiency, aiding agricultural operators in managing production effortlessly.

Main Features:

  • 10.1"inch AHD High Definition Wireless Rearview System (Digital Wireless)
  • Resolution:1024*R.G.B*600Brightness:LED,500-650cd/㎡
  • View angle: L/R:85°,UP:85°,down:85° degree
  • 4 ways 2.4G wireless video signal inputs,support 4*1080P@25/30
  • 2.4G in open area:100M
  • Image sensor:1/3" 1.0MP CMOS Sensor 2.8MM
  • Effective Pixel:NTSC/PAL 1920(H)*1080(V) 200W
  • Miminum illumination:05.lux
  • CDS night version change:Change to black and white image automatically in the night
  • image angle:100°
  • Power supply :12V~24V
  • Water proof class :IP68
  • Aluminum alloy shell, outside hanging design
  • Watrproof .shockproof,infrared night vision, Resistance to high temperature and humidity
  • 1/2//4 images display adjustable (optional)

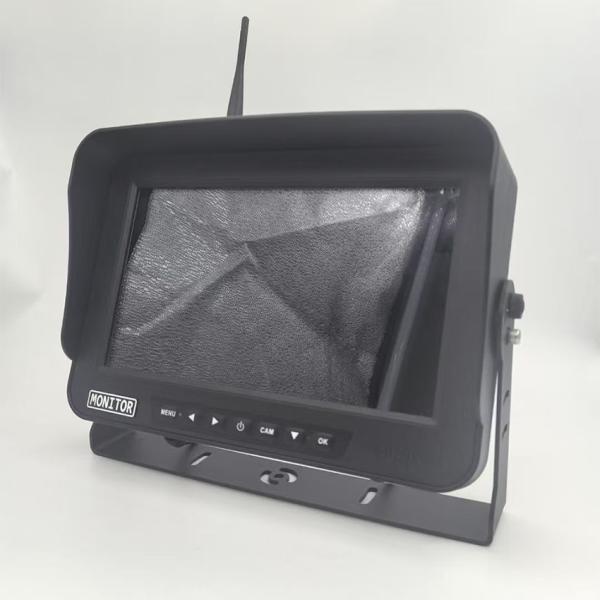

Specification For 10.1 Inch Wireless Monitor:
Items
10.1 Inch HD 1024X600 Wireless Monitor
Display
16:9
Resolution
1024*600
Contrast
500:1
Brightness
400cd/m2
Video Input
4 way wireless video
Current Consumption
500mA
Power Consumption
5W
Power
12V-24V
Interface
DC
Ambient Temperature
-20℃-65℃
Operating Temperature
-10℃-50℃

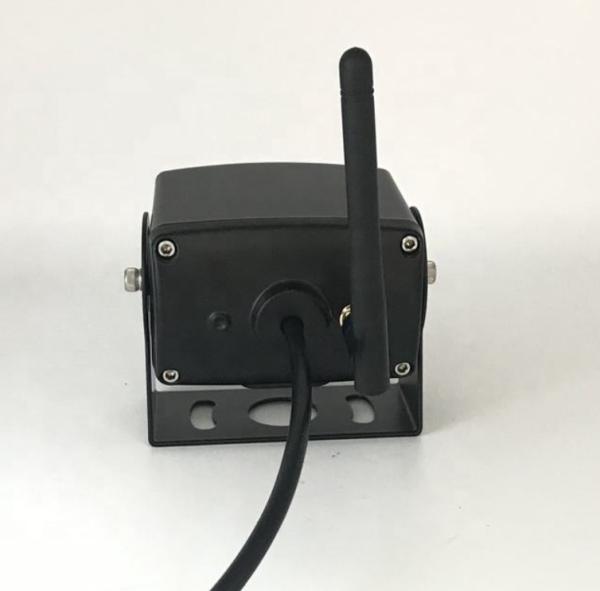

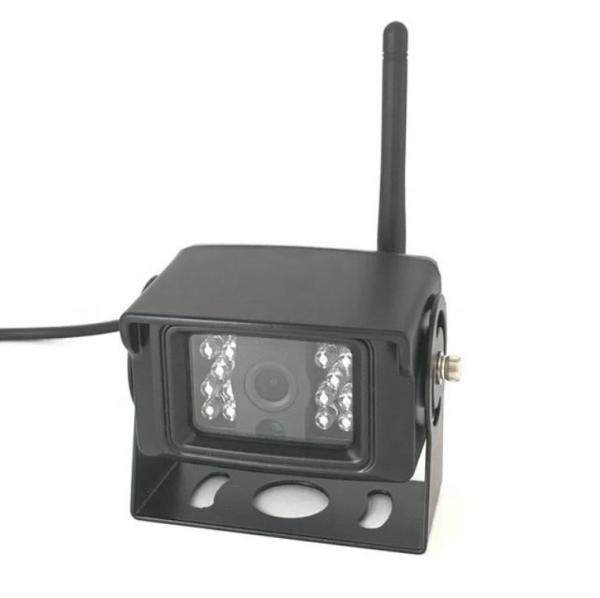

Specification For Wireless Camera
Wireless Camera Built-in 2.4GHz Video Transmitter
Image Sensors
IR Color CCD
Transmitter Frequency
ISM 2,400 MHz~2,483 MHz
Transmission Distance
100m at empty place
TV System
PAL(NTSC optional)
Waterproof Rate
Ip68
Effective Pixels
1280X720p
Resolution
1MP
Pin Lens
f=2.8mm/F=2.0
Lens Angle
90°-120°IR Leds:18Pcs
Vertical Sync
Frequency 50Hz/60Hz
Video output
wireless, 1.0Vp-p, 75ohm
Power Supply
DC12V-24V
Current Consumption
300mA
Operating Temperature
-10- +55°C, RH95%MAX
Storage Temperature
-20-- +65°C, RH95%MAX

10.1 inch 4ch wireless AHD night vision camera system for agricultural machinery

  1. FQA

    Q1. What is included in the kit?
    The kit includes a 5-inch wireless monitor, one or two wireless cameras, a power adapter, mounting brackets, and an instruction manual.

    Q2. Is the camera weatherproof?
    Yes, the camera is designed to be weatherproof, making it suitable for outdoor use.

    Q3. How far can the wireless signal reach?
    The wireless signal can typically reach up to 100 meters (328 feet) in open areas, depending on environmental conditions.

    Q4. Can I connect multiple cameras to the monitor?
    Yes, the monitor supports multiple camera connections, allowing you to switch between different camera views.

    Q5. Is the monitor rechargeable?
    The monitor requires a continuous power supply via the included adapter; it is not rechargeable.

    Q6. Does the kit come with a warranty?
    Yes, the kit usually comes with a one-year manufacturer's warranty covering defects in materials and workmanship.

    Q7. How do I install the cameras?
    The cameras can be easily mounted using the provided brackets, and the installation process is detailed in the instruction manual.

    Q8. Can I use the monitor with other camera brands?
    The monitor is designed to work specifically with the included cameras. Compatibility with other brands may vary.

    Q9. Is night vision available?
    Yes, the cameras are equipped with infrared night vision capabilities for clear viewing in low-light conditions.

    Q10. How do I troubleshoot if the signal is weak?
    Ensure that there are no obstructions between the camera and monitor, and check for any interference from other electronic devices. Adjusting the camera's position may also help improve the signal.
