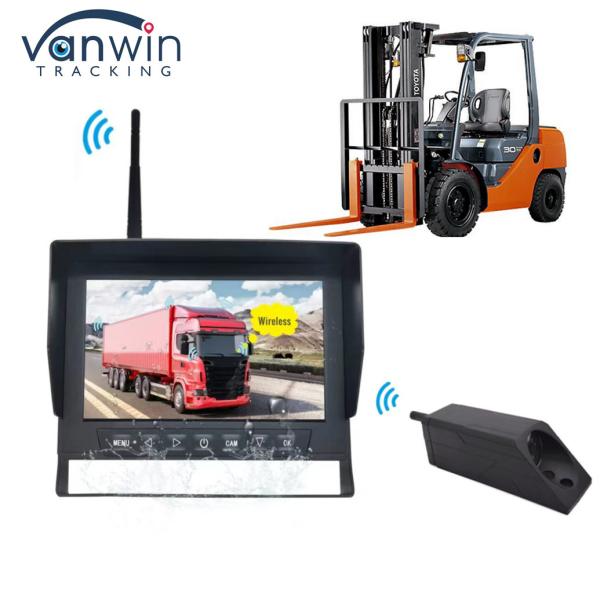

7inch Wireless AHD Waterproof Monitor with wireless waterproof camera Kit for Forklift Truck

Wireless Reversing camera kit Highlights

• 100% Adaptive Wide Voltage: Flexible vehicle compatibility support wide voltage 9~36V, supports almost all vehicle power supply voltage.
• Super Long Transmission Distance: Adopted 2.4G digital wireless technologies, embedded processor and operating system, low power consumption, no radiation, flicker-free and clear image. Non-interference Non-delay transmission in the long distance of 328ft.
• Multiple Installation Methods: We provide three installation methods of this backup camera system, absorption on the windscreen and fixing on the center console, both of which can be installed hands-on with some simple tools.

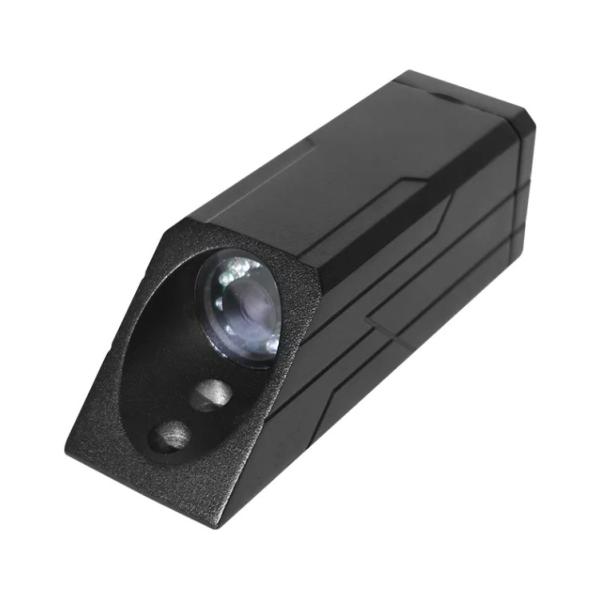

• Night Vision and Waterproof Design: This wireless backup camera is designed with 18 Infrared LEDs, night vision wireless backup camera performs well at night, aluminum alloy material shell and outside hanging design, it has anti-vibration and anti-corrosion anti-weather ability, make it suitable for different environments.
• Super Wide Visual Range: The backup camera and monitor can be adjusted in angle up and down, and the camera of reversing has a visual wide angle in more than 120-degree, which can solve your problem of reversing rear-view perfectly.

Main Specification

7" inch AHD High Definition Wireless Rearview System (Digital Wireless)
Resolution:1024*R.G.B*600
Brightness:LED,500-650cd/
View angle: L/R:85°,UP:85°,down:85° degree
1 way 2.4G wireless video signal input,support 720P@25/30
2.4G in open area:200M
Image sensor:1/3" 1.0MP CMOS Sensor 2.8MM
Effective Pixel:NTSC/PAL 1280(H)*720(V) 1.0M
Miminum illumination:05.lux
CDS night version change:Change to black and white image automatically in the night
image angle:120°
Power supply :12V~24V
Water proof class :IP67
Aluminum alloy shell, outside hanging design
Watrproof .shockproof,infrared night vision, Resistance to high temperature and humidity
1/2//4 images display adjustable (optional)

The charact-eristicof 2.4G digtal wireless: Highiy secure, use the digital code receiver technology ,
will not be affected by other similar equipment interference or to interfere with other equipment,
the image of good stability, there will have a delay, but does not affect the normal revesing image.

Pictures

Package includes:
1 * User Manual
2 * Short Antenna
1 * Remote Control
1 * U-shaped Bracket / 1 * Suction Cup Bracket
1 * Wireless backup monitor
1 * Wireless backup Camera
1 * Antenna Extension Cable
1 * DC 5.5 Power Cable for Camera
