Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Specifications
Brand Name :
Vanwin
Model Number :
VW-9304AGS
Certification :
CE/FCC/RoHS
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiated
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
50,000pcs per month
Delivery Time :
2-3 days for samples,15-30 days for bulk orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Type :
AI MDVR
System :
PAL / NTSC
Sensor :
Hisilicon
Function :
ADAS+DMS+BSD
Material :
Metal
Connector :
RCA / 4PIN
Temperature :
-20 ~ 70 ℃
Application :
Automotive Universal Car Models
Description

4 Channel AI MDVR with GPS Vehicle Tracker Blind Spot Detection

Vehicle Mounted Hard Disk Recorder

Advanced AI video recorders can be equipped with the following functions
Advanced Driver Assistance Systems (ADAS): The forward-looking camera detects the vehicle/pedestrian in front of it, calculates the collision risk, and sends an audible and visual alarm 1.5-2 seconds in advance to reduce the probability of rear-end collision. Identify lane deviation behavior and remind the driver to correct the direction, especially for long-distance driving fatigue scenarios.
Blind spot monitoring (BSD): Detect blind spot vehicles in the rear side by radar or camera, and reduce scratch accidents by rearview mirror indicator or buzzer when changing lanes (measured can reduce the lane change accident rate by 15%).
Driver Behavior Management (DMS): Based on facial recognition technology, it can detect eye closing time, yawn frequency, head posture, etc., and judge tired driving (accuracy rate > 90%); They also monitor distracting behaviors such as smoking and talking on the phone.
4 Channel AI MDVR Specification
Audio and Video Inputs
video input
AHD:4ch 1080/25fps
IPC:Scalable 1-4ch
audio input
4ch audio iuput
Audio and Video outputs
video output
Default 1-way CVBS output (VGA output optional)
speech output
1ch audio output
Audio and video parameter coding
video coding
H.264 Main Profile/H.265
· Resolution
1080P/720P/D1 optional
audio coding
Default G.726,G.711A optional
storage space
HDD
1 2.5-inch optional: SSD/HDD hard disk
SD
Support 1 SD card
wireless network
4G
Supports 1 SIM card, optional: all major communication modules in the world
WIFI
2.4/5.8G optional
locate mode
BD/GPS
Support for mixed positioning, speed detection, time synchronization
interface
USB
USB2.0 interface, support export data, external engineering treasure
serial port
Support 1 RS232, 1 RS485, can be connected with external sensor
I/O
4 level inputs, 2 analog inputs, 2 alarm outputs
network interface
Support external IPC, support hybrid NVR function
Intercom
1 special intercom handheld mark interface
work environment
operating temperature
-20〜+70℃
operating humidity
-8%〜90%(No condensation)
Other
operator schema
remote control,APP,WEB
· Gravity sensor
Built-in G-Sensor
Configurable AI algorithms
Face recognition,eople Counting

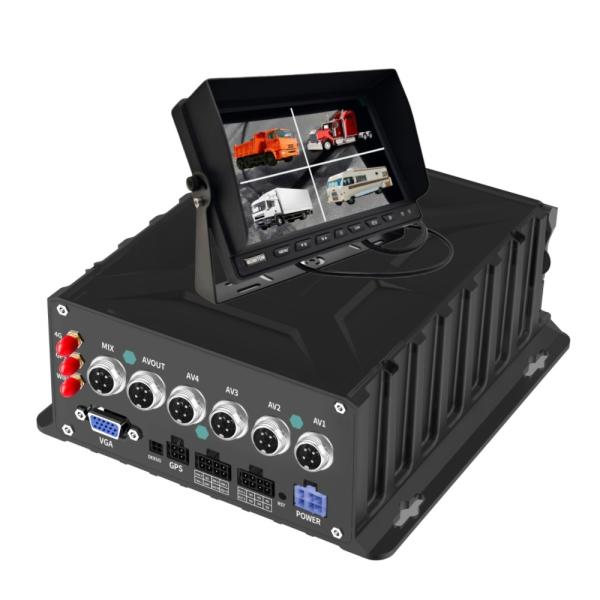

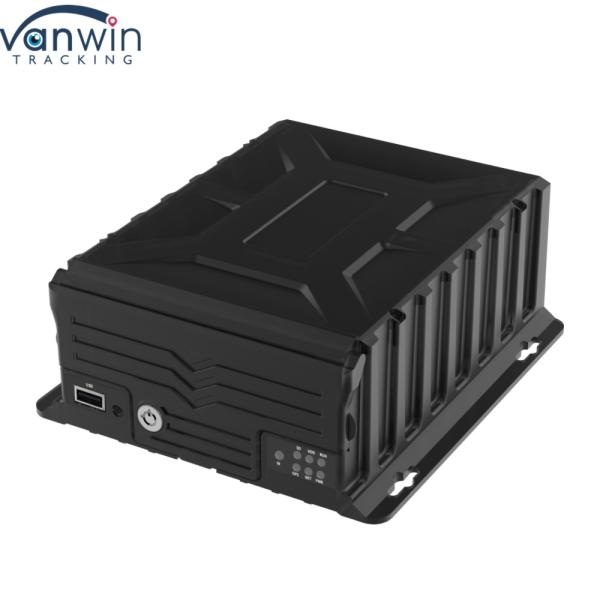

4 Channel AI MDVR Product Pictures
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Versatile 4 Channel Mobile DVR with ADAS BSD DMS Function Advanced Driver Assistance Systems
Why choose us?

We are a one-stop provider of vehicle-mounted monitoring systems dedicated to addressing vehicle safety, with fifteen years of professional experience. Our products comprehensively cover vehicle recorders, monitors, vehicle cameras, dash cams, and various expansion devices like fuel sensors, temperature sensors, fireproof boxes, alarms, tire pressure sensors and so on. We have provided customized solutions for hundreds of different customers in various application scenarios around the world, earning unanimous praise from our clients. We always uphold a sincere, kind, and enthusiastic service attitude, considering all aspects for our customers and bringing them value far beyond the products themselves.

FAQ
Q1: Are you a manufacturer or trading company?
A: We are a certified manufacturer with integrated operations encompassing R&D, industrial design, production, global sales distribution, and dedicated after-sales service centers.
Q2: Do you offer technical support services?
A: Our technical team provides comprehensive support throughout the product lifecycle, including:
* Pre-sales consultation & solution design
* On-site installation guidance (optional)
* Post-purchase troubleshooting & optimization
* Regular firmware updates
Q3: Which control platform do you use? Is there additional licensing cost?
A: Our proprietary CMSV6 platform features:
✓ Free perpetual license with device purchase
✓ Cloud-based remote management capabilities
✓ Multi-layer cybersecurity certification
Note: Activation code will be provisioned upon equipment delivery.
Q4: How to obtain competitive pricing?
A: We offer flexible commercial terms: • Volume discounts for orders exceeding 50 units • Customized quotations for OEM/ODM projects • Long-term partnership incentives Pro Tip: Submit your technical specifications and annual procurement plan for optimized pricing.
