10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen
10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen
10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen
10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen
10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen
10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen
10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen
10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen
Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW1016AHD
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,China
MOQ :
5PCS
Price :
negotiated
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
50,000pcs per month;
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Product Name :
AHD10.1 inch display screen
Product Performance :
Vehicle monitoring display
Number of Trigger and display :
2 ways Trig functionTrigger priority:V2>V1
DVR image quality（Optional） :
DVR recording 2 channels video signal, AHDresolution：1280*720P,
Video storage（Optional） :
SD high-speed card, maximum support256G
Compatible system :
NTSC & PAL (automatically)
OSD control :
Color, Brightness, Contrast, Volume, Language (English, Chinese)
Power requirement :
Input 9V-36DC/output，12V
Description

10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen

AHD Display Screen Product Introduction:

This car mounted 10 inch display screen 6-way split screen display provides drivers and passengers

with a more convenient and safe car display solution with its advanced split screen technology,

user-defined functions, and excellent user experience.


With the continuous increase in the size of automotive LCD screens, split screen display technology is also

constantly developing. The future trend is for display sizes to become larger and clearer, and the functionality

of partition blocks and screens will meet future needs.


Vehicle mounted split screen display device: including split screen task issuing module, processing module,

control module, interface module, storage module, and display module. Users can enable split screen tasks

through the interface and set split screen display modes, including the number of partitions and partition display information.


Video signal processing: the processing module will retrieve the corresponding external video from the storage

module according to the partition display information set by the user, synchronize the external video frame rate

with the vehicle frame rate, and send the synchronized external video frame image to the control module in real time.


Video stream synthesis: The control module combines and splices the external video frame images sent by the processing

module with the interface of the vehicle application system to generate new video frame images, and synthesizes them into

a new video stream, which is sent to the display module.


Multi tasking: While receiving external information, it does not affect the use of the vehicle's functions.

Users can operate the system simultaneously to meet their respective functional requirements.


Safety improvement: Split screen display can ensure that drivers will not be distracted by the central display,

do not interfere with each other, and improve driving safety.

AHD Display Screen Parameter Table:

Specifications Model number: LA-1016DV
Screen Ratio 10.1"-inch High Defintion Double Recording Dispiay

Back Light Luminance

/Resolution

View angle(standard)

 LED500cd/㎡ /1024xRGBx600/Hor. L/ R(85 )Ver. UP/DOWN(85)
AV Inputs Two-channel AHD video input,adjustable display of single and two-segment images and picture-in-picture images Full images/2 images adjustable ,Support AHD720P/960P/1080P and CVBS multi-video hybrid input
Audio Input Built-in speaker,1 way audio input(V1)
Number of Trigger and display 2 ways Trig functionTrigger priority:V2>V1
DVR image quality(Optional)

DVR recording 2 channels video signal,

AHDresolution:1280*720P,
Video storage(Optional) SD high-speed card, maximum support256G
Compatible system NTSC & PAL (automatically)
OSD control

Color, Brightness, Contrast, Volume, Language

(English, Chinese)
Power requirement Input 9V-36DC/output,12V
Power consumption <10W
Working temperature -20℃ to 70℃
Storage temperature -30℃ to 80℃
Size 257*170*33(82)mm(1016A)
Exterior color Black rubber oiling,The key blue light,
Montior And Camera Connector RCA/ 4pin connector (Optional)
Accessories Remote controller, Power supply cable , User manual, Metal U type bracket

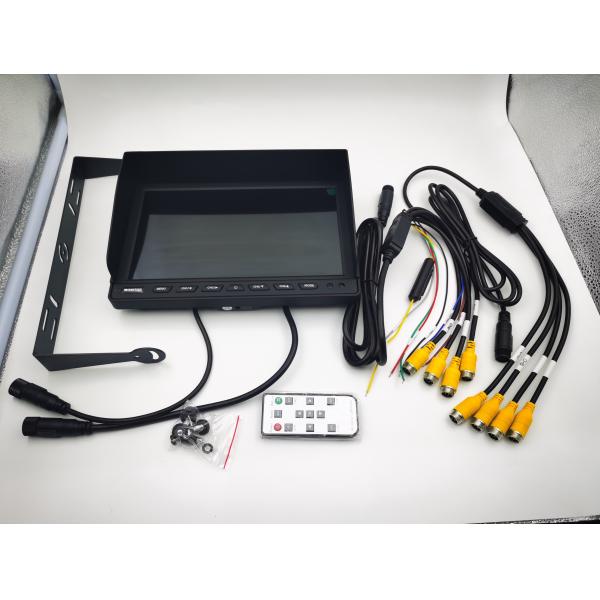

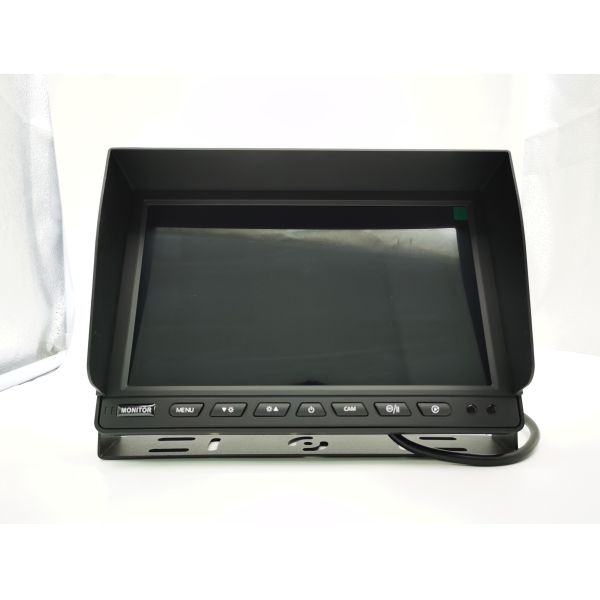

AHD display screen real-life display picture:

10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen

10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen

10.1 Inch AHD Quadripation Monitor Onboard Monitoring Display Screen

FQA:

1. Can you provide technical support?

Yes, we can provide professional technical support before and after sales.

2. What is your main product?
Specializing in the design and development of intelligent and safe assisted driving, car video image Internet of Things, car electronic products, short-range remote monitoring recorders, cameras, LCD screens, etc.
3. Is your product certified?
Yes, there are CE, ROHS and FCC. If you need other certificates, we will try our best to provide them for our sincere customers.
4. Does your company have patented products?
Yes, there are several appearance patents, etc.
