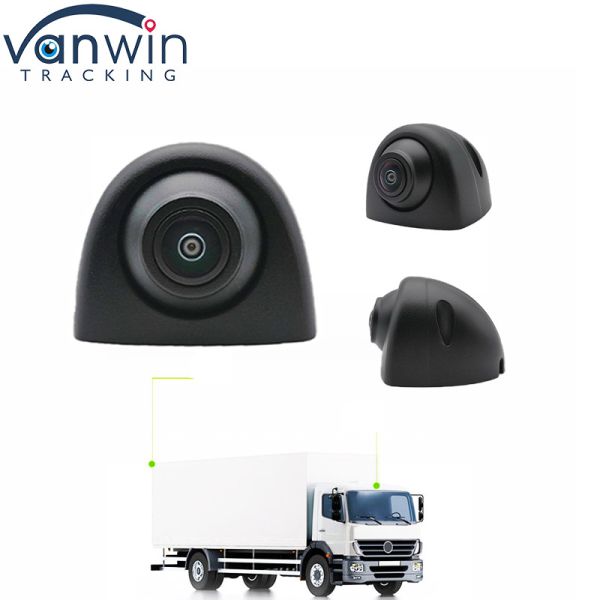

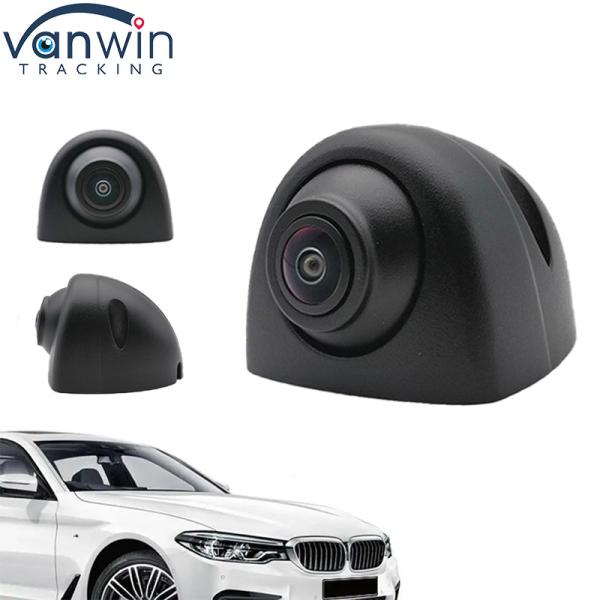

AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
Specifications
Scanning mode :
Interlaced scanning
Power consumption :
≤3.5W
IR distance :
≤8 meters
TV system :
PAL/NTSC
Lens :
2.1mm/2.8mm/3.6mm/6mm /other optional
IR leds QtyIR leds Qty :
12pcs LEDs
Warranty :
1 year
White balance :
AUTO
Certification :
CE/FCC/RoHS
Brand Name :
Vanwin Tracking
Model Number :
VW361
Place of Origin :
Shenzhen,China
MOQ :
5pcs
Price :
negotiated
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
5,0000 pcs per month
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Description

AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera

Product Parameters:

Technical Parameters
Image sensor 1/3" SONY CCD 1/3" CMOS
Horizontal resolution 700TV Line 800TV Line
TV system PAL/NTSC PAL/NTSC
Effective pixel PAL: 976(H) x 582(V)；NTSC: 976(H) x 494(V) 960(H)*576(V)
Minimum illumination Color 0.1Lux,0 Lux with IR Color 0.1Lux,0 Lux with IR
S/N ratio ≥46dB ≥52dB
Day/Night mode Automatic color to black and white EXT(default),AUTO,COLOR,B/W,Support IR CUT switching
Auto Gain Control AUTO
Backlight compensation AUTO
White balance AUTO
Scanning mode Interlaced scanning
Electronic shutter AUTO/1/50(1/60)-1(100,000Sec)
Video output CVBS 1.0V p-p Composite Output 75ohm
Lens 2.1mm/2.8mm/3.6mm/6mm /other optional
IR leds Qty 12pcs LEDs
IR distance ≤8 meters
Waterproof grade IP68
Operating temp. -20°C~+70°C
Power supply DC12V±10%
Power consumption ≤3.5W

AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera

AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera

AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera

Why you choose us Vanwin Tracking?

Shenzhen Vanwin Tracking Co.,Ltd. is one high-tech industry specializing in R&D ,production,sales of vehicle video monitoring system, GPS monitoring kits, intellectual public transit dispatcher`s monitoring system ,video people counter and various customized solutions for 16 years.

1.Our Mission

Make drivers safe, make vehicles safe, make passengers safe, make thousands of families safe and benefit mankind with our best items&service.

2.Complete Solution

We provide all kinds of complete security solutions for vehicles such as

buses, coaches, trucks, taxis, agricultural machinery, boats, police cars, ambulances, etc.

Our items are car camera ,car monitor, AI car dash cam recorder for taxi etc and 4ch 8ch mobile dvr series. Welcome you to browse our website below .

3. Strict testing process

A. Camera aging test

B High and low temperature test

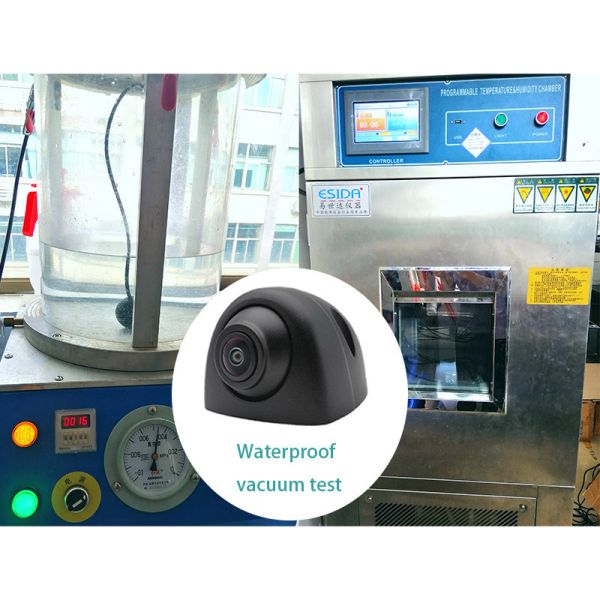

C. Waterproof vacuum test

D. Anti-vibration test

E. Salt spray test

F. Focusing technology test

FAQ

1.Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.

2.Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

PTZ camera, and so on.

4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!
