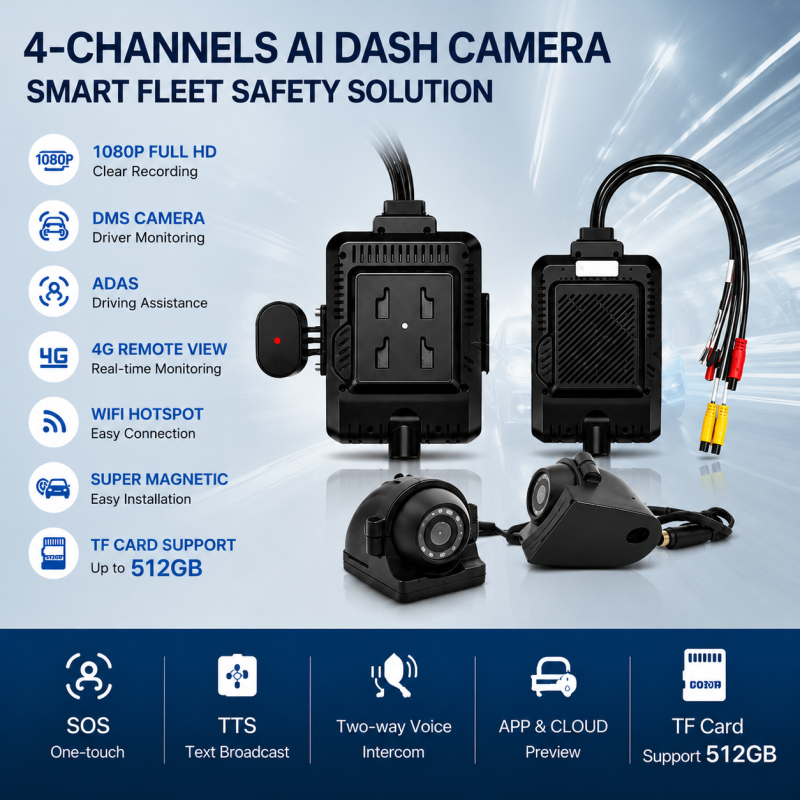

24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus
Specifications
Price :
$35-$40
4G :
Support
Mode Type :
dual lens cam recorder
Ips Touching :
Night Vision camera
Place of Origin :
Guangdong ,China
Product Features :
Invisible dual recording car camera
Connectivity :
Wi-Fi enabled
Product Name :
4CH AI Dash Cam
Material :
ABS+Aluminium
Packaging Details :
Neutral Carton Box
Supply Ability :
20000 pcs per month; 2CH WIFI car dashboard with reverse parking camera, 24 Hours Recording, HD IPS Screen
Adas/DMS :
Support
Video Inputs :
4 channels
MOQ :
1 pc
TF Card :
2~512GB
Brand Name :
Neutral
Model Number :
VW-9205
Certification :
CE/Rohs/FCC
Motion Detection :
Support
Payment Terms :
Western Union, T/T,Paypal
Lens Angel :
170 Degree + 120 Degree
Applicable Vehicles :
Universal
Loop Recording :
Yes
G-Sensor :
Built-in for collision detection
Recording Mode :
Automatic recording upon power on
Delivery Time :
1-3 days for samples ,7~15 days for bulk orders
Description

24V 4CH AI Dash Cam Kit Vehicle Security Camera DVR with DMS ADAS BSD Side Camera for Truck/Bus

Product Description:

Elevate fleet safety, simplify compliance, and close deals with a demo‑ready solution engineered for real‑world operations.

Why fleets and integrators choose it

  • Advanced AI Safety Suite — Built‑in ADAS, DMS and BSD algorithms deliver real‑time driver alerts and blind‑spot detection to reduce incidents and insurance claims.
  • High‑quality recording — Front channel 1080p + three auxiliary channels (720p), H.265 compression for efficient storage and network bandwidth.
  • Always connected — Global 4G + Wi‑Fi hotspot, GPS/BeiDou dual‑mode positioning and dual‑IP uplink for reliable telemetry and remote access.
  • Robust continuity — Super‑capacitor protected file integrity for safe shutdown and secure video preservation.
  • Practical fleet features — SOS one‑touch, TTS text announcements, two‑way voice intercom, live preview via mobile app and cloud.
  • Demo‑ready design — Magnetic BSD cameras and plug‑and‑play installation let you demonstrate safety benefits on the spot — ideal for pilots and sales meetings.
  • Flexible storage & reporting — TF card support, event upload of AI‑flagged video, remote playback and historical track replay.

Main Features:

  • H.265 & H.264 encoding and decoding,Save storage space and transmission flow；
  • Support 1-channel 1080p * 25fps + 3-channels 720p * 25fps;
  • Built in one 1080p camera and external three HD cameras for easy installation;；
  • Built in AI intelligent algorithm, which can support ADAS,DMS and BSD functions；
  • Built in GPS + Beidou dual-mode precise positioning；
  • Support 1 TF card,super capacitor double guarantees the integrity of video files；
  • Support 1 SIM card, 4G module can support global frequency band；
  • Support WiFi hotspot.
  • Support mobile app, client, preview video and parameter configuration；
  • Support 2CH IO alarm input and 2CH of RS232；
  • Built in speaker and microphone, Support voice intercom between dash camera and platform. TTS voice broadcast;
  • One key SOS emergency alarm; Support low-power sleep；
  • Special file system to improve disk reading and writing efficiency,More stable video recording；

Technical Parameters:

ITEM Technical Specifications
CPU

Dual-Core processor@1.5GHz,Total coding resources 1080p*100fps

NPU@1.0TOPS neural network acceleration engine
Memory 2Gb DDR3
Video Input Active Pixels: 1920×1080,1080×720; H.264&H.265 format
2-ch Built-in CMOS camera, Low illumination 0.01LUX
2-ch External camera, AHD 720P@25fps
Video Output Not support,Support mobile APP preview and setting
Audio input / output Built-in MIC and speaker, G.711a format
Video recording resolution 1080P/720P/D1*25fps,Simultaneous recording of sound and video.
G-Sensor Built-in 3-axis acceleration
External interface 2-ch RS232, reserved for communication with peripherals
Alarm Input 2-ch sensor input,
Positioning module Built-in GPS / Beidou Positioning Module
4G built-in 4G module,TDD-LTE, FDD-LTE
WIFI Built-in, 2.4G,802.11b/g/n,STA or AP mode
TF Card Support 1 TF card, Support 16G/32G/64G/128G/256GB/512GB
USB Micro USB interface
Upgrade TF card and OTA
AI - ADAS Lane departure, collision alarm, Distance detection, pedestrian detection etc
AI - DSM Fatigue driving detection, Smoking, call mobile phone, Occlusion, Unsafe driving behavior habit detection
AI - BSD Blind area detection
Input voltage DC:+10V ～ +36V
Power consumption Normal working state ＜ 5W (without external equipment)
Power off protection Super capacitor design, support abnormal power failure, ensure the integrity of video files
Working Temperature -25℃ to +70℃
Working relative temperature 20% to 80%
Equipment size 138mm*85mm*45mm
Net weight 0.4kg
