Specifications
Model Number :
9208
Extensive functions :
RFID, AI detect, Fuel sensor, temperature sensor,
Payment Terms :
T/T,Western Union,paypal
Basic functions :
3G, 4G, GPS, BD, WIFI, alarm
Price :
USD100-USD200
Product name :
G MDVR with Onboard Weight Sensor for Heavy-Duty Fleet Management
Supply Ability :
1000PCS/month
Applicable for vehicles :
big bus, double-decker bus, big trucks, trailers
Brand Name :
Vanwin
Product Name :
MDVR with Weight Sensor Solution for Concrete Mixer Truck Cargo Monitoring
MOQ :
1pc
Delivery Time :
3-7 working days
video inputs :
4CH or 8CH channel video inputs
Packaging Details :
Carton Box
Certification :
CE ROHS
Material :
Aluminum alloy
Place of Origin :
China
Backup :
SD+HDD
Description
Ready-Mix Concrete Logistics: MDVR with Weight Sensor Solution
Live Load Monitoring · Video Surveillance · 4G Tracking · Instant Alerts
Overview

Designed for ready-mix concrete mixer trucks, our solution integrates the VW9014/8 HDD MDVR with high-precision weight sensors to deliver real-time cargo load monitoring throughout every delivery cycle. From batching plant to pour site, fleet managers gain complete visibility over concrete volume — detecting unauthorized discharge, leakage, theft, and delivery disputes instantly.

Key Features

1. Real-Time Weight Monitoring
Continuous load measurement from loading to pouring. Detects sudden or gradual weight changes, with overload pre-alerts for safety and compliance.

2. Synchronized Video Surveillance
Supports up to 8-channel 1080P cameras with live weight data overlaid as a watermark on every frame. Event-triggered recording automatically flags abnormal weight changes for quick review.

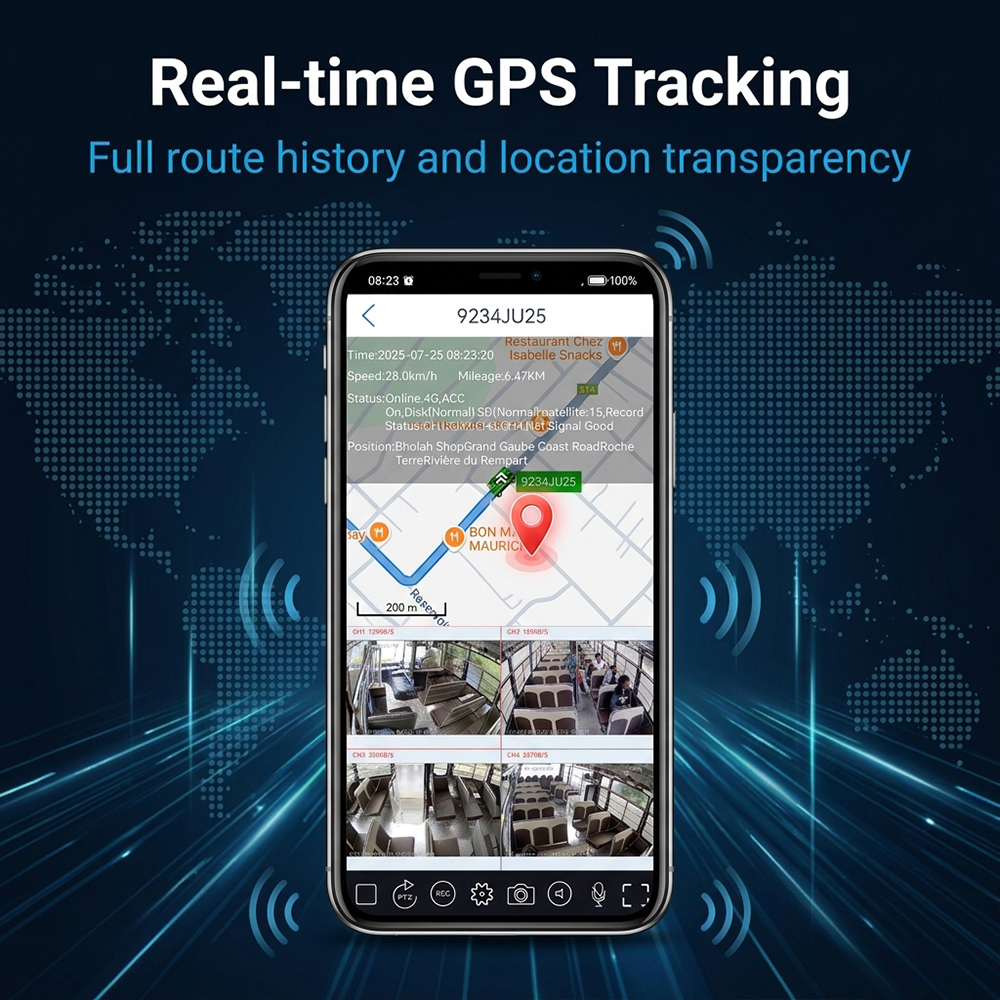

3. 4G Live Streaming & Remote Access
Real-time video and load data transmitted wirelessly. Monitor your entire fleet from any PC or mobile device — anytime, anywhere.

4. GPS/BeiDou Tracking with Smart Alerts
Real-time positioning with geofencing logic: weight drop outside designated pour zones triggers an immediate "Unauthorized Discharge" alert.

5. Instant Alerts

  • Sudden load drop → leakage, spillage, or theft

  • Gradual load decrease outside pour zone → unauthorized material use

  • Overload warning → prevent fines and vehicle damage

  • Tamper alert → sensor/cable interference notification

Key Benefits
Theft Prevention Instant alerts with video evidence for unauthorized discharge
Customer Confidence Verified delivery records eliminate quantity disputes
Operational Efficiency Real-time visibility optimizes dispatch and routing
Compliance Overload warnings keep trucks within legal limits
Data Integrity HDD + SD dual storage ensures foolproof recording

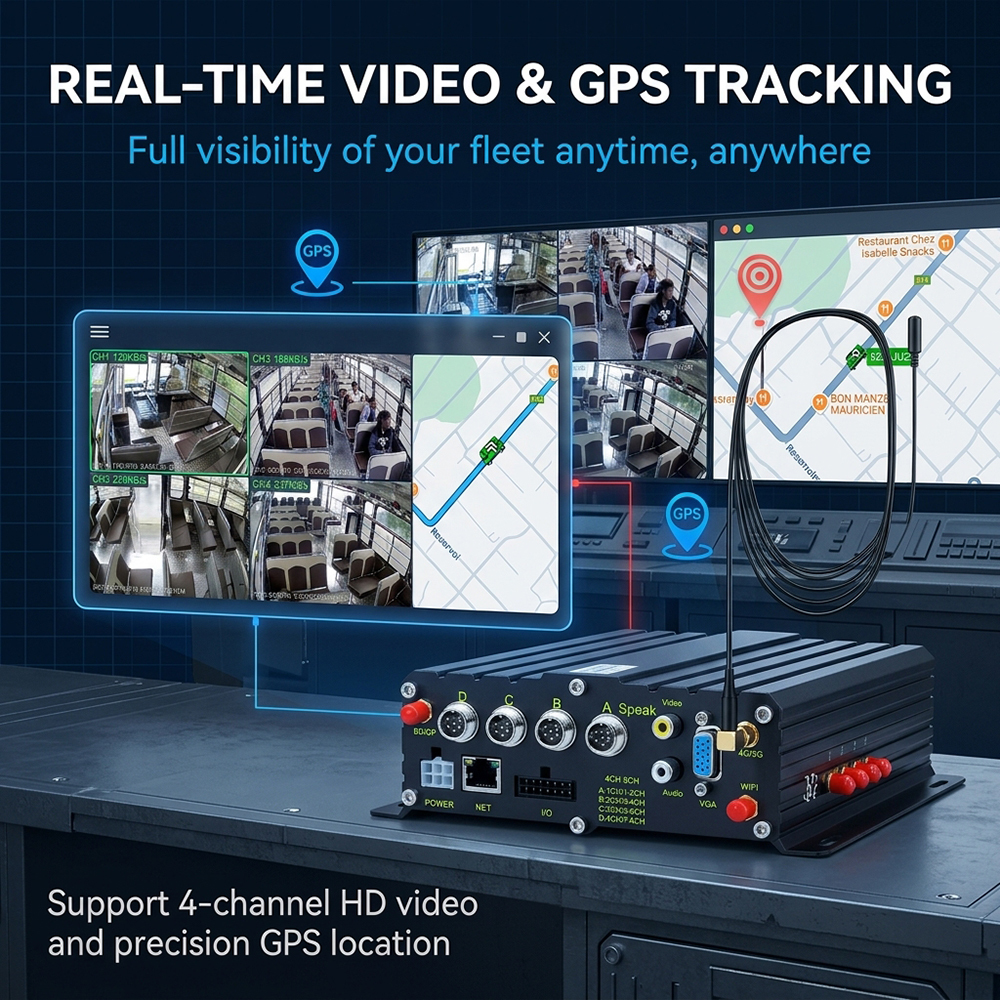

VW9014/8 MDVR Highlights
Feature Specification
Video 4/8CH 1080P, H.265 compression
Storage HDD up to 2TB + SD up to 512GB
Network 4G (5G optional) with remote monitoring
Positioning Built-in GPS/BeiDou
Power 12V-36V wide input, <5W consumption
Durability -20°C to +70°C, vibration-resistant
AI Option ADAS + DSM + BSD available

Built tough for concrete logistics. Rugged, reliable, and remotely managed.

Contact us to secure your mixer fleet today.
