4G Vehicle GPS tracker with RFID reader door detection tracking solution
4G Vehicle GPS tracker with RFID reader door detection tracking solution
4G Vehicle GPS tracker with RFID reader door detection tracking solution
4G Vehicle GPS tracker with RFID reader door detection tracking solution
4G Vehicle GPS tracker with RFID reader door detection tracking solution
4G Vehicle GPS tracker with RFID reader door detection tracking solution
4G Vehicle GPS tracker with RFID reader door detection tracking solution
4G Vehicle GPS tracker with RFID reader door detection tracking solution
4G Vehicle GPS tracker with RFID reader door detection tracking solution
4G Vehicle GPS tracker with RFID reader door detection tracking solution
Specifications
Brand Name :
Vanwin Tracking
Model Number :
VW100
Certification :
CE/FCC/RoHS/IEC/ECE
Place of Origin :
Shenzhen, China
MOQ :
1 peice
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000 pcs per day
Delivery Time :
1-2 days for samples,5~7 days for large orders
Packaging Details :
plastic foam packing
Type :
4G Vehicle GPS tracker with RFID reader door detection tracking solution
Network :
4G
Application :
GPS with RFID solution for attendance checking/ door autorization
Working voltage :
9-36VDC
Applicable to market :
Africa market
Backup battery :
500mAh /3.7V Li-Polymer battery
Speed limiter scope :
40-120KM/H
Description

4G Vehicle GPS tracker with RFID reader door detection tracking solution SDK API

Feature

1. Use Google map, Global free

2. Take photo of the vehicle, and Image transmit to internet.

3. Fuel Check / monitor

4. Real-time locating / inquiry

5.Support RFID

6. SOS button/Power-cut Alarm

7. Listen by telephone

8. E-fence/Over-speed Alarm

9. Compatible original anti-theft

10. Remote control engine

Specification

Size
137*75*29mm
Working Voltage
DC:6.3~40V
Color
Black
Application
free android and IOS app
Input Fuse
5A
CPU
TI:MSP430F5419(100MHz)
Battery
Lithium battery :400mA( working time is about 3.5 hours)
Warranty
2 years
Item Name
Top selling shine
Function
camera gps fleet tracker
Working Temperature
Anna Shi
MOQ
5 Pieces
GSM Module
GSM Module:SIM5320
Band:850/900/1800/1900/2100MHz,
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
GPS Module
GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
Current
Not working Current 16mA
working Current:60~150mA
Current of opening infrared of Camera at night :100~200mA
Charging current: Max<500mA
Input I/O
8 I/O input/output Port
1 main power check
1 port use to check the engine ( ACC check)
1 port use to SOS
1 analog Input port( Fuel sensor)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)

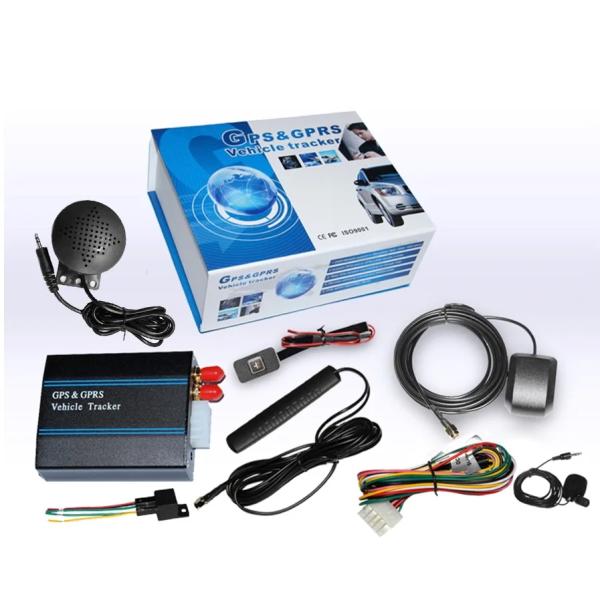

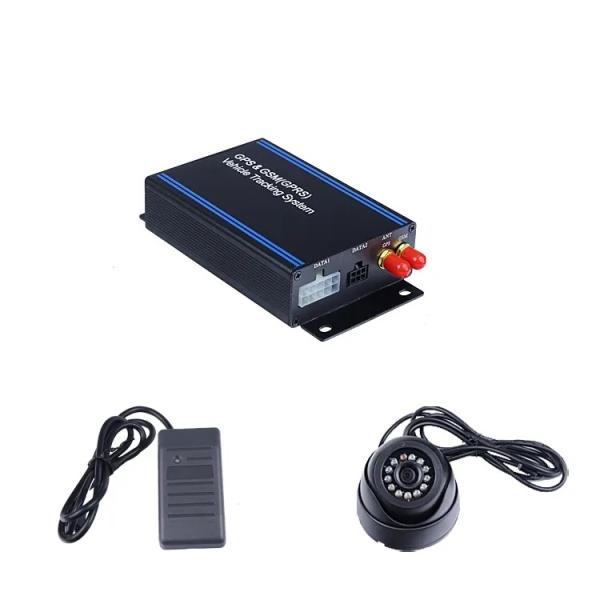

Product Photos:

4G Vehicle GPS tracker with RFID reader door detection tracking solution4G Vehicle GPS tracker with RFID reader door detection tracking solution4G Vehicle GPS tracker with RFID reader door detection tracking solution4G Vehicle GPS tracker with RFID reader door detection tracking solution

Application

4G Vehicle GPS tracker with RFID reader door detection tracking solution4G Vehicle GPS tracker with RFID reader door detection tracking solution4G Vehicle GPS tracker with RFID reader door detection tracking solution

4G Vehicle GPS tracker with RFID reader door detection tracking solution
