4/8 Channel mobile dvr kits
4/8 Channel mobile dvr kits
4/8 Channel mobile dvr kits
4/8 Channel mobile dvr kits
4/8 Channel mobile dvr kits
4/8 Channel mobile dvr kits
4/8 Channel mobile dvr kits
4/8 Channel mobile dvr kits
4/8 Channel mobile dvr kits
4/8 Channel mobile dvr kits
Specifications
Resolution :
1080P/960P/720P/D1/CIF, Max 4CH 720P recording
Own Software/Platform :
Yes
Camera Installtion :
Front/side/rear/indoor optional
3G 4G GPS WIFI :
Optional
Alarm :
6CH Alarm inputs, 2CH Alarm output
Software Support :
All softwares, like client,server,playback software
Power Supply :
8V-36V wide voltage
Applicable :
Bus, truck, taxi, cab, petrol, excavator, mining truck fleets
Basic Function :
4 cameras monitoring with 3G real time,GPS tracking, WIFI download
Brand Name :
Vanwin Tracking
Model Number :
VW9204
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
5,000pcs per month
Delivery Time :
2-3 days for samples,15-30 days for large orders
Packaging Details :
Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Description

3g/4g Wifi Hdd Tracking 4/8 Channel mobile dvr kits with RFID For Taxi Truck Car Bus

4 Channel Mobile Mdvr 3g/4g Wifi Hotspot 1tb Hdd Tracking Taxi Truck Car Bus Dvr Monitor Sd Card Camera Kit Mdvr Bus 8 Channel series is a high-performance and highly scalable product specially developed for in-vehicle video surveillance and remote video surveillance. It adopts the bootstrap structure design of hard disk, high-speed processor NT98323 and embedded operating system, and integrates H.264/H.265 video compression/decompression, 4G network, GPS/BD positioning and other technologies in the front line of IT.


Product Advantages * interface for stable and reliable operation in complex environments * video encoding is H.265, H.264 optional * supports 4G WIFI and GPS function module * Supports 2.5-inch optional SSD/HDD hard drive * supports one SD card * rich peripheral interface * supports external UPS battery life * High Expandabilityvideo encoding is H.265, H.264 optional



Datasheet

Item
VW9204
VW9208
Audio and Video Inputs
video input
AHD:4ch 1080P/25fps
IPC:Scalable 1-4ch
AHD:4/8ch 1080P/25fps
IPC:Scalable 1-4ch
audio input
4ch audio input
Audio and Video outputs
video output
Default 1-way CVBS output (VGA output optional)
speech output
1ch audio output
Audio and video parameter coding
video coding
H.264 Main Profile/H.265
Resolution
1080P/720P/D1 optional
audio coding
Default G.726,G.711A optional
storage space
HDD
1 2.5-inch optional: SSD/HDD hard disk
SD
Support 1 SD card
wireless network
4G
Supports 1 SIM card, optional: all major communication modules in the world
WIFI
2.4/5.8G optional
locate mode
BD/GPS
Support for mixed positioning, speed detection, time synchronization
interface
USB
USB2.0 interface, support export data, external engineering treasure
serial port
Support 2 RS232, 1 RS485, can be connected with external sensor
I/O
4 level inputs, 2 analog inputs, 2 alarm outputs
network interface
Support external IPC, support hybrid NVR function
· Intercom
1 special intercom handheld mark interface
Physical Specifications
size
176.9mm(L)*186.8mm(W)*54mm(H)
weight
NW:1.4kg
GW:2kg(M51Hv-DGNE1-L as a standard)
work environment
operating temperature
-20〜+70℃
operating humidity
8%〜90%(No condensation)
Other
operator schema
remote control,APP,WEB
· Gravity sensor
Built-in G-Sensor


Product Picture



Application



FAQ

1.Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.


2.Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

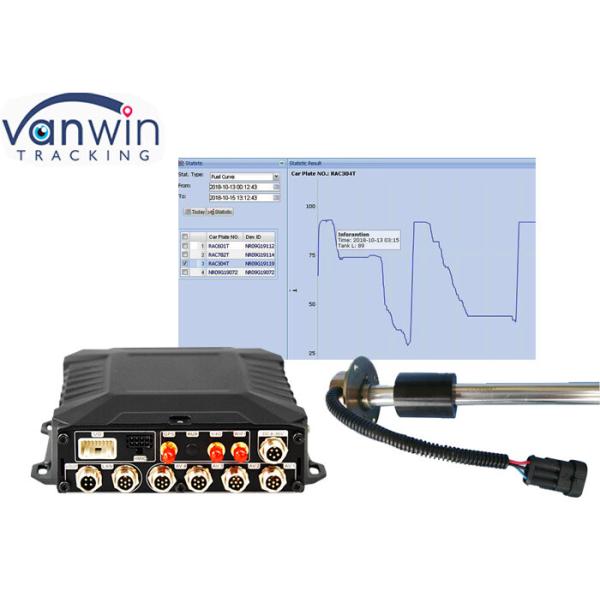

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

PTZ camera, and so on.

4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!
