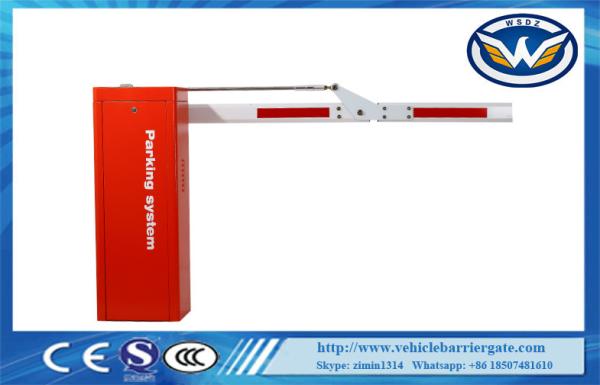

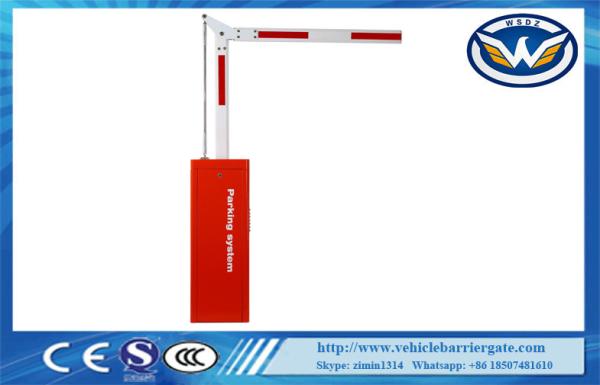

24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery
24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery
24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery
24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery
24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery
24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery
Specifications
Brand Name :
WONSUN
Model Number :
DZ-130
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Housing dimension :
335 * 285 * 926mm
CE :
YES
Housing material :
1.5mm cold roller steel plate
Arm type :
Straight arm, folding arm, fence arm, optional
Product name :
Backup Battery DC Motor Intelligent Barrier Gate 1.5SEC Toll Barrier Gate Parking System
Max boom length :
6m aluminum alloy arm
Description

Backup Battery DC Motor Intelligent Barrier Gate 1.5SEC Toll Barrier Gate Parking System


Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610

Functions&Features


1.The operation speed can be adjusted(2s to 6s).
2.Arm direction can be quickly interchanged.
3.Barrier gate up &down signal relay switch output.

4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.

7. Count mode interface.
8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.

9. High-sensitivity arm auto reverse function (intensity can be adjusted).

10. Parking system interface.

Technical data

Working Temperature -35℃~+85℃
Power Supply DC24V
Open/close Speed 2Sec to 6sec(adjustable)
Rated Current 8.58A
Rated Power 140W
Motor No-load Speed 1850rpm
Rated Rotating Speed 1400rpm
Output Power 56.8N.m
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP44
Max Boom Length 6M

Interchange descriptions:

The product direction can be interchanged, divided into 6 steps.

Step 1: remove the M8X20 inner hexagonal screw,take out the machine core;

Step 2: remove the electrical supporting plate from left side to the right side;

Step 3: remove the M10*30 fixed screw on the boom tray (see figure 1);

Step 4: using the M14*150 screw to pull out the boom tray head(see figure 2);

Step 5: install the boom tray head from the original left to the right side,or the original right to the lest side;

Step 6: put the machine core back into machine case, fixed the M8*20 hexagonal screw, direction interchange is completed, no need to adjust other Settings.


Each barrier will include:

1 pcs Vehicle Barrier gate
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book


24V Motor Speed Adjustable Toll Barrier Gate With Backup Battery

RFQ:

Q: What's the order process?

A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.

Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610

Backup Battery DC Motor Intelligent Barrier Gate 1.5SEC Toll Barrier Gate Parking System
Backup Battery DC Motor Intelligent Barrier Gate 1.5SEC Toll Barrier Gate Parking System
Backup Battery DC Motor Intelligent Barrier Gate 1.5SEC Toll Barrier Gate Parking System
