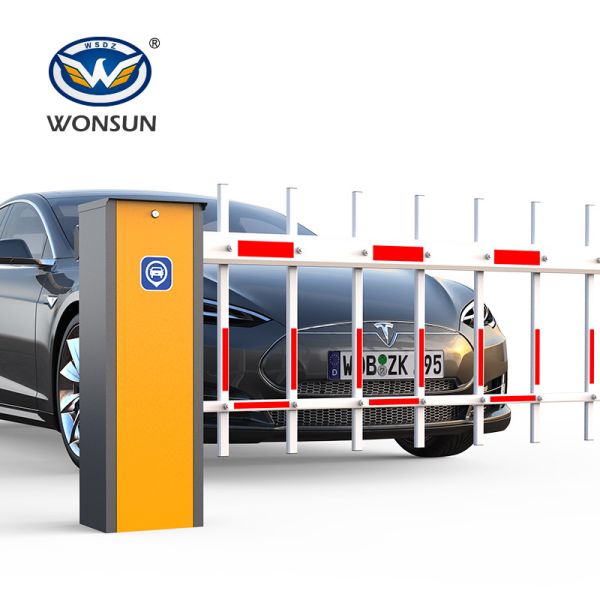

Road Access 24VDC Boom Barrier Gate With Auto Reverse Function
Road Access 24VDC Boom Barrier Gate With Auto Reverse Function
Road Access 24VDC Boom Barrier Gate With Auto Reverse Function
Road Access 24VDC Boom Barrier Gate With Auto Reverse Function
Road Access 24VDC Boom Barrier Gate With Auto Reverse Function
Road Access 24VDC Boom Barrier Gate With Auto Reverse Function
Road Access 24VDC Boom Barrier Gate With Auto Reverse Function
Road Access 24VDC Boom Barrier Gate With Auto Reverse Function
Specifications
Brand Name :
WOUNSUN
Model Number :
DZ-220 Traffic Barrier Gate
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1Set
Price :
$230/set
Payment Terms :
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability :
3000Set/Sets per month
Delivery Time :
5-8 work day
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
OEM/ODM :
Support
Arm Type :
Straight,fold, fence
Speed :
1.5sec~6sec
Output Method :
56.8N.m
Fetures :
heavy duty, swing out, remote control
Description

NEW Arrival Access Road 24VDC Boom Barrier Gate With Auto Reverse Function

Our Advantages:

1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.

Product Description

Model No. DZ-220
Framework Material Cold-roll sheet
Beam Aluminum alloy
Net Weight 45KG
Input Interface Photo cell, loop detector, parking system,wire control
Input 24V relay signal or Pulse Wide>100MS
Power Supply DC24V, AC220V/110V, 50/60Hz
Motor Consumption 140W
Working Temperature -35°C to +85°C
Relative Humidity ≥90%
MCBF 5 million time
Push Button Support
Remote Control Distance≤100m
Optional Accessories Loop detector; photo cell
Beam Length 1M - 6M
Opening/Close Time 2.5sec-8sec

Functions

(1) Run speed can adjust from 2.5sec to 8sec

(2) Arm automaticlly locking when power off, then open the barrier gate by motor wheel

(3) Remote control to operate the barrier gate.

(4) Auto-reverse when the boom meets obstruction.

(5) Infrared photocells connector is available.

(6) Loop detector connector is available.

(7) Well-intergrated with car parking system equipment,with wire control(must be switch signal).

(8) Connector for traffic light(AC220V,power less than 40W)

(9) Offering dry contact signal for car parking system(COM,NC,NO)

(10) Auto-delay when closing(adjustable)

Installation, commissioning and use

7.1 Equipment installation

7.1.1 Please select the correct type of barrier gate according to the specifications of

the pace,and then fix the barrier cabinet with expansion bolts(refer to Figure 3).

After determined the position,the barrier gate foundation should be done according to the site conditions,and

also make the cast-in-place basement for the non-concrete ground.

7.4 Adjust the Position of Barrier Arm

To adjust the position of the arm (for example, after exerting excessive force), please take the steps as below:

  • open the barrier gate door and remove the cover
  • loosen the two fasten screws of the DZ-1 on the boom shaft with the M12's Allen wrench, so that the boom can be re-positioned by hand.
  • adjust the position of the boom (horizontal position, as shown in picture 1).
  • Use the hexagonal wrench to tighten the two fastening screws (72 Nm)

The parameter for selecting the balance tension spring

Arm Type The Length of arm Selection Spring

Type

 Spec.(diameter*Length)
Straight Arm/Folding Arm 6M≥L＞5M Extension Spring (ø5.5x280)+(ø4.5x280)
5M≥L≥4.5M (ø5.5x280)
4.5M＞L≥3M (ø4.5x280)
Fence Arm 5M≥L≥4M (ø6.5x280)+(ø6.5x280)
4M＞L≥3M (ø5.5x280)+(ø4.5x280)

Our service:

Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.

Road Access 24VDC Boom Barrier Gate With Auto Reverse FunctionRoad Access 24VDC Boom Barrier Gate With Auto Reverse Function

Our service:

Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.

FAQ

Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
