Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059
Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059
Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059
Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059
Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059
Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059
Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059
Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059
Specifications
Brand Name :
WNRLN
Model Number :
WXCV059
Certification :
SGS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
3pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram, PayPal
Supply Ability :
5000pcs per month
Delivery Time :
10-30 days
Packaging Details :
Neutral packing /WNRLN packing/Customized packing
Product name :
WXCV059
Car make :
For CVC Chevrolet S10 For Blazer
Voltage :
12V
Grooves :
6PK
Compressor type :
CVC
OEM :
01141910/93381793/93298740/1139031
Size :
Standard Size
Year model :
1996-2012
Warranty :
1 year
Description

Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 For Blazer WXCV059

Parameter :

Model Number

WXCV059

Car Model

For CVC Chevrolet S10 For Blazer

Type

AC Compressor
Year Model

1996-2012
OE No.

01141910/93381793/93298740/1139031/YN4371900630RC

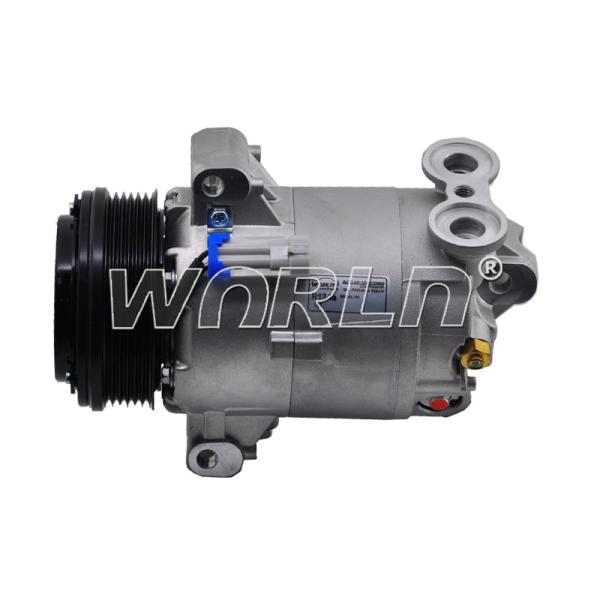

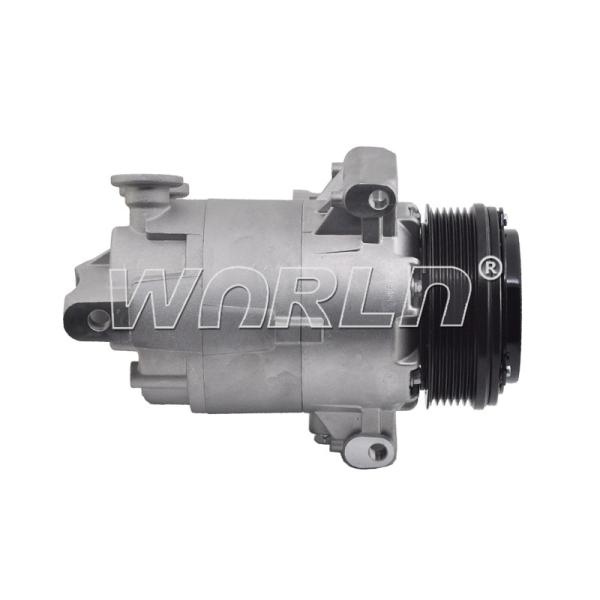

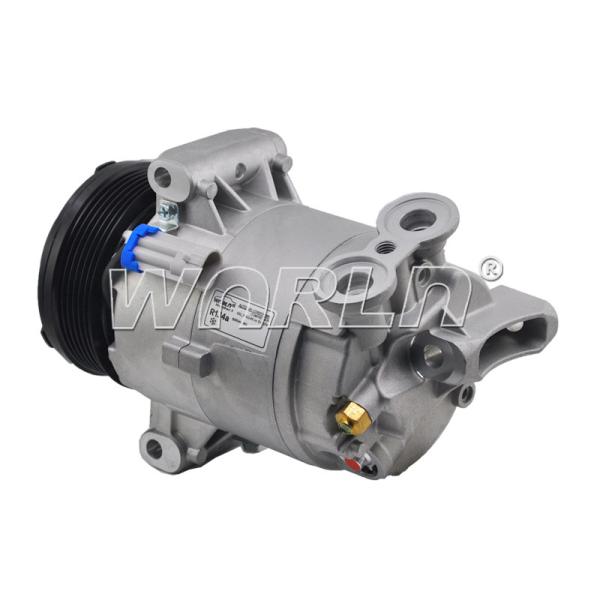

Product pictures

Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059

The Role of an Automotive A/C Compressor

1. Refrigerant Circulation

Acts as the system’s "pump", moving refrigerant through:

Evaporator → Compressor → Condenser → Expansion Valve → (Repeat)

Maintains continuous flow (typical cycling rate: 15–20 times per minute).

2. Pressure & Temperature Regulation

Compresses low-pressure gas (∼30 psi / 2 bar) into high-pressure gas (∼200 psi / 14 bar).

Raises refrigerant temperature to 80–120°C (176–248°F) for efficient heat release in the condenser.

3. Heat Exchange Enablement

Creates the pressure differential needed for:

Heat absorption (at evaporator: cools cabin air).

Heat rejection (at condenser: dissipates heat outdoors).

4. Engine Load Management

Belt-driven compressors (most common):

Clutch engagement draws 3–5 HP from the engine.

Modern variable displacement models reduce parasitic loss by 30–50%.

Electric compressors (EVs/hybrids): Operate independently of engine RPM.

5. System Lubrication

Circulates PAG/ester oil (typically 150–250ml) to:

Lubricate internal components (pistons, bearings).

Prevent seal degradation.

6. Fail-Safe Protection

Integrated safeguards:

Low-pressure switch (cuts off if <20 psi / 1.4 bar).

High-pressure switch (disengages if >400 psi / 28 bar).

Thermal overload prevents seizure during extreme heat.

Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059Auto AC Compressor RC.600.493 93381793 94763439 93298740 For CVC Chevrolet S10 Blazer WXCV059
