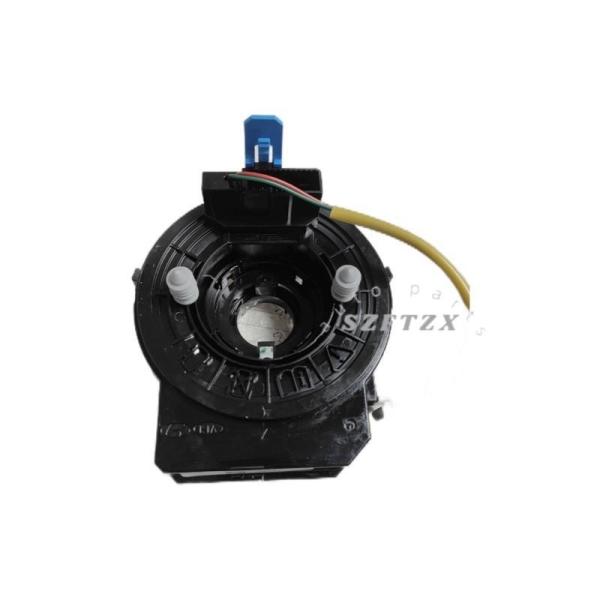

Genuine New Clock Spring Contact ASSY 93490C5270 for Kia Sorento 2015

The clock spring contact assembly serves the following functions:

Maintains Electrical Connections: It ensures that the electrical connections to the steering wheel controls, such as the airbag system, horn, and other switches, remain intact while the steering wheel is being turned.

Allows for Steering Wheel Movement: The clock spring allows the steering wheel to turn freely without damaging the electrical contacts, which are essential for the operation of the vehicle's safety and convenience features.

If you are looking to replace the clock spring in your 2015 Kia Sorento, ensure that the part you purchase is the correct one (93490C5270) and that it is installed by a qualified professional. This will help ensure the continued safe operation of your vehicle and compliance with all safety regulations. Always follow the manufacturer's recommendations and safety procedures when dealing with vehicle repairs, especially those involving the airbag system.

Applicable vehicle models:

Installation precautions:

① Confirm that the front wheels are in a straight state;

② Ensure that the connector on the clock spring rotor is in the 6 o'clock or 12 o'clock position, the neutral pin is locked, the ↓↑ mark is aligned, and a single white flat cable can be seen from the neutral window.

③ The three pins of the clock spring and the combination switch need to be installed and tightened in place. After assembly, they should not be loose or easily come off

④ Fix the clock spring pigtail connector buckle in the buckle hole of the pipe column bracket to ensure it is securely fastened; The clock spring pigtail wire connector is firmly connected to the wire harness connector, and a "click" sound is heard. Pull the connector to check and ensure it is securely inserted

⑤ When assembling the steering wheel, disconnect the neutral pin according to Figure 14 (S6-5828100 (A) is for pulling out the neutral pin), and during the assembly process, the clock spring does not rotate significantly

⑥ After assembling the steering wheel, firmly connect the small wire of the steering wheel to the clock spring connector. If you hear a "click" sound, pull the connector to check and ensure it is securely inserted

⑦ Connect the DAB small wire connector to the DAB and press the yellow locking buckle to lock it in place
