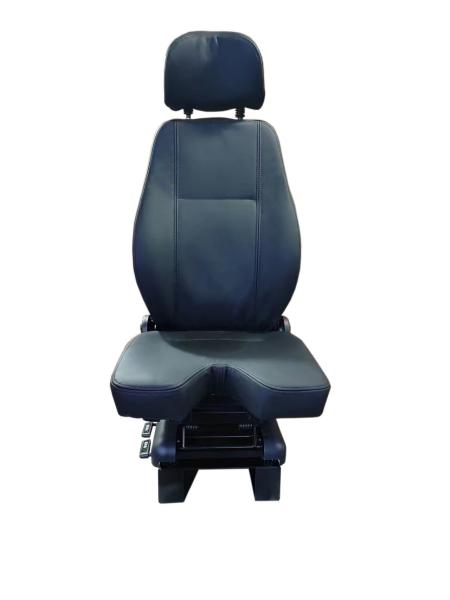

Customized Static Seat For Aerial Lifts Crane High-Altitude Tractor Seat
Customized Static Seat For Aerial Lifts Crane High-Altitude Tractor Seat
Specifications
Place of Origin :
Shaanxi China, Shaanxi China
Brand Name :
Botai
Model Number :
S802-V
Packaging Details :
6-8 Cartons Packed To A pallet
MOQ :
1 Set
Price :
$158-$205/set
Certification :
ISO9001
Payment Terms :
T/T
Supply Ability :
100Sets Per Week
Delivery Time :
10-15days
Name :
Customized Static Seat For Aerial Lifts Crane High-altitude tractor Seat
Product Model :
S802-V
Material :
PU/Leather/Fabric
Size :
500*500*(1140-1200)mm
Head Restraint Adjustment :
3 gears adjustable, 25mm for each gear
The Back Elevation Angle is adjustable :
80-120°
Description

Customized Static Seat For Aerial Lifts Crane High-Altitude Tractor Seat

Details

Product Name
Customized Static Seat For Aerial Lifts Crane High-altitude tractor Seat
Place of Origin
Shaanxi China
Product Model
S802-V
Scope Of Application
Universal
Product Size
500*500*(1140-1200)mm
Product Material
PU/Leather/Fabric
Product Color
Black/customized
Backrest Width
480*630mm
Cushion Width
480*460*(290-350)mm
Adjustable Backrest Elevation
80-120°
Horizontal Regulation
Front 70mm, Rear 70mm
Connecting Hole Spacing
Left and right 280mm* Front And Rear 280mm

Instructions for use: Common seats for all models

Headrest Adjustment

Adjustment range: 3 adjustable, each 25mm

Method: 1, move the adjustment button, and press the head pillow down to the required position,

release the button.

2. Move the headrest upward to the required position.

Elevation adjustment

Adjustment range: 80° -- 80°+41°

Method: Move the handle upward, turn the backrest to the required Angle, and then release the

handle.

Rear and height adjustment

Adjustment range: 0-60mm

Method: Move the handle upward, add (subtract) force to the back end of the seat cushion down

ward(up), and the back end of the seat cushion will drop

Lower (raise) to desired position, release the handle.

Front height adjustment

Adjustment range: 0-60mm

Method: Move the handle upward, add (subtract) force to the back end of the seat cushion down

ward(up), and make the front end of the seat cushion

Lower (raise) to desired position, release the handle.

Hardness control

Adjustment range: 40-130kg

Formula: Rotate the handwheel and adjust the preset force to the required position according to

the road conditions and the driver's weight.

Note: Do not rotate the pointer into a range less than 40 and greater than 130.

Front and rear position adjustment

Adjustment range: 120mm front and 110mm rear, 23 adjustable.

Method: Move the handle upward, move the seat forward (back) to the required position, and re

lease the handle.
