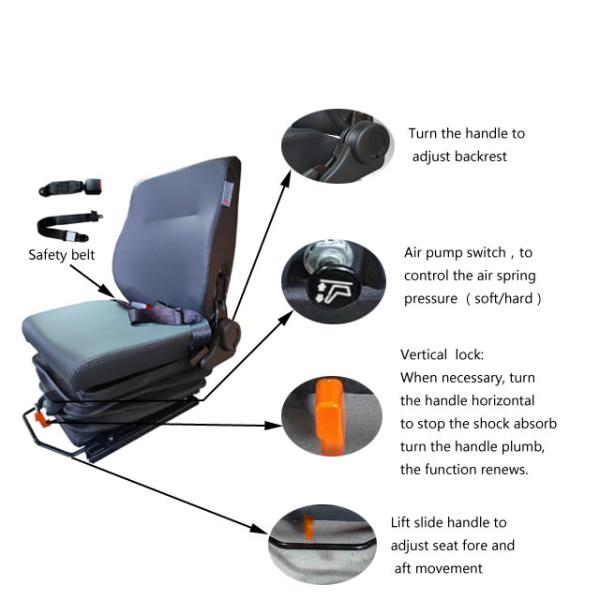

Air Suspension Seat For Coal mine Equipment Mine Vehicle With Safety Belt
Air Suspension Seat For Coal mine Equipment Mine Vehicle With Safety Belt
Specifications
Place of Origin :
Shaanxi China
Brand Name :
Botai
Model Number :
A800-1
Packaging Details :
6-8 Cartons Packed To A pallet
MOQ :
1 set
Price :
$279-$319/Set
Certification :
ISO9001
Payment Terms :
T/T
Supply Ability :
100Sets Per Week
Delivery Time :
10-15days
Name :
Air Suspension Seat For Coal mine Equipment Mine Vehicle With Safety Belt
Material :
PU/ Leather/Fabric
Product Model :
A800-1
Product Size :
500*570*840mm
Product Color :
Black Or Customized
Headrest Adjustment :
3 Levers Adjustable, Each lever 25mm
The Back Elevation Angle Stroke :
40-170°
Horizontal Adjustment Stroke :
Front 105mm, Rear 120mm 23 levers
Description

Air Suspension Seat For Coal mine Equipment Mine Vehicle With Safety Belt

Product Name
Air Suspension Seat For Coal mine Equipment Mine Vehicle With Safety Belt
Product Size
500*570*840mm
Product Material
PU/Leather/Fabric
Product Color
Black /Customized
Seat Back Size
480*530 mm
Seat Cushion Size
480*460*210-310mm
Head Restraint Adjustment
3 levers adjustable, 25mm for each lever
Backrest Adjustment
40-170°
Horizontal Regulation
Front 105mm, rear 120mm 23 levers adjustable
Customized
Rotated 360°bottom /Armrest/Safety Belt/Sliding way Etc.,
Air Suspension Seat For Coal mine Equipment Mine Vehicle With Safety Belt

Product material description:

Seat material: Q235 carbon steel for main frame.

Seat sponge : Cold technology, one-time molding sponge .

Air suspension seat with 12/24V compression pump application:

The seat is suitable for mine trucks and port terminal heavy trucks above, the side of the connection plate function is: armrest box bracket, the seat uses air pump suspension shock absorption function, power supply: 24V, pump power greater than 55KW, current less than or equal to 5A, air pressure: 0~0.8Mpa.

The center distance of the mounting hole at the bottom of the seat is usually: about :216mm, before and after: 280/295.5/320mm (the orientation of the person sitting on the seat), can be redrilled according to customer requirements;

Advantage

Factory direct sales, the quality of goods is guaranteed
