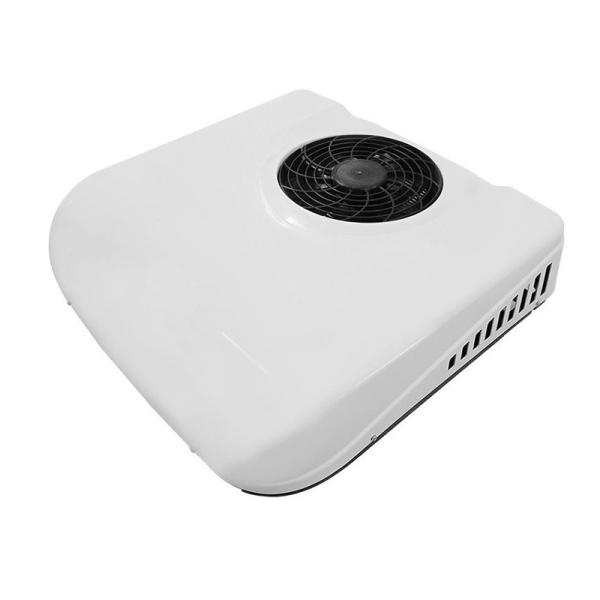

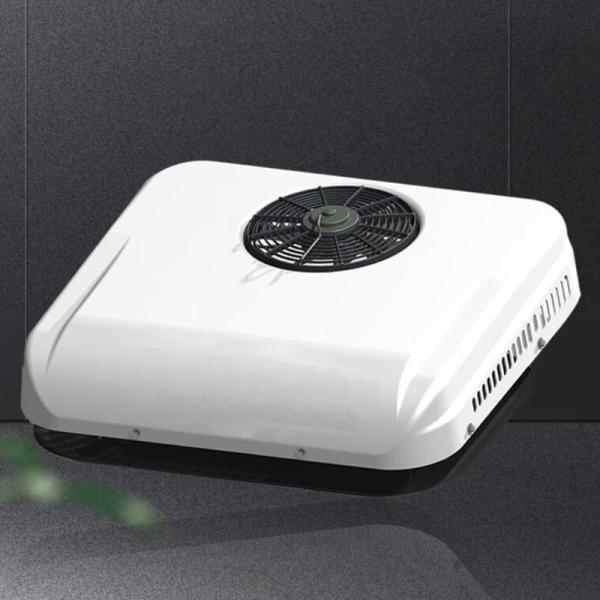

12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
12V DC Parking Air Conditioner with 2500W Cooling Capacity and R134a Refrigerant for PEUGEOT Trucks and RVs
Specifications
Place of Origin :
China
Brand Name :
Newbase
MOQ :
10
Price :
USD 300~800/unit
Delivery Time :
30 days
Payment Terms :
T/T
Supply Ability :
1000EU/M
Packaging Details :
Carton
Purpose :
for replace/repair
Condition :
New
Model :
206 Hatchback (2A/C)
Engine :
1.4 i
Year :
1998-
OE NO. :
NA
Car Fitment :
PEUGEOT
Reference NO. :
142715
Size :
190*177.5*45
Type :
FAN, Air Conditioner
Warranty :
18M
Car Model :
Bus,Van,Truck
Application :
Auto Air Conditioning System
Car Make :
Truck Boat Caravan Car
Quality :
100% Tested
Description
PACS 12V Parking Air Conditioner for PEUGEOT Trucks & RVs
The PACS parking air conditioner is an advanced in-vehicle climate control system designed specifically for truck sleeper cabs and RVs. This DC-powered unit provides continuous cooling during parking and rest periods using the vehicle's onboard battery system (12V/24V/36V), ensuring optimal comfort for drivers without requiring engine operation.
Key Benefits
  • Operates independently from vehicle engine using DC battery power
  • Significantly reduces engine idle time and component wear
  • Lowers fuel consumption and environmental pollution
  • Optimized air ducts for rapid cabin temperature reduction
  • Energy-efficient design for extended operation periods
  • Comprehensive temperature, humidity, and airflow control
Technical Specifications
Parameter NBEPAC-2.5A / NBEPAC-2.5B
Refrigerating Capacity 2500 Watts, 8600 Btu/h
Refrigerant R134a / 1.85 LBS
Compressor Displacement 13cc/rev
Condensate Oil Zero Easter 68SL/100cc
Compressor Speed 2000-5500 RPM
Evaporator Type Copper tube aluminum fin
Evaporator Air Flow Rate 550 m³/h
Condenser Type Parallel flow
Condenser Air Flow Rate 1800 m³/h
Weight 76 kg (Condenser); 16 kg (Evaporator)
Dimensions 190*177.5*45 mm (Condenser)
82.5*107.5*37.5 mm (Evaporator)
Temperature Control Range 15-30℃ adjustable
Defrosting Temperature 1-2℃
Blower Speed 3 grades
Compound Switch Off at 2.5 MPa
Pressure Protection Off at 0.05 MPa
System Components
The parking air conditioner system comprises a complete refrigeration delivery system including condenser, evaporator, electronic control system, compressor, fan assembly, and ductwork. These components work together to efficiently condition the air within the vehicle cabin, creating an optimal resting environment for truck drivers.
