Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM
Specifications
Place of Origin :
China
Brand Name :
Newbase
Packaging Details :
Carton
Supply Ability :
5000EU/M
MOQ :
50
Price :
USD 5~50/unit
Purpose :
for replace/repair
Condition :
New
Year :
2009-2009
Model :
Atom
Size :
83X50X28
Material :
ABS
Car Fitment :
Ariel
OE NO. :
N/A
Quality certifications :
TS16949/ISO9001
Color :
Black
Product name :
Blend Door Actuator
Used for :
Yutong Kinglong Sunlong Higer Bus
Applicable vehicle :
Passenger Bus
Type :
Diesel Engine
Name :
Blend Door Actuator
Certificate :
ISO
Delivery Time :
30 days
Payment Terms :
T/T
Description

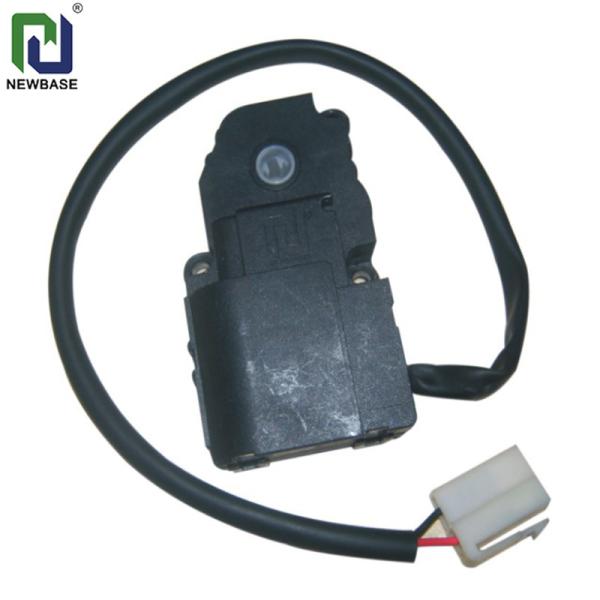

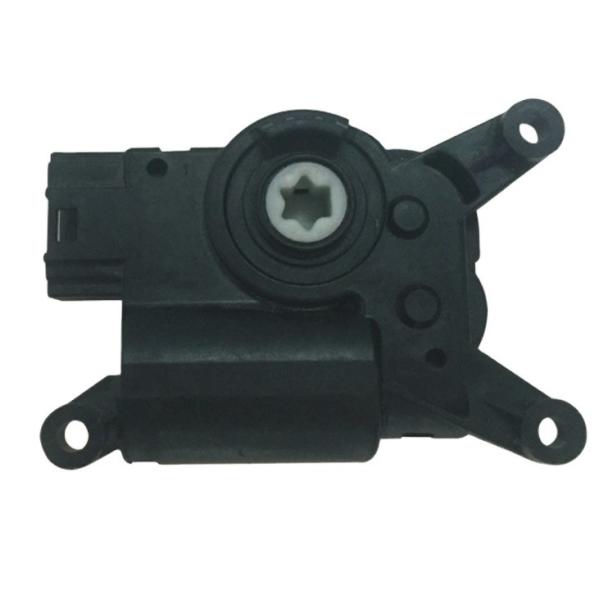

Bus Air Conditioner Control AC Controller Auto servo motor Blend Door Actuator
1.Control fresh air damper in the bus A/C system
2.Application: WINIA MANDO
3.Small order accept

Application: WINIA MANDO, HYUNDAI, KIA, SSMC, DAIHAN, DENSO, YUTONG BUS.

Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM

Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM

Technical data:

Bus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODMBus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODMBus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODMBus Air Conditioner HVAC Air Heater Blend Door Actuator 83X50X28 ODM

Technical date SWITCH
Power supply DC24V(DC16V-DC30V)
Power consumption 3W
Current Max.70mA
Electrical connection Max.1m X 0.5mm²
Direction of rotation CW/CCW
Angle of rotation 114°±2°(adjustable)
Torque 4kgf.cm
Running time 3.5±0.5rpm
Locked torque 12kgf.cm
Locked current Max.250mA
Noise level Max.43dB(A)
Ambient temperature -30°c—80°c
Storage temperature -40°c—85°c
Life Max.500,000 cycle

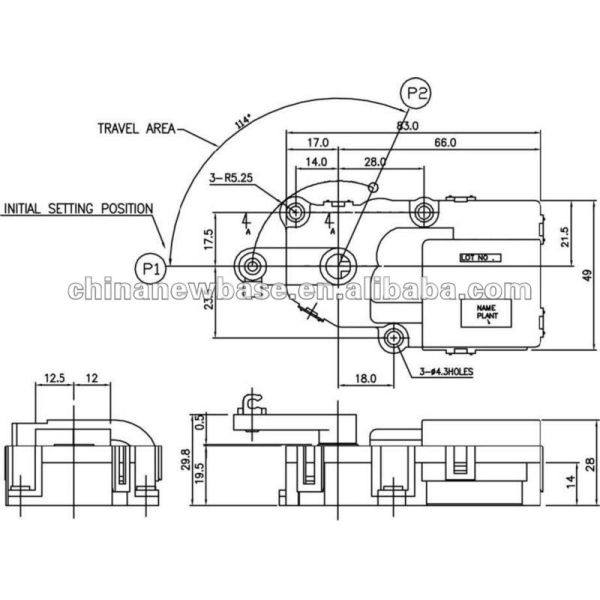

Dimensions 83X50X28(mm)
Weight 94g
Quality certifications TS16949/ISO9001

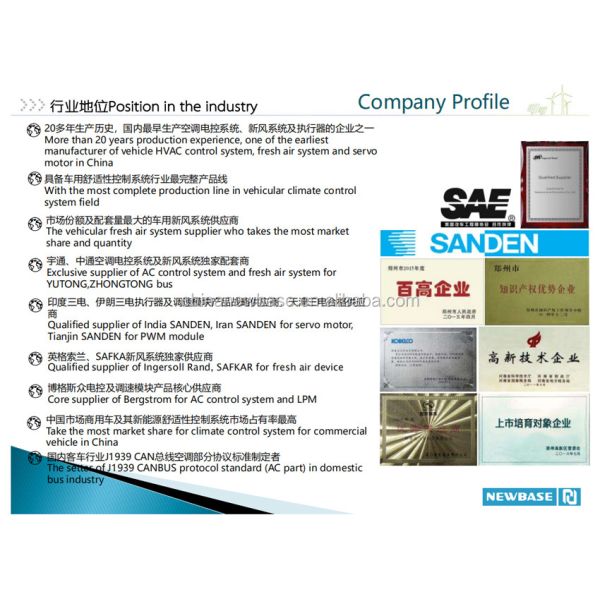

Company Information
