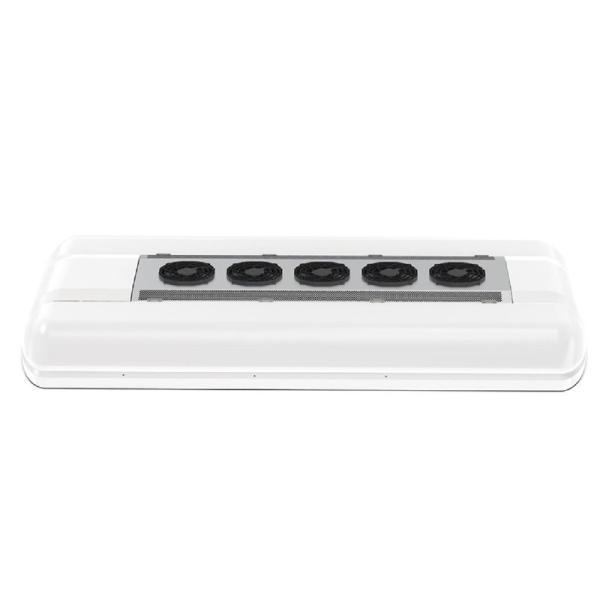

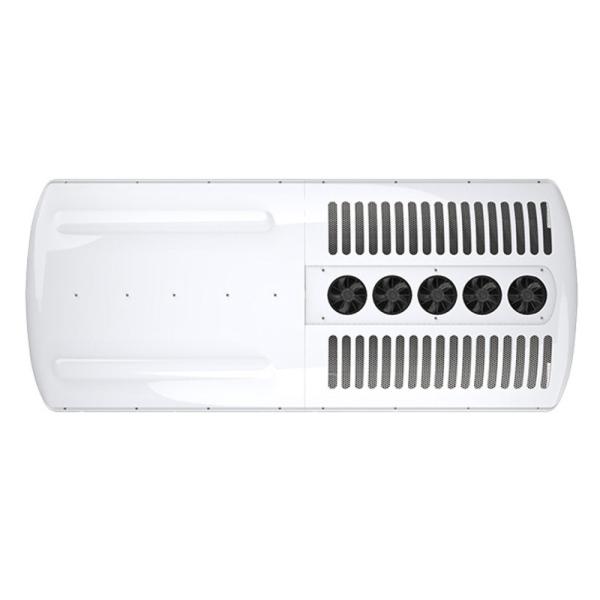

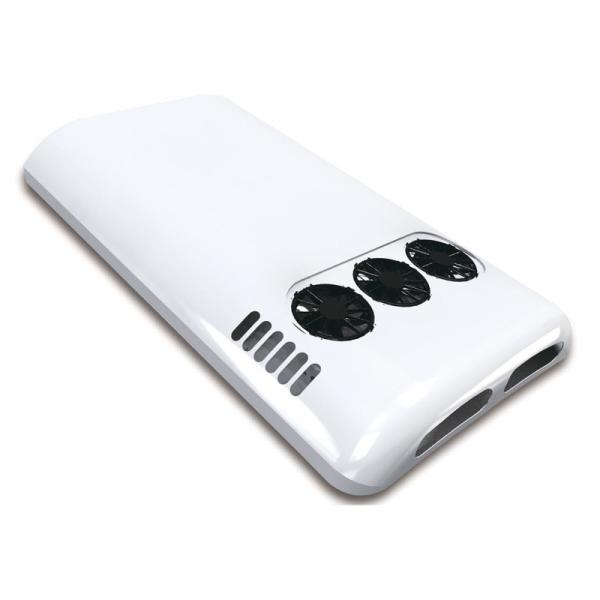

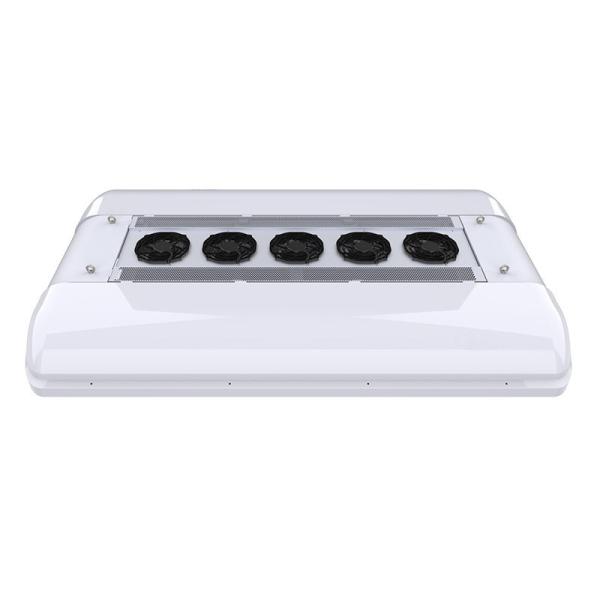

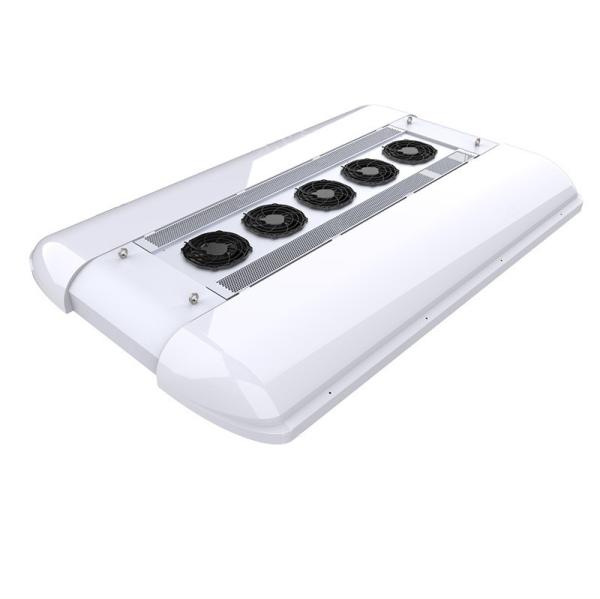

6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
Specifications
Place of Origin :
China
Brand Name :
Newbase
Model Number :
NB
MOQ :
10
Price :
USD 1000~10000/unit
Delivery Time :
30 days
Payment Terms :
T/T
Supply Ability :
1000EU/M
Packaging Details :
Steel Bracket
Purpose :
for replace/repair
Condition :
New
Type :
Flooring
Size :
Customized
Material :
Galvanized Steel Sheet
OE NO. :
NA
Bus Model :
ALL
MOQ :
1 Pcs
Quality :
High-Quality
Color :
White
Packing :
Carton Box
Application :
Public Bus
Description

Galvanized Steel Sheet Electric Bus Air Conditioner For Public Transportation

NEWBASE Electric Bus AC System – Engineered for Ultimate Safety‌


NEWBASE sets the gold standard for safety in electric bus air conditioning with our multi-layered protection system:

Low-Voltage Protection‌
DC-DC conversion with overvoltage/overcurrent/short-circuit safeguards ensures stable operation even at 65°C ambient temperatures.

Military-Grade PTC Heating‌
IGBT-controlled heating system features comprehensive protections including voltage regulation, current limits, and dry-fire prevention.

Intelligent High-Voltage Distribution‌
Pre-charge circuits enable soft-start activation, while fused branch circuits provide fail-safe power allocation.

EMI Fortress Technology‌
360° shielding and equipotential bonding neutralize electromagnetic interference, guaranteeing electronic reliability.

Trust the system where every component is armored with redundant safety – because passenger comfort should never compromise operational security.


6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation
6-12m Electric Bus Air Conditioner For Buses Public Transportation

Full DC inverter heat pump air conditioner, suitable for 6 - 12m pure electric buses, hybrid buses and fuel cell buses (basic platform).


Basic Model
NBEAC-21
NBEAC-24
NBEAC-30
NBEAC-34
Structural Form
Roof-mounted Integrated



Applicable Bus Length(m)
6~7
7~8.5
9~10
10~12
Cooling Capacity(KW)
18
26
30
32
Heating Capacity(Heat Pump )(KW)
20
28
36
38
Evaporator Airflow Volume(M/h3)
3200
3200
4800
7200
Condenser Airflow Volume(M/h3)
4800
6000
8000
1000
Compressor numbers
Single
Single/Dual


Refrigerant
R407C/410A



Size(L*W*H,mm)
2610*1600*270
2500×1920×280
2750*1920*280
3000*1920*270
Unit Weight(kg)
150
230
250
275

Roof-mounted air conditioning and battery thermal management system integration(compact integration) Suitable for pure electric buses, hybrid buses, and fuel cell buses equipped with liquid-cooled batteries, meeting the needs for both air conditioning cooling/heating and battery cooling/heating.


Basic Model
NBEAC-21-T
NBEAC-24-T
NBEAC-30-T
NBEAC-34-T
Structural Form
Roof-mounted Integrated



Applicable Bus Length(m)
6~7
7~8.5
9~10
10~12
Cooling Capacity(KW)
18
26
30
32
Heating Capacity(Heat Pump )(KW)
20
28
36
38
Battery Side Driving Cooling Capacity (KW)
3/5
3/5
3/5
3/5
Battery Side Charging Cooling Capacity (KW)
5
8
8
8
Evaporator Airflow Volume(M/h3)
3200
3200
4800
7200
Condenser Airflow Volume(M/h3)
4800
6000
8000
1000
Compressor numbers

Single

Single/Dual


Refrigerant
R407C/410A



Size(L*W*H,mm)
2610*1600*270
2500×1920×280
2750*1920*280
3000*1920*280
Unit Weight(kg)
180
260
250
275
