Specifications
Place of Origin :
China
Brand Name :
Newbase
Delivery Time :
30 days
Payment Terms :
T/T
MOQ :
10
Supply Ability :
1000EU/M
Packaging Details :
Steel Bracket
Price :
USD 3000~15000/unit
Dimensions :
48.5
Compressor Type :
Scroll
Cooling Capacity :
16,000 BTU
Power Source :
Diesel
Controller Type :
Digital
Defrost Type :
Hot Gas
Condenser Type :
Microchannel
Model :
TRU-16
Fuel Consumption :
0.8 gallons per hour
Weight :
350 lbs
Refrigerant Type :
R134a
Temperature Range :
-20°F to 60°F
Evaporator Type :
Fin and Tube
Voltage :
12V
Description

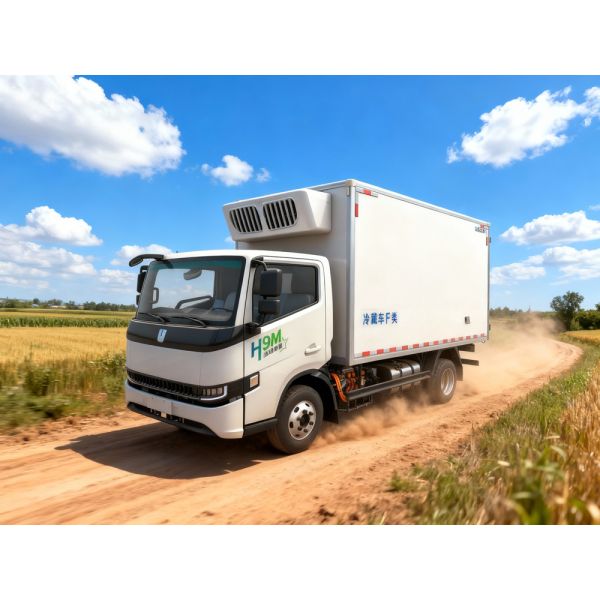

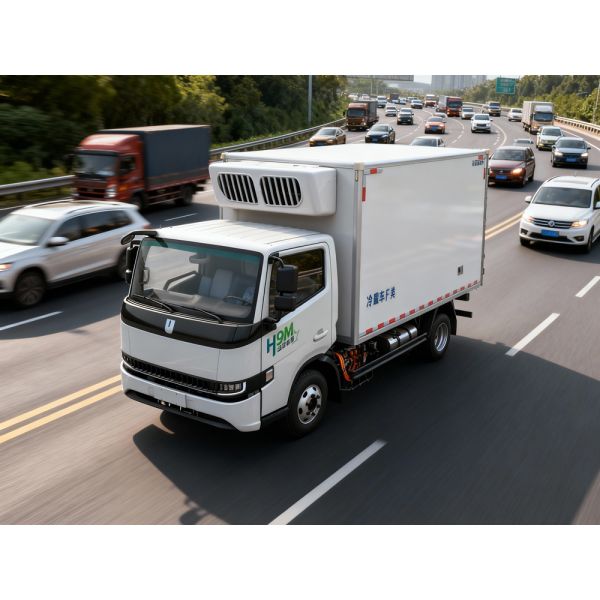

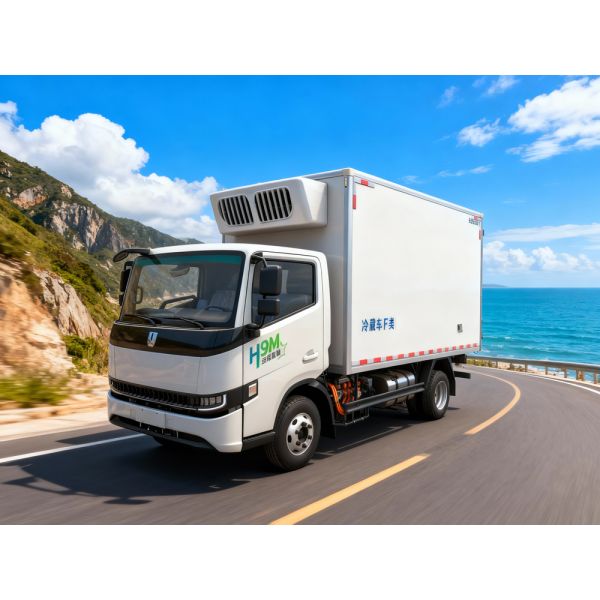

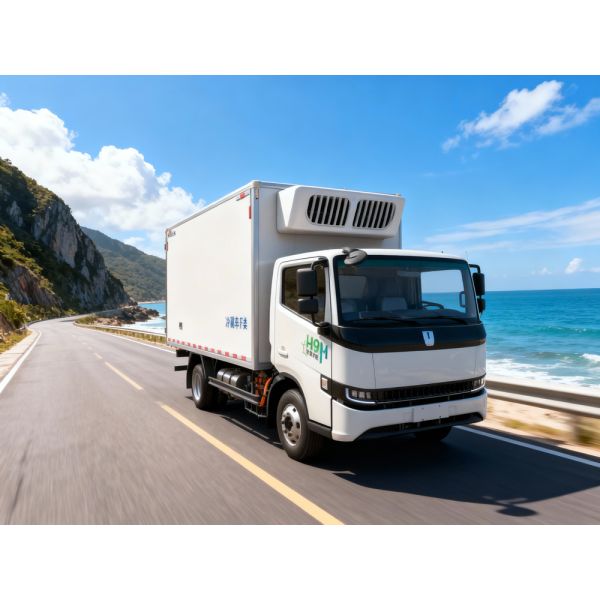

4.2m Refrigerated Truck Refrigeration Unit

The NBESR-1000A all-electric integrated refrigeration unit produced by NEWBASE is suitable for light-duty refrigerated trucks (7.5 - 8.5 meters in length) powered by new energy sources such as pure electricity, hydrogen energy, methanol, and extended-range systems. It is compatible with insulated container bodies with a volume of 42 - 46 cubic meters and can achieve refrigeration temperatures as low as -18°C to -20°C.

The compressor is designed to be installed inside the condenser. Both the condenser and the evaporator adopt an integrated structure. This refrigeration unit features an elegant appearance, rapid cooling speed, low power consumption thanks to frequency conversion control, and safe and reliable operation. Equipped with a built-in 4G module, the unit enables remote proactive after-sales service and temperature regulation control.

The product comes with an AC380V backup power function, allowing refrigeration using an external power source when the vehicle is parked, thus conserving the truck's battery power. Additionally, it is configured with a heating function, capable of achieving heating temperatures ranging from 6°C to 15°C.

Parameters Table
Model Refrigeration Unit
Applicable Compartment Volume 15-25m³
Temperature Range -25℃ - +30℃
Refrigeration Capacity 0℃/30℃ 5200W
-20℃/30℃ 2800W
High Voltage DC250V-DC450V(Low Voltage Platform)
DC380V-DC750V(High Voltage Platform)
Power 0℃/+30℃ 2850W
-20℃/+30℃ 2430W
Drive Mode Pure Electric
Control Voltage DC12V(9~16V)
DC24V(16~32V)
Low Voltage Power supply DC-DC
Standby Power Supply AC220V/380V(Optional)
Compressor DTH356(Variable Frequency)
Refrigerant R404A
Refrigerant Filling Amount 2.3kg
Defrosting Method Hot Gas
Heating Method Hot Gas
Control Method CAN Communication
Condenser Assembly Size(L * W * H,mm) 1633X485X485
Weight(kg) 78
Condenser Fan Numbers(pcs) 2
Total Air Volume(m3/h) 4000
Evaporator Assembly Size(L * W * H,mm) 1092X590X241
Weight(kg) 20
Evaporator Fan Quantity(个pieces) 2
Total Air Volume(m3/h) 2000
