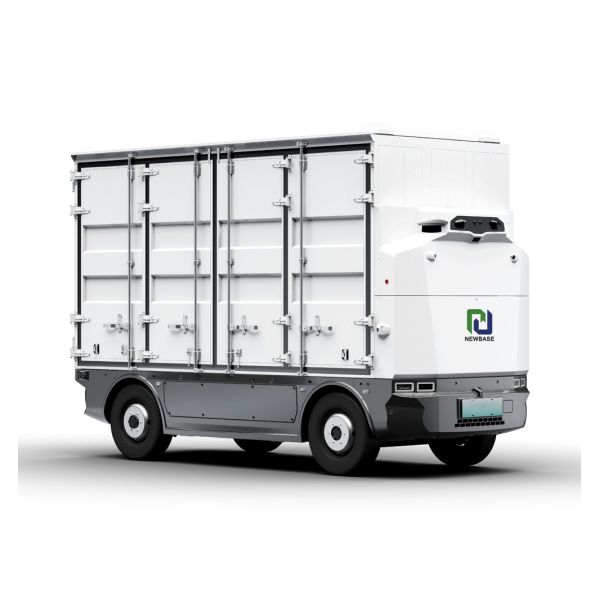

NEWBASE Z8 MAX Series L4 Autonomous Robovan with 210 km Maximum Range 1450 kg Load Capacity and 10 m³ Cargo Box Volume
NEWBASE Z8 MAX Series L4 Autonomous Robovan with 210 km Maximum Range 1450 kg Load Capacity and 10 m³ Cargo Box Volume
Specifications
Description

NEWBASE Z8 MAX Series L4 Autonomous Robovan: Elevating Large-Scale Industrial & Urban Logistics Efficiency

In an era where logistics operators grapple with ​​rising labor costs​​, ​​24/7 operational demands​​, and ​​complex environment navigation​​, NEWBASE— a pioneer in autonomous mobility technology—unveils the ​​Z8 MAX Series L4 Autonomous Robovan​​. Engineered specifically for large distribution centers, industrial parks, and rugged outdoor sites, this vehicle redefines last-mile and intra-site logistics with its SAE L4-level autonomy, pallet-handling capabilities, and rugged durability. It is not just a vehicle—it is a solution to eliminate manual bottlenecks and unlock peak logistics efficiency.

Core Positioning: Tailored for High-Volume, High-Complexity Logistics

The Z8 MAX is purpose-built for ​​large-scale industrial and urban logistics​​—a segment where traditional manual vehicles or low-autonomy models fall short. Its L4 autonomy (per SAE International standards) enables fully driverless operation in pre-mapped or dynamically adapting environments, while its pallet-compatible design streamlines loading/unloading—critical for industries like e-commerce fulfillment, manufacturing, and mining. By reducing reliance on human drivers, the Z8 MAX cuts labor costs by up to 40% and boosts throughput by 25% (aligned with industry benchmarks for autonomous logistics).

Key Features: Autonomy, Durability, and Cargo Excellence

1. L4-Level Autonomous Operation

The Z8 MAX integrates ​​multi-sensor fusion (LiDAR, cameras, radar)​​ and ​​AI-driven path planning​​ to navigate:
  • ​​Urban roads​​: Crowded streets, intersections, and loading docks.
  • ​​Industrial sites​​: Narrow factory aisles, mining trails, and uneven terrain.
  • ​​Confined spaces​​: Parks, warehouse yards, and port loading zones.
    Its obstacle avoidance system detects pedestrians, cyclists, and static barriers with millimeter precision—ensuring safety in high-risk environments.

2. Pallet-Loading/Unloading Compatibility

Designed with a ​​low-entry cargo bed​​ (154mm min. ground clearance) and ​​reinforced floor​​, the Z8 MAX seamlessly integrates with automated pallet jacks or forklifts. This eliminates manual lifting and reduces loading time by 30% compared to traditional robovans—ideal for high-volume pallet transport.

3. Rugged Design for Extreme Environments

  • ​​All-terrain capability​​: 20% climbing gradient, 380mm wading depth, and 5.4m minimum turning radius—handles mud, slopes, and tight corners.
  • ​​Weather resilience​​: Operates from -30°C to 60°C with IP55 waterproofing—perfect for mining areas, coastal factories, or seasonal urban routes.

Application Scenarios: Adaptable to Diverse Logistics Needs

The Z8 MAX excels in four core settings:
  1. ​​Large Distribution Centers​​: Automates pallet transport between storage and loading docks—reducing labor dependency.
  2. ​​Industrial Parks​​: Navigates tight factory aisles for just-in-time (JIT) manufacturing workflows.
  3. ​​Mining Areas​​: Tackles rough terrain and dust-prone conditions with sealed components.
  4. ​​Urban Open Roads & Parks​​: Delivers bulky goods (e.g., appliances, bulk e-commerce orders) through crowded streets.

Detailed Technical Specifications

The table below encapsulates the Z8 MAX’s engineering prowess, balancing performance, cargo capacity, and flexibility:
​​Category​​
​​Parameter​​
​​Specification​​
​​Basic Info​​
Model
Z8 Max (2025) Three-Door Version (L4 Autonomous)

Dimensions (L×W×H, mm)
4032 × 1716 × 2672
​​Performance​​
Min. Ground Clearance (mm)
154

Max. Wading Depth (mm)
380

Min. Turning Radius (m)
5.4

Max. Climbing Angle
20% (≈11.3°)

Max. Speed (km/h)
55

Operating Temperature (°C)
-30 ~ 60

Waterproof Rating
IP55
​​Cargo Capacity​​
Max. Unloaded Range (km)
210 (Short Range Battery) / 260 (Long Range Battery)

Urban Comprehensive Range (km)
150 (Short) / 190 (Long)

Load Capacity (kg)
1450 (Short Range) / 1350 (Long Range)

Cargo Box Volume (m³)
10

Pallet Handling
Compatible with automated pallet jacks/forklifts; low-entry bed for easy access
​​Autonomy​​
Level
SAE L4 (Driverless in pre-mapped/dynamic environments)
​​Design​​
Body Color
Star Sea White / Glacier Blue

Lock Type
Mechanical Rod Lock
​​Battery & Charging​​
Battery Type
Lithium Iron Phosphate (LiFePO4) – High Safety & Long Cycle Life

Battery Capacity (kWh)
34.8 (Short) / 46 (Long)

Standard Charging Time (h)
• Portable 16A Gun: 11.5 (Short) / 15 (Long)
• 7kW AC Pile: 15 (Short) / — (Long)

Optional Charging Time (h)
• 32A AC Pile: 7 (Short) / 9 (Long)
• External Charger: Faster (request details)

Included Accessory
Portable 16A Charging Gun (pre-installed)

Charging Compatibility
Supports 7kW National Standard AC Piles; optional 32A piles/external chargers

Charging Flexibility: Minimize Downtime, Maximize Uptime

The Z8 MAX offers tiered charging solutions to keep fleets operational 24/7:
  • ​​Standard Kit​​: Comes with a ​​portable 16A charging gun​​ for on-the-go top-ups.
  • ​​AC Charging​​: Compatible with 7kW national standard piles (15h for short-range battery) and 32A piles (7-9h)—ideal for depot charging.
  • ​​External Chargers​​: Optional high-power chargers for rapid replenishment—suited for intensive operations (e.g., mining or e-commerce peaks).

Conclusion: The Future of Industrial & Urban Logistics

The NEWBASE Z8 MAX Series is a paradigm shift for logistics: it combines ​​L4 autonomy​​, ​​pallet-handling efficiency​​, and ​​rugged durability​​ to solve the biggest pain points of large-scale supply chains. Whether optimizing distribution centers, navigating mining trails, or delivering bulky goods in cities, the Z8 MAX empowers businesses to cut costs, boost productivity, and future-proof their operations.
Partner with NEWBASE to adopt the Z8 MAX—and step into a world where logistics runs autonomously, efficiently, and without limits.
NEWBASE—Intelligent Mobility for Industrial & Urban Logistics Excellence.
Optional accessory note: ① Portable 16A charging gun included; ② Compatible with 7kW/32A AC piles; ③ External chargers available for faster charging.
