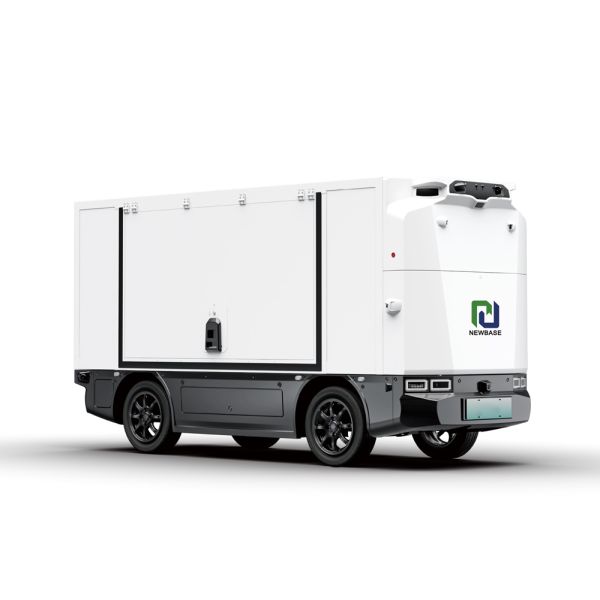

NEWBASE Z5 Series Unmanned Logistics Vehicle with 5.5m³ Cargo Volume 800kg Payload and 180km Maximum Range Autonomous Delivery Vehicle
NEWBASE Z5 Series Unmanned Logistics Vehicle with 5.5m³ Cargo Volume 800kg Payload and 180km Maximum Range Autonomous Delivery Vehicle
Specifications
Description

NEWBASE Z5 Series Unmanned Logistics Vehicles: Pioneering Intelligent Urban Delivery Solutions

In the era of logistics 4.0, NEWBASE, a leading innovator in autonomous mobility technology, introduces the ​​Z5 Series Unmanned Logistics Vehicles​​—a cutting-edge fleet engineered to revolutionize urban delivery. Combining advanced autonomy, versatile design, and robust performance, the Z5 Series addresses the growing demand for efficient, reliable, and scalable last-mile logistics across diverse urban environments.

Core Technology & Autonomous Capabilities

At the heart of the Z5 Series lies NEWBASE’s proprietary autonomous driving system, integrating ​​high-precision mapping, multi-sensor fusion perception, behavior prediction algorithms, and real-time autonomous decision-making​​. This suite of technologies enables fully unmanned operation on public roads, in closed campuses, and even through complex urban intersections—ensuring safety, precision, and uninterrupted service.

Product Overview: Versatility for Every Logistics Need

The Z5 Series offers two primary variants tailored to distinct operational scenarios:
  1. ​​Standard Robovan​​: A sleek, white-unibody design with optional wing doors, flatbed, or cold-chain configurations, optimized for general urban logistics.
  2. ​​2025 Flying Wing Version​​: A medium-sized model engineered for challenging urban environments, including narrow streets, parks, and indoor logistics hubs.

Key Features & Performance Highlights

Standard Robovan

  • ​​Cargo Flexibility​​: Supports reverse pickup, shuttle delivery, and multi-stop operations. Available in wing door, flatbed, and cold-chain variants.
  • ​​Core Parameters​​:
    • Cargo Volume: 5.5m³
    • Payload: 800kg
    • Maximum Range (Unloaded): 180km
    • Urban Comprehensive Range: 130km

2025 Flying Wing Version

Designed for complex urban settings, this variant excels in maneuverability and all-weather performance:
  • ​​All-Terrain Capability​​: Minimum turning radius of 4.5m, 20% climbing slope, 300mm wading depth, and 160mm ground clearance.
  • ​​Environmental Resilience​​: Operates at -30°C to 60°C with IP55 waterproofing.
  • ​​Enhanced Cargo Options​​: Payloads of 740-800kg and 5.3m³ cargo volume.

Detailed Technical Specifications

The table below summarizes the Z5 Series’ key specs, highlighting its adaptability across use cases:
​​Parameter​​
​​Standard Robovan​​
​​2025 Flying Wing Version​​
​​Model​​
General-Purpose Robovan
Medium-Flying Wing Van
​​Dimensions (L×W×H, mm)​​
—
3716×1365×1999
​​Min. Ground Clearance (mm)​​
—
160
​​Max. Wading Depth (mm)​​
—
300
​​Min. Turning Radius (m)​​
—
4.5
​​Max. Climbing Angle​​
—
20%
​​Operating Speed (km/h)​​
—
40
​​Temp. Range (°C)​​
—
-30~60
​​Waterproof Rating​​
—
IP55
​​Max. Range (Unloaded, km)​​
180
180/260 (long/short battery)
​​Urban Comprehensive Range (km)​​
130
130/180 (long/short battery)
​​Payload (kg)​​
800
800/740
​​Cargo Volume (m³)​​
5.5
5.3
​​Body Colors​​
—
Star Sea White / Glacier Blue
​​Lock Type​​
—
Automotive-Grade Smart Electric Lock
​​Battery Type​​
—
Lithium Iron Phosphate
​​Battery Capacity (kWh)​​
—
18.4/28.3 (standard/optional)
​​Charging Time (h)​​
—
Standard: 5.4/8; Optional: 2.7/4

Applications & Industry Impact

The Z5 Series is engineered for diverse urban logistics use cases, including e-commerce last-mile delivery, retail goods distribution, and cold-chain transportation. Its compact size, autonomous operation, and customizable configurations reduce labor costs, minimize delivery delays, and enhance operational scalability—key priorities for modern logistics enterprises.

Conclusion

NEWBASE’s Z5 Series Unmanned Logistics Vehicles set a new benchmark in urban delivery technology. By merging cutting-edge autonomy with user-centric design, the fleet delivers unmatched efficiency, reliability, and adaptability. Whether navigating busy streets or tight indoor spaces, the Z5 Series empowers businesses to future-proof their logistics operations and meet the demands of an increasingly connected world.
Explore NEWBASE’s charging accessories, including a portable 16A gun, 7kW AC piles, and external chargers, to optimize your fleet’s uptime.
NEWBASE—Intelligent Mobility for a Smarter Tomorrow.
