Specifications
Brand Name :
Jiu Ying
Model Number :
JY-GZB125L
Certification :
CE
Place of Origin :
Guangzhou,China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 unit per week
Delivery Time :
3~15 days after receive the payment
Packaging Details :
Standard Export package By Wooden case
Type :
Meat Bowl Chopper Machine
Dimension of Chopper :
1910mm×1930mm×1850mm
Bowl Speed :
11/17rpm/min
Blade Speed :
300-4500rpm
Power :
51.97KW
Capacity :
60-80kg per batch
Voltage :
220V/380V
Qty of blade :
6pcs
Unloader :
Yes
Function :
Chopper
Net weight :
3000KG
Description

Industrial Vegetable and Meat Bowl Chopper Machine 120L For Food Processing

Characteristic:

Industrial bowl Cutters / choppers (sometimes called bowl cutters) are best known in making sausage. There are several types of sausage depending on what part of the world the recipe comes from. You can use the Model JY-GZB125L Industrial Bowl Chopper to make all kinf of sausage which is a more chunky type of sausage. For this type of sausage you would run the cutting blades at a slower RPM and the bowl at a faster RPM. If you were using your Model JY-GZB125L Industrial Bowl Chopper to make a more emulsified product like bologna, liverwurst or traditional hot dog, you would turn the bowl speed of your bowl chopper to a lower RPM and increase the speed of the cutter blades. At the very end of this type of process, the operator adds ice flakes to cool down the product and create that creamy texture of the meat.
This machine use high-speed rotating chopper chop job, the main raw material meat, minced meat, finely chop cut fat meat or mess, while other raw materials such as water, bomeol, accessories, stir together run time, reduce materials heat,to maintain the natural color of fillings, flexibility, product yield and shelf lief. this machine is widely used in meat, vegetables, seafood and flavoring agents.

Specification

ModelJY-GZB125L
Item NameMeat Bowl Chopper Machine
Unit Size1910*1930*1850mm
Packing Size2500*2100*2100mm
Bowl Speed11/17rpm/min
Blade Speed300-4500rpm/min
Capacity3000KG
Power51.97KW
Qty of Blade6pcs
Net Wight3000KG

Working principles:

It takes advantage of the high speed cutting function of the rotary cutting knife and cut the meat with other materials.
The industrial meat bowl cutter machine is one of the most versatile machines at a butcher shop or food processor facility

Feature:

  1. Bowl Cutter / Chopper Equipped with 2 independent motors each one with variable speeds up to 4500rpm.
  2. Knives and bowl speeds can be combined (slow/slow, fast/fast or slow/fast).
  3. With removable knives head to work with 6 knives.
  4. High absorption capacity in emulsions.
  5. Uniform texture of the dough.Suitable for frozen meat up to -20ºC.
  6. Provided with maximum safety. Blades instantly brake when the lid is opened.
  7. Unloading device highly improve production efficiency.
  8. Construction: fully made of SUS 304stainless steel.
  9. Ideal for food and meat processing industry for its versatility and cash value.

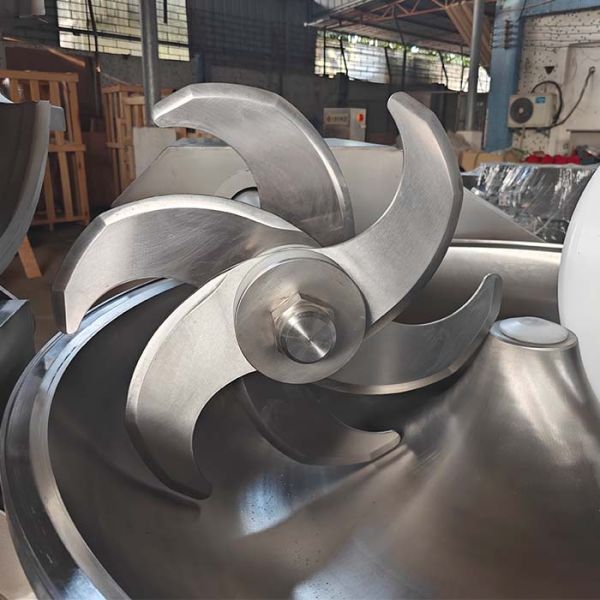

Details of Model JY-GZB125L Industrial Bowl Cutters / Choppers
Industrial Vegetable and Meat Bowl Chopper Machine 120L For Food Processing

FAQ

Q1: What is the working capacity of this 80L bowl cutter machine?
A1: The working capacity is 80 liters, 60kg per batch, suitable for medium to large-scale meat processing factories.


Q2: What materials is the machine made of?
A2: The whole machine is made of food-grade 304 stainless steel, which is corrosion-resistant, easy to clean, and meets international food safety standards.


Q3: What is the speed of the cutting blades?
A3: The blade speed is adjustable, with high speed up to 4500 rpm, ensuring fine and even emulsification of meat, fat, and additives.


Q4: Can it be used for different meat products?
A4: Yes. It is widely used for processing sausage meat, meatballs, minced meat, surimi, ham, and other meat fillings.


Q5: Is the operation easy?
A5: The machine uses a PLC control panel with simple buttons. It is easy to operate, clean, and maintain.


Q6: Does it have safety protection functions?
A6: Yes. It is equipped with safety interlock on the cover. The machine will stop automatically when the cover is open, ensuring operator safety.


Q7: What is the voltage and power?
A7: It can be customized according to your local voltage, such as 380V/220V, 50/60Hz. The total power is about 18 kW.


Q8: How long is the service life?
A8: With normal use and maintenance, the service life can reach more than 5–10 years. The blades are durable and replaceable.

Hearty Service

  • Before sending the machine, we will test and adjust, so you can use directly when you get it.
  • Operating video & instruction will be sent to clients, to help them better use the machines.
  • Any problems occur while using, professional advice will be given by us.
  • All kinds of frequently used parts are supplied from us all the year round.
  • We will reply you within 12 hours!

JIUYING Food Machinery is located in Guangzhou, China. We offer training, installation, service and parts for all the machines we sell. Including the model JY-ZB125L Bowl Chopper and many others.
Call, E-mail or visit us today for more information!
