Specifications
Brand Name :
Jiu ying
Model Number :
JY-320D
Certification :
CE
Place of Origin :
GuangZhou, China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per week
Delivery Time :
3 days after receive the deposit
Packaging Details :
packing by plywood
Type :
Customized Bandsaw Sweet Corn Splitter Cutting Machine
Voltage :
220/380v
Warranty :
one year
Capacity :
1000-2000kg/h
Dimension :
1086*685*1814mm
Material :
SUS 304 stainless steel
Condition :
New
Description

Customized Bandsaw Sweet Corn Splitter Cutting Machine

For Food Processing Industrial

Features:

  • The machine is made of stainless steel 304 and easy to clean.
  • The motion wheel is directly connected, and the motor is with a power-cutting break.
  • Tension-control device is applied in cutting-band to make adjustment easier and facilitate installation.
  • The design of cutting-band raised on both sides is to prevent the band from falling.
  • Either the left or the right model can be tailor-made.
  • The working table has a thickness of 5mm.
  • Easy-to-clean provides exceptional hygiene.

Technical parameters:

Model JY-320D
Dimension 1086x685x1814mm
Table Height 715mm
Max. Cutting Height 250mm
Power 2.94KW
Blade length 2780mm
Cutting speed 28m/s
Net wight 220kg

Applications: JY-320D Band saw for cutting of frozen sweet corn, pork feet, beef feet,large frozen / fresh food products, ice, etc.

Customized Stainless Steel 304 Bandsaw Cutting Machine with 1000-2000kg/h Capacity and 5mm Working Table

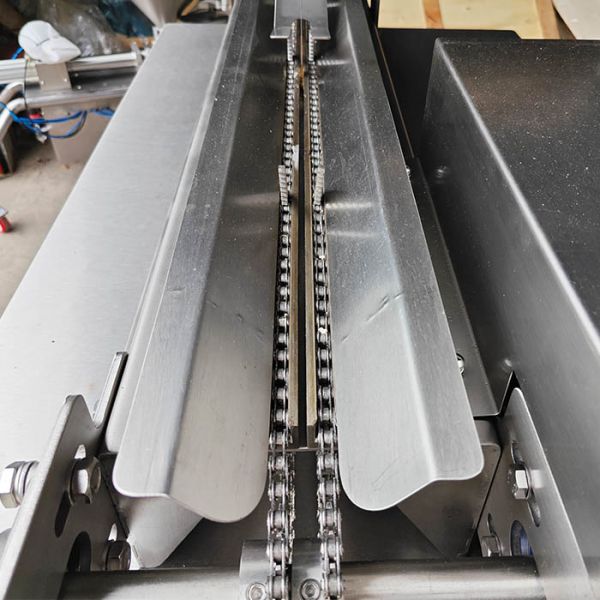

Stainless steel chain with product holder feeding inlet

Customized Stainless Steel 304 Bandsaw Cutting Machine with 1000-2000kg/h Capacity and 5mm Working Table

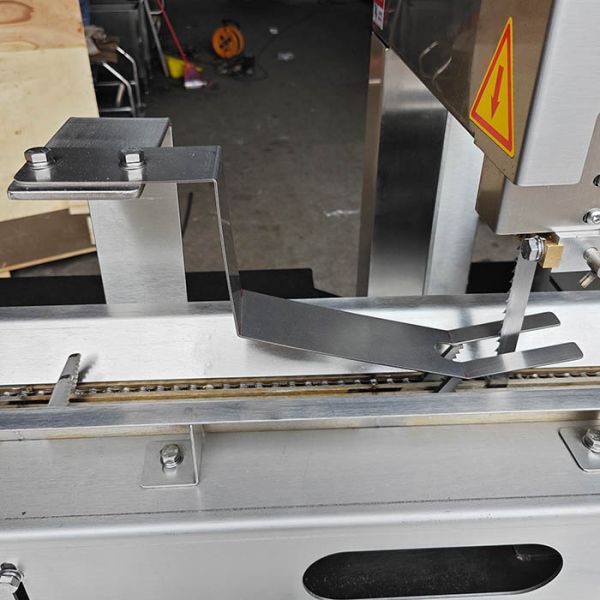

Cutting area with customized product holder

Customized Stainless Steel 304 Bandsaw Cutting Machine with 1000-2000kg/h Capacity and 5mm Working Table

Highlight:

  • User-Friendly
  • Automatic stainless steel chian to transport the product to cutting area
  • Complete SUS 304 Stainless Steel Construction
  • Saftey device
  • Easy to clean

FAQ:

1. Q: How is The Quality Of The Products?
A: With the goal of becoming the leading brand in this filed, we keep exploring in research,quality development for the past 15 years. We are confident to satisfy you with our guaranteed quality.
2. Q: How to Operate And Install The Machinery?
A: Manuals will be provided together with machinery;and we usually assemble the machinery and test it before shipment.
3.Q: What is The Solution For Faults During The Use Of The Machinery?
A: You shall send us the details of the machinery and the failure statements with a photo or a video if necessary,Then we will offer you the professional instructions and suggestions until the machinery works normally.
4. Q: What Details Are Important Before Ordering The Processing Line?
A: The processing materials, capacity requirements,ichnography of your plant,and also your kind customized requirements shall be provided to us before making accurate plans for you.

5. Q: What Kind Of Payment Terms Are Available?
A: T/T, L/C,WESTERN UNION are acceptable.
