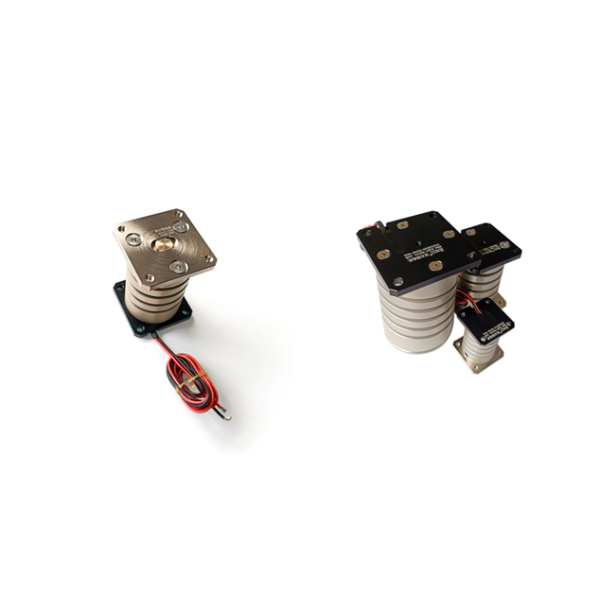

VCAZ series Vibration Motors For Vision Alignment And Optical Positioning Systems
VCAZ series Vibration Motors For Vision Alignment And Optical Positioning Systems
VCAZ series Vibration Motors For Vision Alignment And Optical Positioning Systems
VCAZ series Vibration Motors For Vision Alignment And Optical Positioning Systems
VCAZ series Vibration Motors For Vision Alignment And Optical Positioning Systems
VCAZ series Vibration Motors For Vision Alignment And Optical Positioning Systems
Specifications
Speed :
High
Brand Name :
SUPT MOTION
Certifications :
ISO9001-2000
Delivery Time :
1-5pcs ,5 days . >20pcs ,To be negotiated
Price :
$120
Rated Voltage :
25.9V
Certification :
ISO9001-2000
Packaging Details :
Customized packaging etc.
Starting Current :
2.6A
Stroke :
3mm
Motor Type :
Vibration Motors
Power @ Fp :
56.3W
MOQ :
5PCS
Place of Origin :
China,Suzhou
Model Specifications :
VCZA0020-0040-00A
Payment Terms :
T/T
Supply Ability :
To be negotiated
Peak Force :
20.5N
Actuator weight :
110g
Model Number :
VCAZ Series
Description

Product Description:

The flexible feeding mechanism of voice coil motor solves the feeding problem that cannot.
This motor is made of materials with high strength and good stability. Short response time, high vibration frequency, good consistency and stability. With special drive control technology, parts can move forward and backward, turn over, disperse and converge.

SUPTMOTION VCAZ Series Vibration Motors are engineered for high-precision motion applications, ideal for visual alignment systems, optical positioning equipment, and automated inspection devices. In modern industrial automation, machine vision systems demand ultra-precise responsive motion control to achieve accurate image alignment, lens positioning, and sensor calibration.

The VCAZ series vibration motors employ direct-drive electromagnetic principles to generate smooth, precise linear motion. Their most significant advantages lie in high-frequency response and rapid acceleration capabilities. Vision inspection systems frequently require swift trajectory adjustments to track moving objects or instantly reset cameras and sensors.

The vibration voice coil motor also features a compact, lightweight design that integrates seamlessly into vision modules, optical platforms, and precision motion platforms. This compact structure is particularly crucial in automated equipment with limited installation space.

Features:

  • High precision positioning performance

  • Fast response and high frequency motion

  • Direct drive voice coil actuator design

  • Zero backlash and smooth motion

  • Compact structure for easy integration

  • Long operational life

  • Low vibration and stable movement

Product Parameters:

Model Number VCAZ0020-0040-00A
Winding constant VALUE UNIT
DC resistance 10.2 Ω
Voltage @ Fp 25.9 V
Current @ Fp 2.6 A
Inductance 1.3 mH
Peak force 20.5 N
Con force 8.9 N
Actuator constant 2.55 Ka
Power @ Fp 65.3 W
Total stroke 3 mm
Max winding temp 150 ºC
Actuator weight 110 g

Model Number VCAZ0010-0020-00A
Winding constant VALUE
DC resistance 9.5
Voltage @ Fp 14.8
Current @ Fp 1.6
Inductance 0.37
Peak force 4.2
Con force 2.2
Actuator constant 0.87
Power @ Fp 24
Total stroke 1.5
Max winding temp 150
Actuator weight 69

VCAZ series Vibration Motors For Vision Alignment And Optical Positioning Systems

Applications:

The feeding mechanism is integrated with adjustable backlight, which can complete vibration feeding, automatic control by visual system, and automatic control by machine picking system.

Machine vision alignment systems.

Optical inspection equipment.

CCD positioning stages.

Automated optical inspection (AOI).

Semiconductor inspection platforms.
