100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor
100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor
100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor
100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor
100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor
100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor
Specifications
Brand Name :
SUPT
Model Number :
VCAP0100-0020-00A
Certification :
ce,ISO9001,CCC
Place of Origin :
Jiangsu, China
MOQ :
2 pieces
Price :
$120.00/pieces >=2 pieces
Payment Terms :
T/T
Supply Ability :
To be negotiated
Delivery Time :
1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
Packaging Details :
Customized packaging etc.
Warranty :
3months-1year
Usage :
BOAT, Car, Electric Bicycle, Home Appliance, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project
Type :
Micro Motor
Torque :
Requests
Construction :
Permanent Magnet
Commutation :
Brush
Protect Feature :
Totally Enclosed
Speed(RPM) :
Variable Speed
Product Name :
linear voice coil motor
Rated Voltage :
41.2V
Peak force :
100N
Continuous force :
47N
Port :
Shanghai Port
Description
Product Description

SUPTMOTION’s VCAP0100-0020-00A is an industrial-grade, ultra-high-thrust flat voice coil motor designed specifically for heavy-duty precision positioning. It delivers a peak thrust of up to 100 N and a continuous thrust of 47 N with a stroke of 4 mm, making it ideal for high-precision, short-stroke drive applications. Manufactured with a high-strength structure and wear-resistant, premium materials, this flat voice coil motor features exceptional force density, a fast response time of less than 5 milliseconds, and ultra-stable motion performance. Its robust 110×105×51 mm frame ensures minimal deformation during operation, making it ideal for precision stamping, heavy-duty clamping, and heavy-load positioning systems. This flat voice coil motor supports a maximum voltage of 41.2 V and features an ultra-high back-EMF constant of 80.1 V/m/s, enabling rapid and precise closed-loop control. It offers excellent thermal management capabilities, a wide operating temperature range, and exceptional resistance to shock and vibration. This flat voice coil motor is widely used in automotive manufacturing, precision stamping machines, heavy-duty optical component positioning, high-voltage switchgear, and large-scale automation equipment.

The main application of a voice coil motor:

Linear voice coil driver is a kind of voice coil drive mechanism, which uses linear voice coil driver for accurate control. It is a flat voice coil motor, its market mainly points to semiconductor and micro-machine tool industry. This linear voice coil actuator system is lightweight, compact and suitable for a variety of applications. It is characterized by light weight, short response time and high frequency. Short stroke, compact structure, model is VCAP series, is perfect for applications requiring precise and accurate movement.

Application Scenarios (Precise Matching)
• Precision metal stamping equipment
• Precision automotive parts assembly machines
• Heavy-duty optical component positioning systems
• Drive mechanisms for high-voltage switchgear

Technical Parameters:

Product Mdel
Peak Force
(N)
Continious
Force
(N)
Total Stroke
(mm)
Max
Voltage
(V)
Back EMF
Constant
(V/m/S)
Weight of the Coil
(g)
Length(mm)
Width
(mm)
VCAP0020-0068-00A
20
9.2
6.8
8.2
4.4
39
50
21.5
VCAP0020-0160-00A
20
5.3
16
27.6
4.4
59
50
22.5
VCAP0030-0200-00A
30
12.3
20
24.3
10.5
80
74
25

VCAP0100-0020-00A:

Parameter value Parameter value
Model VCAP0100-0020-00A Peak thrust 100N
Continuous Thrust (25°C) 47N Total stroke 4mm
Maximum Voltage 41.2V Back-EMF constant 80.1V/m/s
Length 110mm Width 105mm
Height 51mm Weight 1.2kg

Detailed Images

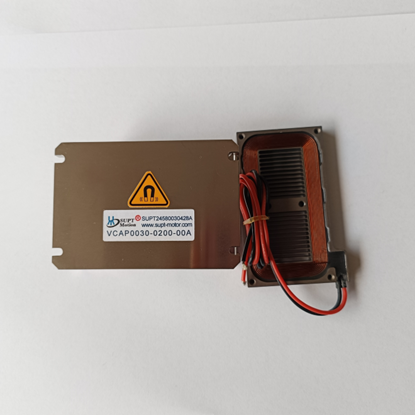

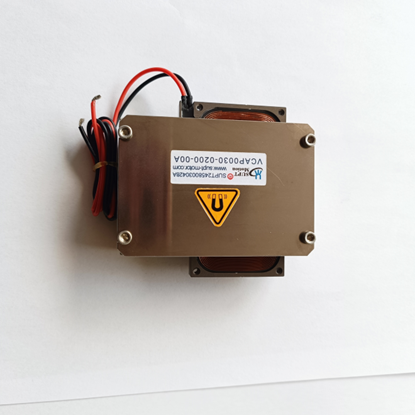

100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor

100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor

Certifications
100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor

Our Company

Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.

100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor
The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.
100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor

The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.
