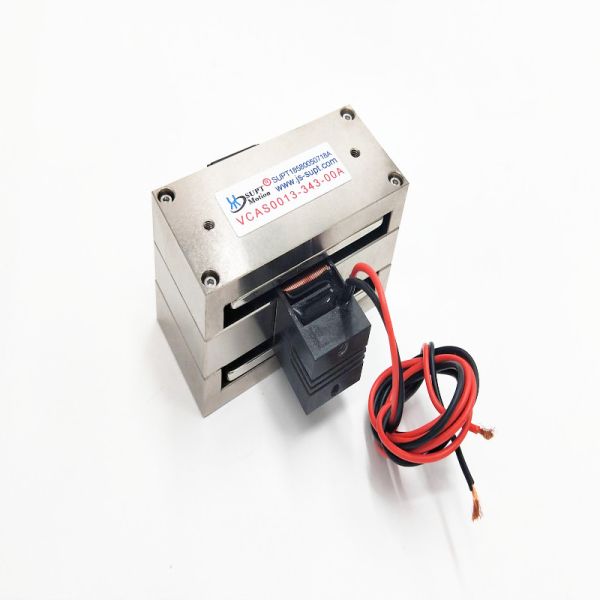

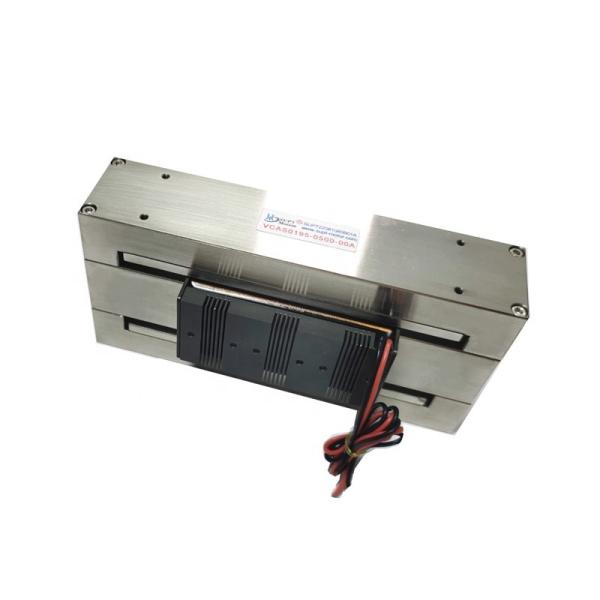

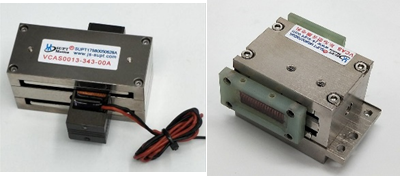

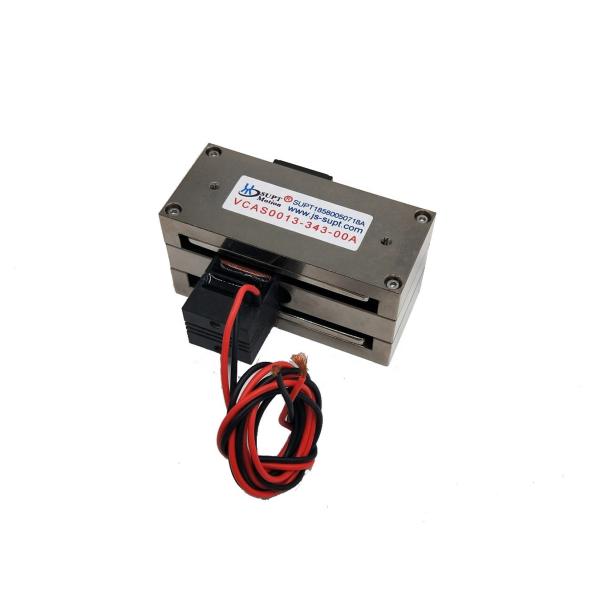

Low Profile Rectangular Voice Coil Motor For High Precision Microscope Stage
Low Profile Rectangular Voice Coil Motor For High Precision Microscope Stage
Low Profile Rectangular Voice Coil Motor For High Precision Microscope Stage
Low Profile Rectangular Voice Coil Motor For High Precision Microscope Stage
Low Profile Rectangular Voice Coil Motor For High Precision Microscope Stage
Low Profile Rectangular Voice Coil Motor For High Precision Microscope Stage
Specifications
Brand Name :
SUPT MOTION
Model Number :
VCAS0002-0498-00A
Certification :
CE, ISO9001，CCC
Place of Origin :
China,Suzhou
MOQ :
1PCS
Price :
$99-$220
Payment Terms :
T/T
Supply Ability :
To be negotiated
Delivery Time :
1-5pcs ,5 days . >20pcs ,To be negotiated
Packaging Details :
Customized packaging etc.
Protect Feature :
Totally Enclosed
Control Method :
Electronic
Total Stroke :
50mm
Construction :
Permanent Magnet
Peak Force :
2.1N
Size :
72× 42.6 × 33mm
Keywords :
Rectangular Voice Coil Motors
Voltage :
11.3V
Weight of the coil :
15g
Speed :
High Speed (rpm)
Type :
Micro Motor
Description

Product Description:

SUPT MOTION’s rectangular linear voice coil motors are ideal direct-drive components for high-precision microscope stages. Designed specifically for applications such as biological microscopy, metallographic observation, precision inspection, and microfluidic observation, they significantly enhance the stage’s positioning accuracy, motion smoothness, and focusing response speed. With its flat and compact design, this rectangular linear voice coil motor is easily integrated into the interior of a microscope stage. It is compatible with XY-axis platforms and Z-axis autofocus mechanisms, eliminating the need for intermediate transmission components such as lead screws and guide rails to achieve precision linear motion with zero backlash, zero return error, and low vibration. When combined with closed-loop position feedback, it enables micron-level precise positioning and high-speed, smooth movement, effectively preventing jitter, drift, and image discontinuities during sample observation, thereby significantly enhancing imaging clarity and observation stability. Its 50mm long-stroke capability meets the demands of wide-range sample scanning, panoramic stitching, and multi-point positioning. Additionally, its low-noise, low-heat, and high-reliability features make it suitable for long-term continuous operation in microscopy applications. It is widely used in life science microscopes, industrial inspection microscopes, fluorescence and confocal microscopes, providing stable, efficient, and precise motion control solutions for high-precision microscopic observation and automated imaging.

Features:

  • Peak Force:2.1N

  • Continuous Force @25℃: 1.3N

  • Total Stroke: 50mm

  • Max Voltage: 11.3 V

  • Back EMF Constant: 1.3V/m/s

  • Coil Weight: 15g

  • Dimensions (L×W×H): 72×42.6×33mm

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Length
(mm)		 Width
(mm)		 Height
(mm)
VCAS0002-0498-00A 2.1 1.3 50 11.3 1.3 15 72 42.6 33
VCAS0002-0747-00A 2.1 1.3 74.7 11.3 1.3 15 100.5 42.6 37
VCAS0006-0030-00A 6.1 3.2 3 13.3 4.6 18.2 25.1 34.1 27
VCAS0006-0099-00A 6.1 3.2 10 13.7 4.6 18.2 33.5 34.1 26.9
VCAS0013-0343-00A 13 8 34.3 12.6 5.8 40 68.3 60 34.8
VCAS0065-1000-00A 65 22.4 100 28.7 9.7 135 170 59.6 81.9

VCAS0002-0498-00A:

Parameter value Parameter value
Model VCAS0002-0498-00A Peak thrust 2.1N
Continuous Thrust (25°C) 1.3N Total stroke 49.8mm
Maximum Voltage 11.3V Back-EMF constant 1.3V/m/s
Length 72mm Width 42.6mm
Height 33mm Coil Weight 15g

Applications:

1.XY microscope stages

2.Laser alignment tables

3.Sensor positioning modules

4.Optical inspection scanning

The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery.
