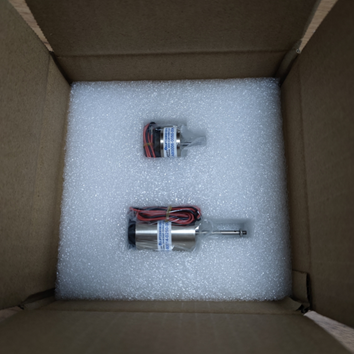

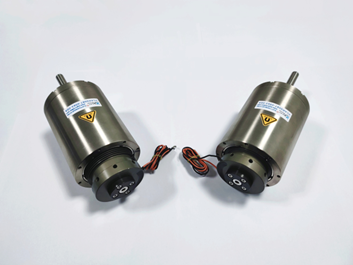

Hiah Stability Linear Voice Coil Motor For High Speed Camera Autofocus Systems
Hiah Stability Linear Voice Coil Motor For High Speed Camera Autofocus Systems
Hiah Stability Linear Voice Coil Motor For High Speed Camera Autofocus Systems
Hiah Stability Linear Voice Coil Motor For High Speed Camera Autofocus Systems
Hiah Stability Linear Voice Coil Motor For High Speed Camera Autofocus Systems
Hiah Stability Linear Voice Coil Motor For High Speed Camera Autofocus Systems
Specifications
Brand Name :
SUPT MOTION
Model Number :
VCAB Series
Certification :
ISO9001,CE,3C
Place of Origin :
China,Suzhou
MOQ :
1PCS
Price :
$113-$170
Payment Terms :
T/T
Supply Ability :
To be negotiated
Delivery Time :
1-5pcs ,5 days . >20pcs ,To be negotiated
Packaging Details :
Customized packaging etc.
Warranty :
3months-1year
Product Model :
VCAB0044-0040-00A
Weight(g) :
46.5
Peak Force (N) :
44
Total Stroke (mm) :
4
Max Voltage （V） :
18.3
Application :
Automatic Product
Speed :
High
Product Type :
Linear Voice Coil Motor
Commutation :
Brush
Continuous force(N) :
16.3N
Application Fields :
3C Electronics, Semiconductor, Automation, Optics, Inspection Equipment
Precision :
High
Description

Product Description:

As the demand for image quality continues to rise in industrial cameras, machine vision systems, surveillance imaging, medical optics, and advanced optical equipment, lens focusing systems are rapidly shifting from traditional mechanical mechanisms to high-speed, closed-loop, micro-positioning solutions.

As digital cameras, industrial cameras, and smart devices continue to advance in terms of imaging quality and automation requirements, the demands on lens focusing system performance are also increasing. Linear voice coil motors, with their direct linear drive, high dynamic response, and high positioning accuracy, have become the core drive solution for modern camera autofocus systems.

In voice coil motor focusing systems, the motor uses electromagnetic force to directly drive the lens group along the optical axis, enabling fast, smooth linear motion and achieving precise autofocus. Compared to traditional stepper motors or gear-driven mechanisms,Linear voice coil motors operate without mechanical contact, backlash, or friction, significantly improving focusing accuracy and repeatability. This makes them an ideal choice for high-frequency, micro-stroke focusing applications.

During high-speed autofocus operation, linear voice coil motors provide high acceleration and rapid response, enabling the lens to quickly search for and lock onto the optimal focus point. Their smooth, continuous motion also minimizes vibration and noise, which is particularly advantageous for video recording and high-magnification imaging.

Features:

  • Micron / Sub-Micron Focusing Accuracy
  • Millisecond Response for Fast Autofocus
  • Smooth, Jitter-Free, Backlash-Free Motion
  • High Repeatability and Long-Term Stability
  • Compact Design for Easy Lens Module Integration

Technical Specifications :

Stroke:4mm

Continuous Force:16.3N

Peak Force:44N

Force Constant:N/A

Resistance:15.25Ω

Mass:good

Dimensions:200*400*400cm

Working Current:1.2A

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10

Hiah Stability Linear Voice Coil Motor For High Speed Camera Autofocus Systems

Applications:

  • Industrial Camera Auto Focus (Machine Vision AF)
  • Intelligent Monitoring and High-Speed Imaging Systems
  • Medical Endoscopy / Microscopic Imaging Focusing
  • AOI / Visual Inspection Lens Systems
  • High-End Photography and Scientific Imaging Equipment
