High Response Linear Voice Coil Actuator For Semiconductor Wafer Inspection
High Response Linear Voice Coil Actuator For Semiconductor Wafer Inspection
High Response Linear Voice Coil Actuator For Semiconductor Wafer Inspection
High Response Linear Voice Coil Actuator For Semiconductor Wafer Inspection
High Response Linear Voice Coil Actuator For Semiconductor Wafer Inspection
High Response Linear Voice Coil Actuator For Semiconductor Wafer Inspection
Specifications
Brand Name :
SUPT MOTION
Model Number :
VCAB Series
Certification :
ISO9001,CE,3C
Place of Origin :
China,Suzhou
MOQ :
2PCS
Price :
$100-$180
Payment Terms :
T/T
Supply Ability :
To be negotiated
Delivery Time :
1-5pcs ,5 days . >20pcs ,To be negotiated
Packaging Details :
Customized packaging etc.
Warranty :
3months-1year
Product Model :
VCAB0044-0075-00A
Weight(g) :
38.6
Peak Force (N) :
44
Total Stroke (mm) :
7.5
Max Voltage （V） :
16.8
Application :
Automatic Product
Positioning Accuracy :
High
Product Type :
Linear Voice Coil Motor
Commutation :
Brush
Continuous force(N) :
13.7N
Application Fields :
3C Electronics, Semiconductor, Automation, Optics, Inspection Equipment
Description

Product Description:

Linear voice coil actuators are especially suitable for precision processes such as alignment, sorting, and wafer handling in semiconductor production lines. Their zero backlash and high repeatability ensure highly accurate micro-displacement operations. The frictionless motion structure further enhances dynamic response capability, making them ideal actuators for precision industrial control systems.

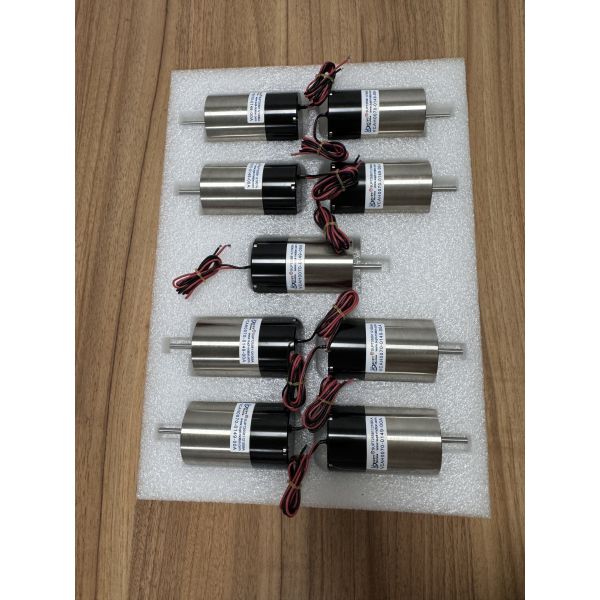

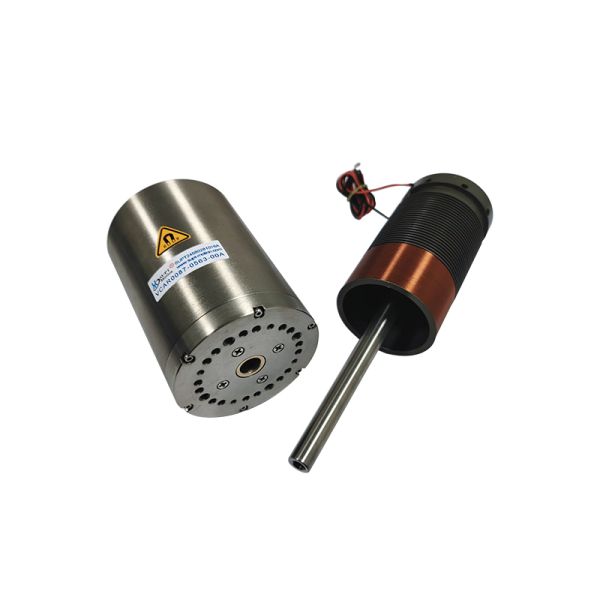

SUPT’s shaft-mounted linear voice coil motor, model VCAB0044-0075-00A, features an integrated motion shaft combined with durable linear bearings to deliver exceptionally smooth motion even under high dynamic loads. Its internal configuration includes a high-energy permanent magnet and a lightweight moving coil, achieving minimal inertia and enabling rapid changes in output force—an essential characteristic for high-performance direct-drive actuators.

Unlike conventional screw-based or gear-driven systems, the VCAB series eliminates all mechanical transmission elements, providing true zero-backlash operation and reducing positioning errors caused by wear or friction. With millisecond-level responsiveness, the motor excels in applications requiring frequent speed adjustments, such as high-speed sorting, machine-vision alignment, and precision motion control stages. When integrated with closed-loop sensing, it can achieve excellent positioning accuracy and repeatability.

Features:

  • High frequency response, suitable for rapid motion cycles
  • Micron-level positioning accuracy
  • Zero backlash, zero cogging, wear-free design
  • High acceleration and smooth linear force output
  • Compact and lightweight structure for flexible integration
  • Long service life and low maintenance requirements


Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10
