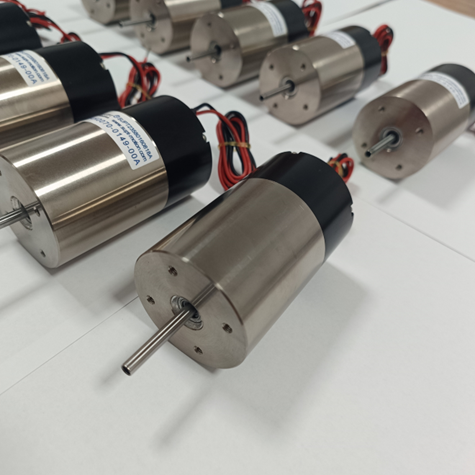

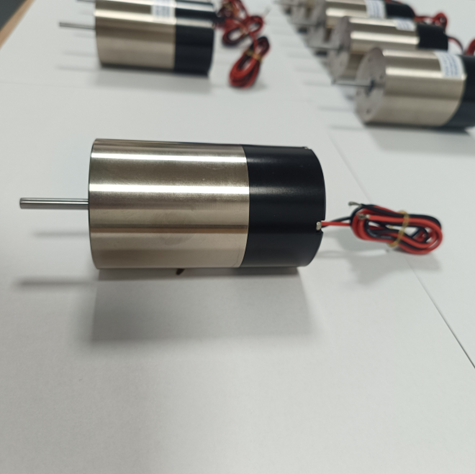

Hiah Performance Linear Voice Coil Actuator For Industrial Automation Precision Tasks
Hiah Performance Linear Voice Coil Actuator For Industrial Automation Precision Tasks
Hiah Performance Linear Voice Coil Actuator For Industrial Automation Precision Tasks
Hiah Performance Linear Voice Coil Actuator For Industrial Automation Precision Tasks
Hiah Performance Linear Voice Coil Actuator For Industrial Automation Precision Tasks
Hiah Performance Linear Voice Coil Actuator For Industrial Automation Precision Tasks
Specifications
Brand Name :
SUPT MOTION
Model Number :
VCAB Series
Certification :
ISO9001,CE,3C
Place of Origin :
China,Suzhou
MOQ :
1PCS
Price :
$110-$175
Payment Terms :
T/T
Supply Ability :
To be negotiated
Delivery Time :
1-5pcs ,5 days . >20pcs ,To be negotiated
Packaging Details :
Customized packaging etc.
Warranty :
3months-1year
Product Model :
VCAB0105-0164-00A
Weight(g) :
150
Peak Force (N) :
105
Total Stroke (mm) :
16.4
Max Voltage （V） :
20
Application :
Automatic Product
Positioning Accuracy :
High
Product Type :
Linear Voice Coil Motor
Commutation :
Brush
Continuous force(N) :
35.4N
Dimensions :
60.4 mm class
Description

Product Description:

The VCAB0105-0164-00A generates linear force directly through electromagnetic interaction between the coil and permanent magnet.The output force is highly linear with respect to current input.

As industrial automation evolves toward higher precision, higher speed, greater consistency, and intelligent control, traditional motion mechanisms such as lead screws, belts, and gear reducers increasingly fail to meet advanced requirements.

As industrial automation continues to advance toward higher speed, greater precision, and increased intelligence, stricter requirements are placed on execution systems in terms of positioning accuracy, dynamic response, and operational stability. Linear Voice Coil Motors (LVCMs), featuring direct-drive operation and outstanding dynamic performance, are widely used in precision execution tasks across industrial automation.

LVCMs utilize electromagnetic force to directly drive linear motion without mechanical contact, transmission components, or backlash. This enables high repeatability and stable micro-positioning control. In applications such as precision assembly, dispensing, welding, inspection, and calibration, voice coil motors can achieve micrometer-level or even sub-micrometer positioning accuracy, significantly improving process consistency and product yield.

For high-speed and high-frequency operations, linear voice coil motors offer high acceleration and rapid response, allowing precise tracking of control commands and complex motion profiles. Their smooth motion and low vibration help reduce mechanical stress and enhance overall system reliability.

Features:

  • Micron or sub-micron positioning accuracy
  • High acceleration and millisecond-level response
  • Zero backlash, zero wear, and highly linear motion
  • Long-term stability under continuous operation

  • No lead screws, gears, or belts

  • Zero backlash and transmission error

  • Fast dynamic response with wide control bandwidth

  • Easy implementation of position, velocity, and force closed-loop control

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10

Hiah Performance Linear Voice Coil Actuator For Industrial Automation Precision Tasks

Applications:

  1. Precision assembly and press-fit actuation
  2. Precision Z-axis actuation modules
  3. High-speed positioning and compensation units
  4. Precision dispensing, welding and bonding machines
  5. Inspection and testing execution stages
  6. Robotic end-effector precision actuation
