High Precision VCM Voice Coil Motor For 3D Inspection Applications
High Precision VCM Voice Coil Motor For 3D Inspection Applications
High Precision VCM Voice Coil Motor For 3D Inspection Applications
High Precision VCM Voice Coil Motor For 3D Inspection Applications
High Precision VCM Voice Coil Motor For 3D Inspection Applications
High Precision VCM Voice Coil Motor For 3D Inspection Applications
Specifications
Brand Name :
SUPT MOTION
Model Number :
VCAR Series
Certification :
CE, ISO9001
Place of Origin :
China,Suzhou
MOQ :
2PCS
Price :
$100-$165
Payment Terms :
T/T
Supply Ability :
To be negotiated
Delivery Time :
1-5pcs ,5 days . >20pcs ,To be negotiated
Packaging Details :
Customized packaging etc.
Total Stroke :
6.4mm
Model :
VCAR0007-0064-00A
Peak Force :
7.8N
Weight :
7.2g
Application :
Automatic Product
Color :
Silver/Black
Continuous force(N) :
2.5
Commutation :
Brush
Protect Feature :
Totally Enclosed
Type :
Micro Motor
Description

Product Description:

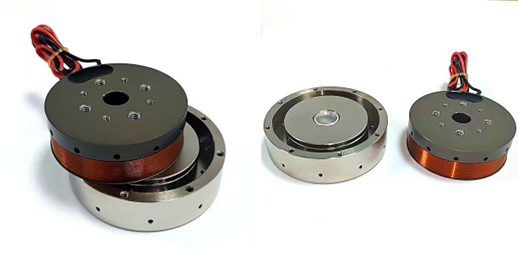

SUPTMOTION cylindrical voice coil motors are specifically designed for high-precision 3D inspection equipment, offering high speed, high acceleration, and exceptional dynamic response. The VCAR series features a direct-drive structure with no mechanical friction or cogging effect, delivering stable, linear, and low-latency motion control. Its lightweight moving element structure provides high-frequency response characteristics, enabling nanometer-level displacement control in 3D imaging systems.

The voice coil motors deliver effective strokes ranging from 1–63mm with peak thrusts spanning 0.7N to 3000N. The entire series supports ultra-smooth motion for applications including microscope autofocus, white-light interferometry scanning, and precise material height measurement.

Industries served encompass medical imaging equipment, semiconductor inspection platforms, aerospace measurement instruments, automotive quality control, and high-speed micro-displacement actuators in automation systems.

Features:

Nanometer-level precision

High speed , high acceleration

Cogging-free, hysteresis-free motion

Millisecond response

Lightweight moving coil

Smooth, frictionless operation

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7

High Precision VCM Voice Coil Motor For 3D Inspection Applications

Applications:

Medical microscopy autofocus

Semiconductor wafer inspection

Aerospace stabilization platforms

Automation and robotics

3D surface scanning

Camera autofocus , LiDAR Z-axis control

FAQ:

Q: Can the VCAR series operate in closed-loop mode?
Yes, it supports linear encoders and optical feedback.

Q: Is the VCAR suitable for 24/7 applications?
Absolutely — frictionless design ensures long service life.
