Description

Product Description

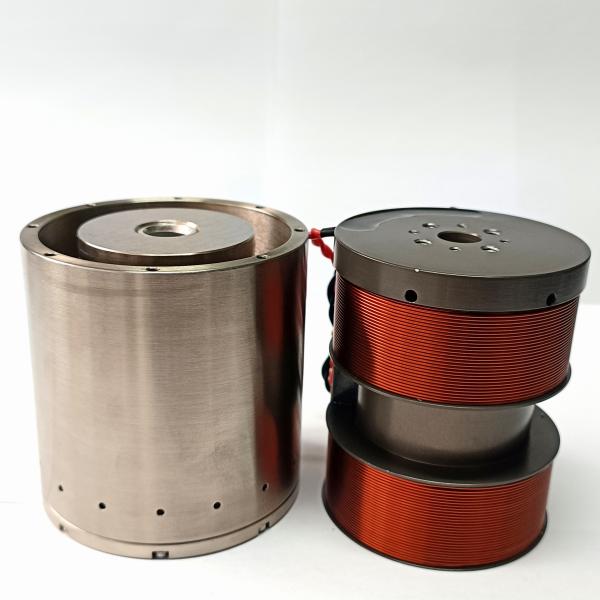

The SUPT MOTION VCAR0087-0563-00A is an ultra-long-stroke cylindrical voice coil motor with a peak thrust of 87 N and a total stroke of 56.3 mm. This voice coil motor is specifically designed for large-scan optical systems, long-stroke precision positioning, and metrology equipment requiring long-distance linear motion without mechanical transmission.

This voice coil motor delivers a continuous thrust of 17.5 N at 25°C, meeting the demands of sustained scanning. With a back-EMF constant of 8.1 V/m/s, it provides moderate speed feedback. The moving coil weighs 177 g, and the motor operates at a maximum voltage of 63.4 V. With overall dimensions of a 72 mm stator diameter and 110 mm length, it is suitable for integration into large optical stages or scanning platforms.

Long-distance, smooth, and precise linear motion is critical in optical delay lines for Fourier transform infrared (FTIR) spectrometers or terahertz imaging. This voice coil motor features a direct-drive, gearless design, ensuring that no scanning artifacts are introduced due to mechanical backlash or friction. The 56.3 mm stroke enables significant changes in optical path length.

This cylindrical voice coil motor is also well-suited for large-scale 3D scanning or coordinate measuring machine (CMM) applications, where probes must travel long distances while maintaining precision. Compared to ball screws or belt drives, voice coil motors eliminate wear and backlash, thereby improving long-term calibration stability.

Specifications:

Peak Force: 87 N

Continuous Force @25℃: 17.5 N

Total Stroke: 56.3 mm

Max Voltage: 63.4 V

Back EMF Constant: 8.1 V/m/s

Coil Weight: 177 g

Stator Diameter: 72 mm

Length: 110 mm

Technical Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7


Applications:

1.FTIR spectrometer scanning

2.Terahertz optical delay lines

3.Large-format 3D scanning

4.Coordinate measuring machines (CMM)

5.Long-travel precision positioning
