Customized Material Conveying Systems Powered by Voice Coil Motor Vibrating Feeders
Customized Material Conveying Systems Powered by Voice Coil Motor Vibrating Feeders
Customized Material Conveying Systems Powered by Voice Coil Motor Vibrating Feeders
Customized Material Conveying Systems Powered by Voice Coil Motor Vibrating Feeders
Customized Material Conveying Systems Powered by Voice Coil Motor Vibrating Feeders
Customized Material Conveying Systems Powered by Voice Coil Motor Vibrating Feeders
Specifications
Model Number :
VCAZ0010-0020-00A
Total Stroke :
1.5mm
Price :
USD 60-200 / Piece
Back EMF Constant :
2.7 V/m/s
Certification :
ISO9001-2000
MOQ :
1 Piece
Delivery Time :
3-5 working days for samples, 15-25 days for bulk
Service Life :
10,000 hours
Payment Terms :
T/T
Motor Type :
Vibrating Voice Coil Motor
Coil Weight :
13g
Max Voltage :
14.8 V
Supply Ability :
To be negotiated
Peak Torque :
4.2 N-m
Brand Name :
SUPT MOTION
Continuous Torque at 25 C :
2.2 N-m
Packaging Details :
Export-grade carton with anti-static foam protection
Material :
Aluminum Alloy
Place of Origin :
Jiangsu, China
Product Model :
VCAZ0010-0020-00A
Description

Product Overview

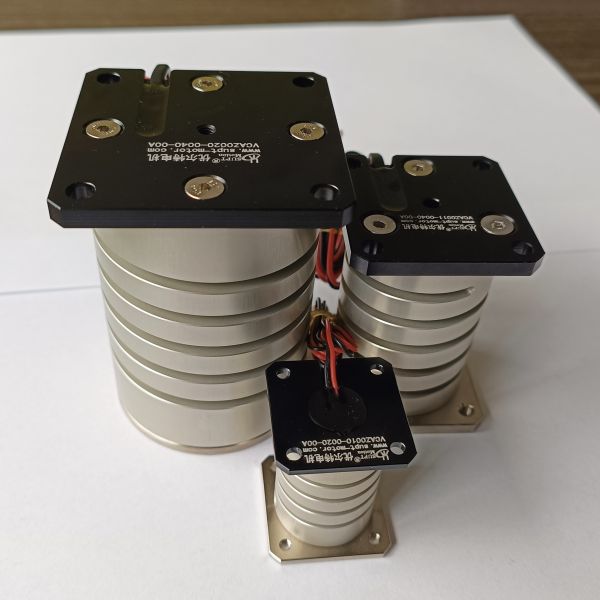

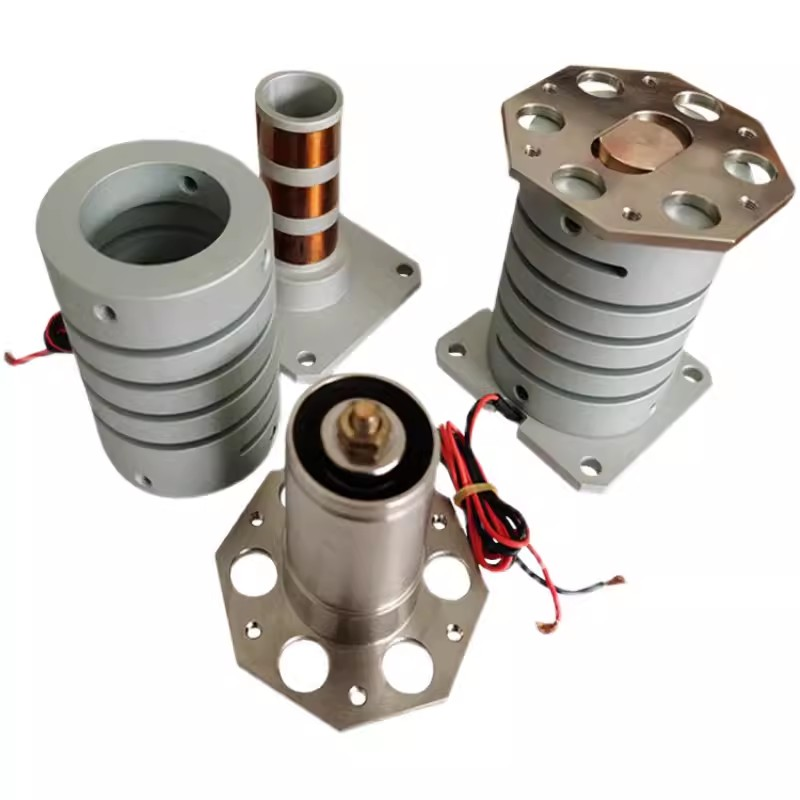

The SUPT MOTION Flexible Vibration Voice Coil Motor (VCAZ Series) is the core power unit specifically designed for flexible vibrating feeders.

Manufactured in large quantities using high-strength, high-stability materials, the springs and motors undergo 100% measurement and testing to ensure product stability and consistency.

Through high-frequency linear motion in both vertical directions, the voice coil motor drives workpieces to move in multiple directions within the feeder tray, enabling smooth material conveyance and orientation.

Compared to traditional electromagnetic vibratory feeders, the voice coil motor drive solution offers the following advantages: programmable adjustment of frequency and amplitude, allowing adaptation to different materials without replacing mechanical components; millisecond-level start-stop response, enabling precise control of individual parts; and smooth motion without mechanical impact, making it gentler on fragile materials. Flexible vibration voice coil motors are widely used in automated assembly lines across industries such as electronic components, precision hardware, and medical consumables.


Product Advantages

Programmable Parameters: Frequency, amplitude, and waveform are adjustable in real time

Fast Response: Millisecond-level start/stop for precise material control

Smooth Motion: Shock-free operation protects vulnerable components

Multi-Directional Feeding: Enables omnidirectional conveying when combined with multi-axis systems

100% Full Inspection: 100% testing of springs and motors

Vibrating bowl voice coil motors, flexible vibrating feeders, material handling motors, high-frequency vibrating actuators, flexible vibrating bowl drives

Customized Material Conveying Systems Powered by Voice Coil Motor Vibrating Feeders

Specifications

Parameter Typical Value
Thrust Range Custom
Stroke Range Custom
Operating Voltage 14.8V DC
Response Frequency Adjustable
Amplitude Adjustment Program-controlled
Service Life ≥100 million cycles


Model Number VCAZ0010-0020-00A
Coil parameters Tolerance Symbol Value Unit
DCR ±10% R 9.5 Ω
Peak Voltage standard value Vp 14.8 V
Maximum current standard value Ip 1.6 A
Force constant ±7.5% KF 2.7 N/A
Back EMF constant standard value KD 2.7 V/M/Sec
Inductance ±30% L 0.37 mH
Actuator paramters Symbol Value Unit
Peak force Fp 4.2 N
Continuous stall force Fc 2.2 N
Actuator coonstant Ka 0.87 N//W
Electrical time constant Te 0.04 milli-sec
Pmax Pp 24 W
Stroke S 1.5 mm
Clearance of each side of coil CL 0.8 mm
Thermal resistance Oth 20 ℃/W
Maximum coi temp allowed Tmax 150 ℃
Weight of coil WTc 13 g
Weight of magnet steel WTE 56 g
Weight of Actuator WTa 69 g

Application

Flexible Vibration Feeding for Electronic Components
Orientation Sorting of Precision Metal Parts
Automated Assembly and Feeding of Medical Consumables
Multi-Directional Feeding of Irregularly Shaped Parts
Conveyor Systems for Small-Batch, High-Variety Materials


Customization Information:
This product supports customization of thrust, stroke, and amplitude parameters to accommodate different materials and feeding speed requirement
