High Positioning Accuracy Linear Voice Coil Compact Linear Voice Coil Motor
High Positioning Accuracy Linear Voice Coil Compact Linear Voice Coil Motor
High Positioning Accuracy Linear Voice Coil Compact Linear Voice Coil Motor
High Positioning Accuracy Linear Voice Coil Compact Linear Voice Coil Motor
High Positioning Accuracy Linear Voice Coil Compact Linear Voice Coil Motor
High Positioning Accuracy Linear Voice Coil Compact Linear Voice Coil Motor
Specifications
Brand Name :
SUPT MOTION
Model Number :
VCAP Series
Place of Origin :
Jiangsu, China
Certification :
ISO9001
MOQ :
≥1
Price :
$107
Packaging Details :
Carton Packaging etc
Delivery Time :
1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
Payment Terms :
T/T
Supply Ability :
Interview
Operating Temperature :
Wide
Product Name :
Linear Voice Coil Actuator
Stroke Length :
4mm
Protection :
IP67
Size :
Compact
Type :
Flat Type Voice Coil Motor
Positioning Accuracy :
High
Product Model :
VCAP0100-0020-00A
Voltage :
41V
Peak Force :
100N
Description

High Positioning Accuracy Compact Linear Voice Coil Motor for Long Lifetime

Product Description:

Linear Voice Coil Actuator is an advanced voice coil linear motor actuation system designed for high-precision positioning accuracy, long lifetime, high duty cycle, and compact size. It delivers smooth and accurate performance even in tough conditions and is IP67-rated for protection against dust, dirt, and water. This voice coil linear motor actuation system provides a reliable, compact, and cost-effective solution for a wide range of applications. With its high precision, long lifetime, and robust protection, it is an ideal choice for applications with stringent requirements.

The VCAP series Planer Actuators have a lower stroke length per size than Rectangular,But they also have a lower height profile .Forces range up to 500N and strokers to 15mmThe VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.

Features:

  • Linear Voice Actuation System
  • Voice Coil Actuation Mechanism
  • IP67 Protection Rating
  • 41V Voltage Input
  • 4mm Stroke Length
  • Long Lifetime
  • High Force

Technical Parameters:

Parameter Linear Voice Coil Actuator
Product Name Linear Voice Coil Actuator
Type Flat Type Voice Coil Motor
Model Number VCAP Series
Stroke Length 4mm
Input Voltage 41V
Speed High
Noise Level Low
Duty Cycle High
Lifetime Long
Positioning Accuracy High
Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Length
(mm)		 Width
(mm)		 Height
(mm)
VCAP0020-0068-00A 20 5.5 6.8 8.2 4.4 39 50 21.5

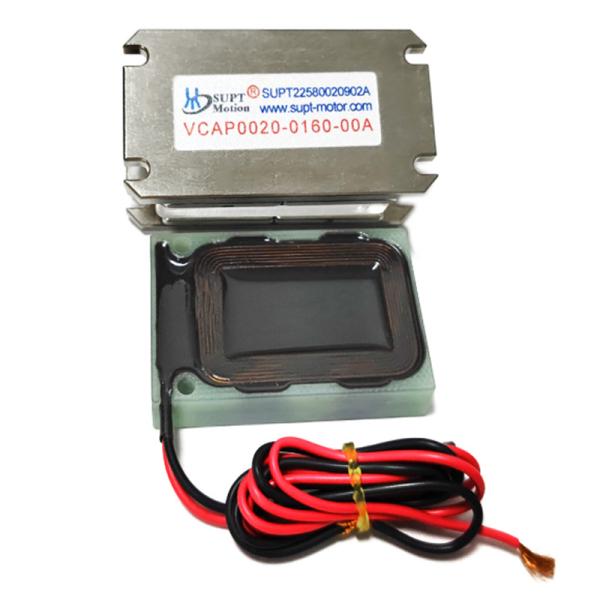

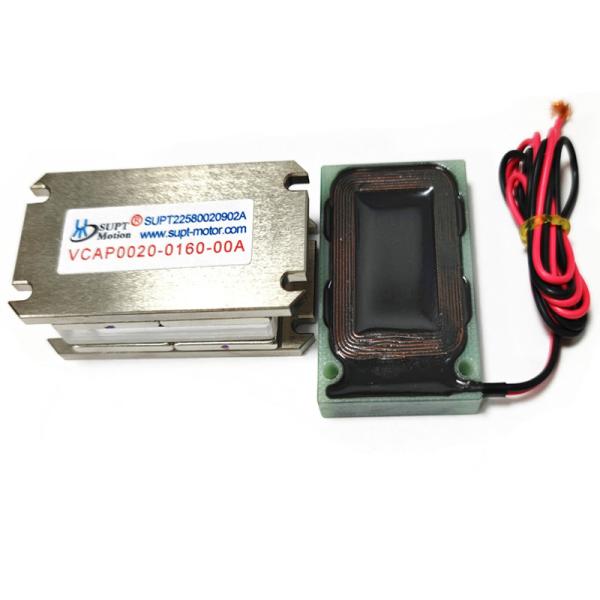

VCAP0020-0160-00A 20 5.3 16 27.6 4.4 59 50 22.5
VCAP0030-0020-00A 30 12.3 20 24.3 10.5 80 74 25
VCAP0100-0020-00A 100 47 4 41.2 80.1 110 105 51

Applications:

SUPT MOTION's VCAP Series Linear Voice Coil Actuator provides an ideal solution for linear motion applications, making it ideal for a wide range of industries. It is a high performance linear actuation system with a low profile design, offering a long life and high force output. With its high duty cycle and IP67 protection, this actuator is perfect for challenging environments. This Linear Voice Coil Actuator is designed for both low and high voltage applications. It can be used with an input voltage 41V, providing high force output and long lifetime. The motor is certified with ISO9001 standards and comes with a minimum order quantity of 1. The price is $107 and is available in carton packaging, with delivery time ranging from 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment Terms include T/T , and the Supply Ability is interviewed.

It is widely used in semiconductor, precision test and detection​ ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.

High Positioning Accuracy Linear Voice Coil Compact Linear Voice Coil Motor
