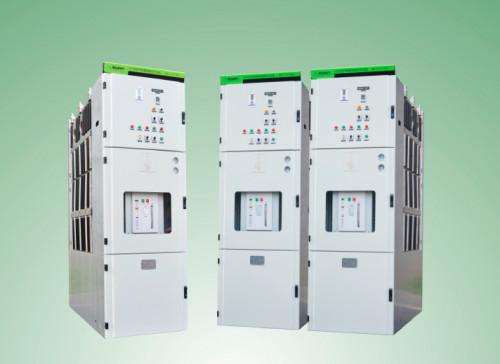

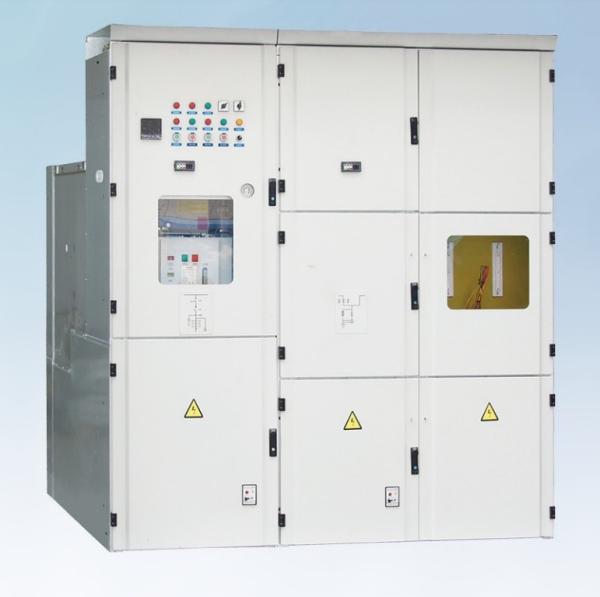

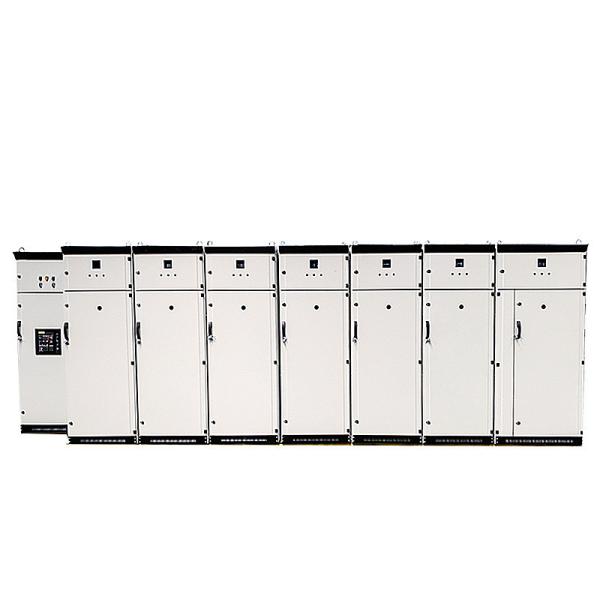

YSR6-12 SF6 Insulated RMU Medium Voltage Ring Main Unit MV&HV Switchgear
YSR6-12 SF6 Insulated RMU Medium Voltage Ring Main Unit MV&HV Switchgear
YSR6-12 SF6 Insulated RMU Medium Voltage Ring Main Unit MV&HV Switchgear
YSR6-12 SF6 Insulated RMU Medium Voltage Ring Main Unit MV&HV Switchgear
YSR6-12 SF6 Insulated RMU Medium Voltage Ring Main Unit MV&HV Switchgear
YSR6-12 SF6 Insulated RMU Medium Voltage Ring Main Unit MV&HV Switchgear
YSR6-12 SF6 Insulated RMU Medium Voltage Ring Main Unit MV&HV Switchgear
YSR6-12 SF6 Insulated RMU Medium Voltage Ring Main Unit MV&HV Switchgear
Specifications
Brand Name :
Eberry
Model Number :
YSR6-12/24/40.5
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, Western Union, Western Union, MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
5-8 work days
Rated voltage :
12/24/40.5kv
Rated frequency :
50 HZ
Rated current :
630/1250/2500/3150/4000A
Description

Our Catalogue

  1. Based on international advanced concepts, with world-class production,testing methods,laser welding,laser cutting and hellumleak detection equipment;
  2. The primary components of the product are fully sealed in stainless-steel-plate-welded sealed gas tank, filed with SF6 gas at acertain pressure as the insulating medium, and its protection grade is lP67 to prevent any influence from external environmentsand climate to the switchgear cabinet: it can run reliably in basement, plateau, tundra, coastal, humid and other harshenvironments without maintenance.
  3. The product can be actuated manually or electrically, and the actuator is mature and reliable with complete mechanical andelectrical interlocks to effectively prevent personal injury and equipment damage due to any error in operation.
  4. The product is compact, compared with traditional air-insulated switchgear, it is significantly smaller and the floor area occupiedis less by 30％-70% to improve space utilization efficiency and effectively reduce comprehensive engineering cost.The protection and system technology based on microprocessor combines protection, control, metering, detection andcommunication functions to make the power distribution network automatic and digital without personnel on duty.

Item Unit Parameter
Rated voltage kV 12 24 40.5
Rated frequency Hz 50
Rated current A 630/1250/2500/3150/4000/630/1250/2500
Power frequency withstand voltage (phase-to-phase and phase-to-ground) kV 42 65 95
Power frequency withstand voltage (insulation breaking) kV 48 79 118
Lightning impulse withstand voltage (phase-to-phase and phase-to-ground) kV 75 125 185
Lightning impulse withstand voltage (insulation breaking) kV 85 145 215
Rated power frequency withstand voltage of auxiliary circuit kV 2
Rated instantaneous withstand current kA 25/31.5/40
Rated short-circuit period s 3
Rated peak withstand current kA 63/80/100 63/80/100 50/63/80
Rated short-circuit breaking current of circuit breaker kA 25/31.5/40 25/31.5/40 25/31.5
Rated short-circuit closing current of circuit breaker (peak) kA 63/80/100 63/80/100 50/63/80
Rated cable charge breaking current A 25
Rated operating sequence O-0.3s-CO-3min-CO
Insulation gas SF6
Mechanical life Time 10000
Three-position switch Time 5000
Rated charge pressure (abs, 20°C) Mpa 0.14
Minimum charge pressure (abs, 20°C) Mpa 0.12
Sealed enclosure Grade IP67
Switch shell Grade UP4X
Annual relative leak rate of dry air %/year ≤0.1
Rated power voltage of auxiliary circuit V DC48/110/220 AC220
