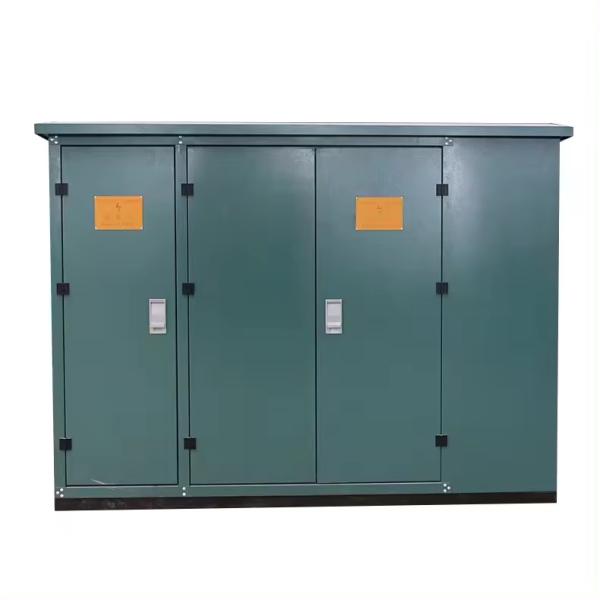

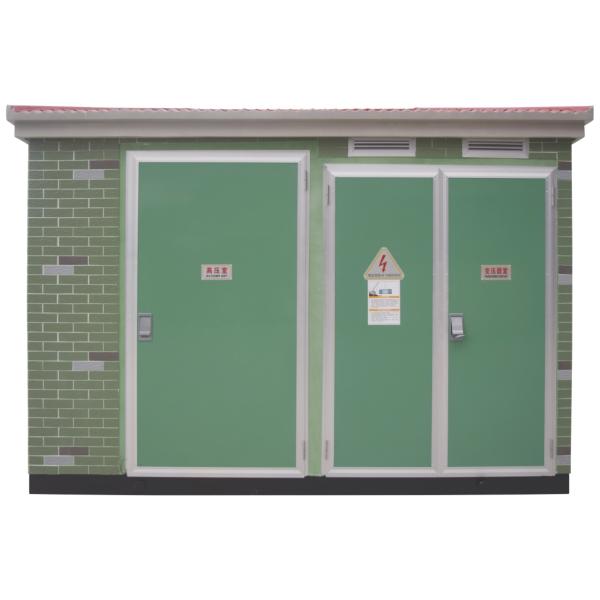

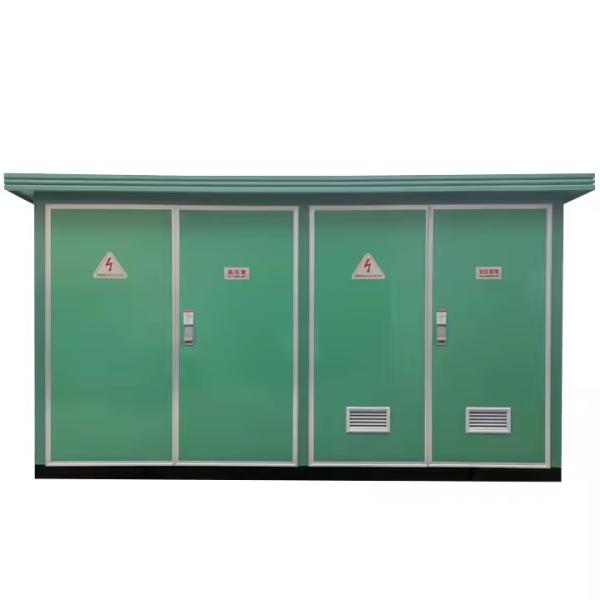

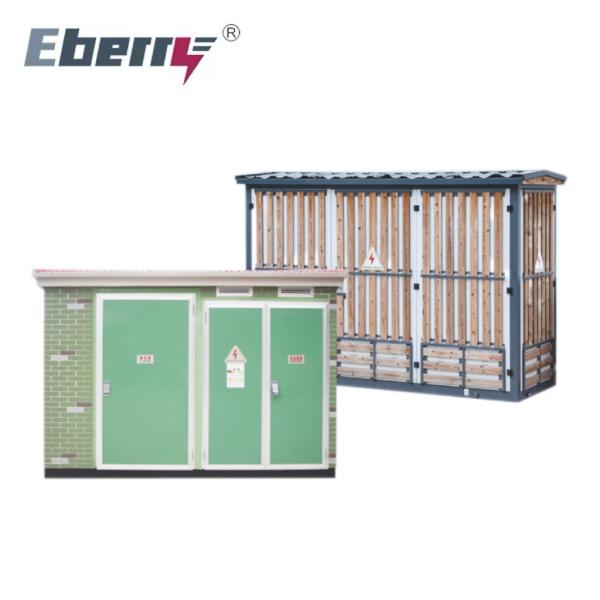

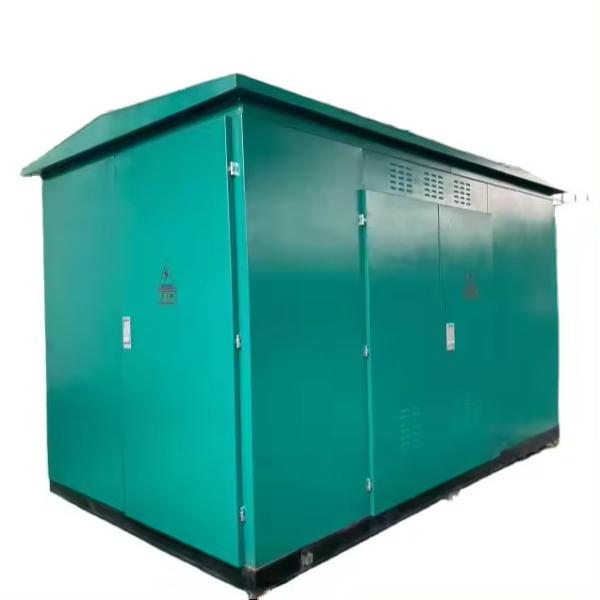

YB-12 Outdoor Pre-Installed Substation European
YB-12 Outdoor Pre-Installed Substation European
YB-12 Outdoor Pre-Installed Substation European
YB-12 Outdoor Pre-Installed Substation European
YB-12 Outdoor Pre-Installed Substation European
YB-12 Outdoor Pre-Installed Substation European
YB-12 Outdoor Pre-Installed Substation European
YB-12 Outdoor Pre-Installed Substation European
YB-12 Outdoor Pre-Installed Substation European
YB-12 Outdoor Pre-Installed Substation European
Specifications
Brand Name :
Eberry
Model Number :
YB-12
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/month
Packaging Details :
Plywood carton
Description

Catalogue

Eberry switchgear catalogue in Russian.pdf

Eberry switchgear catalogue.pdf

EBERRY VCB CATALOGUE.PDF

Product description

YB-12 series box-type substation is the combination of high-voltage electrical equipment,transformers, low-voltage electricaequipment into a compact complete set of power distribution devices, used in urban high-rise buildings, urban and rural bulldingsresidential communities, high-tech development zones, small and medium-sized factories, mining oil fields and temporaryconstruction of electricity and other places, for the distribution system to accept and distribute electricity.

This product has the characteristics of strong complete set, small size, compact structure, safe and reliable operation, easymaintenance, and mobile, and occupies an area of the same capacity of conventional civil substation, 1/10-1/5, greatly reducingthe construction cost, in the distribution system can be used for ring network distribution system, can also be used for dual powelsupply or radiation terminal distribution system, is the current urban and rural substation construction and transformation of thefirst choice of new complete sets of equipment, This product complies with GB/T17467 "High voltage/low voltage preassembledsubstation" standard andlEC1330 standard.

Product Paramenters

Item Name
Unit
Data
Rated Frequency
Hz
50
High Voltage
kV
7.2, 12
Rated Current
A
400-1250
Low Voltage
V
380, 220
Main Busbar Rated Current
A
400-4000
AC Rated Voltage
KV
10-800
Number of Circuits
Based on user requirements
Shunt Capacitor
kVar
Based on user requirements
Transformer Capacity
kVA
50-2500
Transformer Loss
%
±2×2.5% ±5%
Neutral Point
Y,yn0; Dyn11

Normal service condition

  • Altitude: less than 1000m;
  • The ambient temperature shall not exceed +40"C; The minimum is not lower than -25°C
  • The average temperature in the 24-hour cycle does not exceed +35°C
  • The horizontal acceleration ofthe earthquake is not more than 0.4m/s’, and the vertical acceleration is not more than 0.2m/s².
  • No violent vibration and shock and explosion danger.
