JCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High Voltage
JCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High Voltage
JCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High Voltage
JCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High Voltage
JCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High Voltage
JCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High Voltage
Specifications
Brand Name :
Eberry
Model Number :
JCQ-2/800
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
Plywood carton
Description
Eberry switchgear catalogue in Russian.pdf
Eberry switchgear catalogue.pdf
EBERRY VCB CATALOGUE.PDF
Products Description

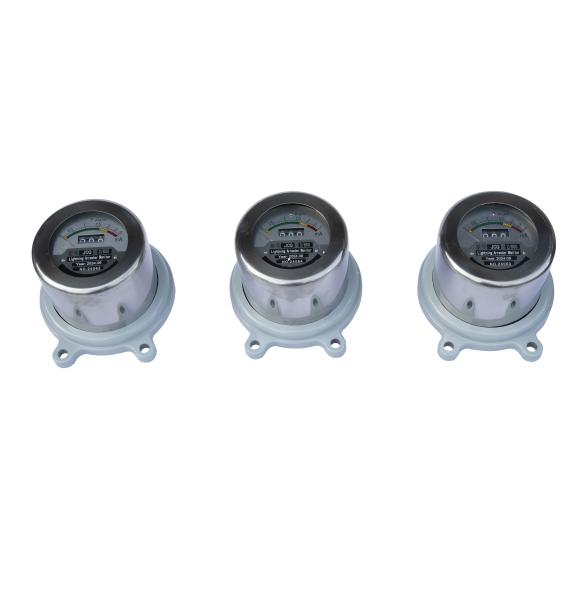

JCQ-2/800 Arrester Monitor
The JCQ-2/800 arrester monitor is a high-performance device designed to continuously monitor the condition of surge arresters in power systems. Installed at the grounding end of the arrester, this monitor serves multiple purposes:
1. Leakage Current Monitoring: It tracks the leakage current of the arrester in real-time. Abnormal increases in leakage current can indicate issues such as moisture ingress or aging of the arrester, allowing for timely maintenance or replacement.
2. Lightning Strike Counter: The monitor records the number of lightning strikes or abnormal current events the arrester has experienced. This data helps assess the arrester's operational load and its remaining service life.
3. Fault Diagnosis: By analyzing the data from the monitor, potential arrester faults can be predicted, ensuring reliable protection of the electrical system and preventing equipment damage.
4. Data Collection and Analysis: The JCQ-2/800 provides valuable data for long-term performance evaluation, enabling a more efficient maintenance schedule and extending the arrester’s lifespan.
With its ability to monitor arresters rated up to 800A, the JCQ-2/800 is an essential tool for ensuring the stability and safety
of medium- to high-voltage power systems.
Serial No.
Main Features
JCQ-2/800 JCO-5/1800
1
Applicable to rated voltage of power system (RMS)
6~220
330~500
2
Nominal discharge current level 8/20us kA (peak)
10
10 20
3
Counting current range 8/20us A (peak)
50~10000
50~10000 50~20000
4
Residual Voltage <8/20us kV (Peak Value) under Nominal Discharge Current
3.0
3.0
5
2000 US 18 th power current shock tolerance A (peak value)
800 1500 2000
1500 2000 4000
6
High current tolerance kA of 4/10us 2 shocks (peak value)
65
100
7
Current measurement range mA
0~2
0~5
8
Counting range
Three's place 000
9
Weight
2.0
2.0

JCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High VoltageJCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High VoltageJCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High VoltageJCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High VoltageJCQ-2/800 Arrester Monitor For Distribution Lines Electrical Component Arrester Applicable To 3KV-110KV High Voltage
