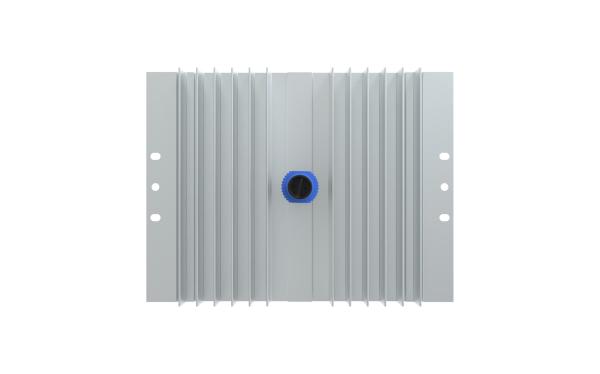

24V 48V Square High Luminous Outdoor LED Module 30W 75W High Bay Light Module
24V 48V Square High Luminous Outdoor LED Module 30W 75W High Bay Light Module
24V 48V Square High Luminous Outdoor LED Module 30W 75W High Bay Light Module
24V 48V Square High Luminous Outdoor LED Module 30W 75W High Bay Light Module
24V 48V Square High Luminous Outdoor LED Module 30W 75W High Bay Light Module
24V 48V Square High Luminous Outdoor LED Module 30W 75W High Bay Light Module
24V 48V Square High Luminous Outdoor LED Module 30W 75W High Bay Light Module
24V 48V Square High Luminous Outdoor LED Module 30W 75W High Bay Light Module
Specifications
Brand Name :
Vbrite
Model Number :
VB-M25
Place of Origin :
China
MOQ :
10PCS
Packaging Details :
Carton Packing
Delivery Time :
10~15Day
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Name :
High Luminous Outdoor LED Module
Material :
Die-casting aluminum
Power :
30~75W
LED Chip :
SMD7070 (18PCS)
CCT :
2700K~5700K
CRI :
Ra>70（>80，>90potional)
Beam Type :
60°/90°
IP Rating :
IP67
Lifetime :
>50,000 hours
Description

24V 48V Square High Luminous Outdoor LED Module 30W 75W High Bay Light Module


Product Description


The VB-M25 series is a high-performance LED lighting solution designed for harsh industrial environments. It offers a wide power range of 30-75W and dual beam angles of 60°/90°. It is made of aircraft-grade aluminum and has an excellent IP67 protection rating, making it an ideal choice for industrial lighting, commercial spaces and outdoor applications.


Specification


Model VB-M25
Power 30~75W
Input Voltage DC50-52V
LED Chip SMD7070(10PCS) SMD7070(22PCS)
CCT 2700K~5700K
CRI Ra>70(>80,>90potional)
Efficiency 180~210lm/w 190~220lm/w
Lumen flux (±5%) 5400~15750LM 5700~16500LM
Beam angle 145x85° 60°/90°
IP rating IP67
Ambient Temp.(°C) -40℃~50℃ ,20%~90% H.R
Storage Temp.(°C) -40℃~55℃10%~90% H.R.
Lifetime >50,000 hours
Body material Die-casting aluminum
Dimension 200*150*44mm 200*150*45mm
N.W.(per pcs) 750g
Carton size(mm) 310*210*130mm (6pcs/ctn)


Features

  1. High performance SMD7070
  2. Optimized extrusion aluminum design for superior thermal management.
  3. Professional optical glass lens design, higher light output and more precise direction.
  4. Die-casting aluminum heat sink. IP67 waterproof.

Advantage

  1. VB-M25 has a light efficiency of up to 200lm/W, modular design 60% lower maintenance cost, and 5-year maintenance.
  2. Provide customized optical solutions, passed CE, RoHS, ENEC and other certifications
  3. Provide OEM/ODM customization services.

Application


This module can be widely use in high bay lighting (warehouse, workshop), flood lighting (square,road, dock,fishing boat, gas station) etc.
