5050 LED PCB Module 60W 30W 40W 50W 70W IP68 Waterproof LED High Mast Lights
5050 LED PCB Module 60W 30W 40W 50W 70W IP68 Waterproof LED High Mast Lights
5050 LED PCB Module 60W 30W 40W 50W 70W IP68 Waterproof LED High Mast Lights
5050 LED PCB Module 60W 30W 40W 50W 70W IP68 Waterproof LED High Mast Lights
5050 LED PCB Module 60W 30W 40W 50W 70W IP68 Waterproof LED High Mast Lights
5050 LED PCB Module 60W 30W 40W 50W 70W IP68 Waterproof LED High Mast Lights
Specifications
Name :
LED PCB Module
Power :
12W~40W
Model :
VB-M23
Efficiency :
160~190lm/W
CCT :
2700-6500K
CRI :
>70(>80, >90 optional)
IP rating :
IP66
Lifetime :
>50,000 hours
Beam Angle :
Type II / III / IV / V / 30° / 60° / 90°/80*40°
MOQ :
10PCS
Packaging Details :
Carton Packing
Delivery Time :
10~15Day
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Description

60 Watt 30W 40W 50W 70W Ip68 Waterproof Outdoor Lighting Led High Mast Lights Module

Product Description

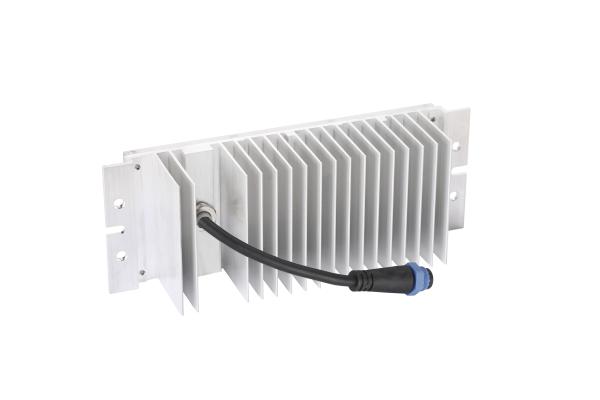

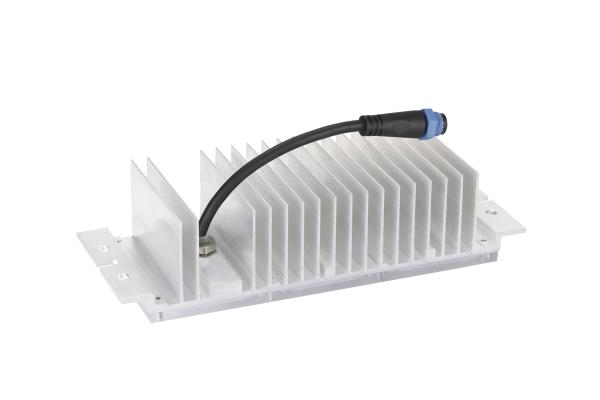

VB-M23 LED module uses a 5050 high-power chip with a VC44 constant current driver solution, providing a wide power range of 12W-40W, suitable for outdoor and industrial lighting scenarios. With an IP66 waterproof and dustproof rating, it can operate stably in harsh environments, with a light efficiency of up to 160-190LM/W, taking into account both high brightness and energy-saving requirements, and is an ideal choice for advertising lighting, building floodlighting, warehouses, mining and other applications.

Specification

Model VB-M23
Power 12W 20W 30W 40W
Driving Current 0.27A 0.45A 0.68A 0.91A
Voltage DC44-48V
LED chip SMD5050
CCT 3000K/4000K/5000K/5700/6000K
CRI >70(>80, >90 optional)
Efficacy 190lm/W 180lm/W 170lm/W 160lm/W
Lumen Flux 2280lm 3600lm 5100lm 6400lm
Beam angle Type II / III / IV / V / 30° / 60° / 90°/80*40°
IP rating IP66
Working Temp.(°C) -40℃~50℃ , 20%~90% RH
Storage Temp.(°C) -40℃~50℃ , 10%~90% RH
Lifetime >50,000 hours
Main Material Aluminum6063 + Optical PC
Product Dimension 200x72x55mm
Carton 430x410x190mm, 40pcs/CTN
N.W.(KG) 0.43KG/PCS

Features

  1. Use prefect anodizing aluminum alloy heatsink,improve the service life of radiator.
  2. Excellent operating temperature -40°C~ 50°C.
  3. High performance design with multi-chips package 5050 LED source.Stableperformance,low light failure and NO dead lights.
  4. Variety beam angles, Type ll,Ill,IV,V/30°/60°/90°/80x40° .
  5. High safety, low voltage input voltage is safe for people, which effectivelyprevents electric shock and electric leakage.
  6. Easy to assemble and maintain with national standard M15 electrical interface achieved plugged and play,only need loosening the screw during maintenance
  7. Green product,no UV,IR radiation or mercury pollution.Passed IEC62471.
  8. With excellent housing design reach IP66 rating.
  9. Life-span over 50,000 hours,5 years warranty.

Application

Road, Mo-torway, Urban Resi-dential Street, Bike, Sidewalk paths, Public squares, Sidewalk Street, Parking, Bridges, Industrial areas, Stadium lighting
