Specifications
Brand Name :
Vbrite
Model Number :
VB-SF28
Place of Origin :
China
Name :
High Mast Pole Light
Power :
500W/ 1000W/ 1500W/ 2000W
LED Chip :
Lumileds 3030/ 5050 or domestic 5050
CCT :
3000K/4000K/5000K/5700K
CRI :
80
Beam Type :
15° / 30° / 45° / 60° / 120°
IP Rating :
IP66
Lifetime :
>50,000 hours
MOQ :
10PCS
Packaging Details :
Carton Packing
Delivery Time :
10~15Day
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Description

Led Stadium Sport Light Outdoor Waterproof Industrial 30m Led High Mast Pole Led Stadium Lighting Modular Design 1800w

Product Description

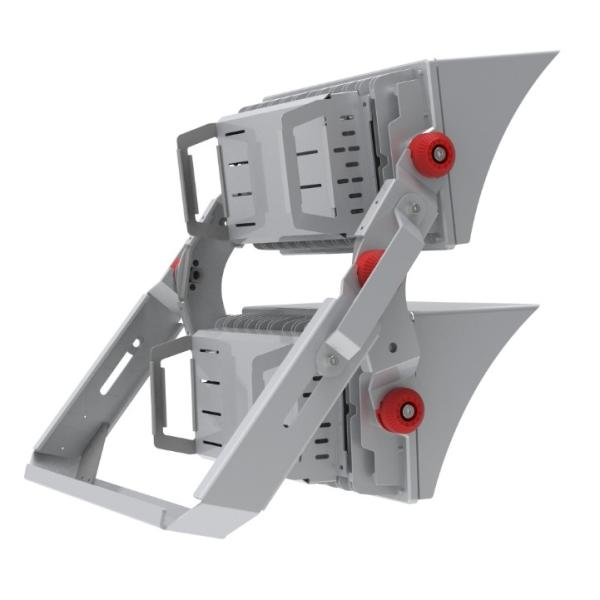

VB-SF-28 high-power LED stadium light is designed for large sports venues such as outdoor stadiums, football fields, basketball courts, tennis courts, etc. It adopts 5050/3030 high-brightness LED chips, covers a power range of 500W-2000W, supports 15°, 30°, 45°, 60°, 120°, and supports multiple beam angle adjustments. It is equipped with an IP66-level waterproof and dustproof structure to ensure stable operation in harsh environments such as heavy rain and dust, and provide a high-brightness, glare-free, and uniformly illuminated event-level light environment.

Specification

Model

VB-SF28-500

VB-SF28-1000

VB-SF28-1500

VB-SF28-2000

Power

500W

1000W

1500W

2000W

Voltage

AC90-305V, 50/60

LED chip

Lumileds 3030/ 5050 or domestic 5050

CCT

3000K/4000K/5000K/5700K

Ra

80

Power Factor

95%

Surge Protectin

10KV

Beam Angle

15° / 30° / 45° / 60° / 120°

Efficacy

150±10%LM/W

150±10%LM/W

150±10%LM/W

150±10%LM/W

Lumen Flux

67500±10%LM

135000±10%LM

202500±10%LM

270000±10%LM

IP Rating

IP66

Working Temp.(°C)

-40℃~+55℃, 10%~90%RH.

Storage Temp.(°C)

-40℃~85℃

Lifetime

>50,000 hours

N.W.(KG)

13.5KG

25.8KG

40.5KG

48.5KG

Product Dimension

563x413x313mm

665x574x603mm

665x811x885mm

1166x573x603mm

Features

  1. New design modular high power(500-2000w) stadium/sports filed light
  2. Beam angle(15° / 30° / 45° / 60° / 120°) optional, with high efficacy of 150lm/w and IP66 rating
  3. Equipped with SPD and DMX512 for precise control, can provide simulation.

Advantage

  1. Adopting 5050/3030 high-efficiency LED chips,
  2. The maximum single lamp power is 2000W, the luminous efficiency is 150-200LM/W,
  3. High color rendering index (RA>80), truly restores the color of the sports scene, and reduces visual fatigue.

Application

Football Stadium, Basketball Stadium, Golf Course, Tennis Stadium
