Specifications
Brand Name :
Vanka
Certification :
ISO9001：2015,CE
Place of Origin :
China
MOQ :
50 Sets
Price :
$5-$10 Sets
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
20000 Set/Sets per Month
Delivery Time :
30 work days
Packaging Details :
570x340x165
Color :
Silver
Gas Type :
NG LPG
Rust Resistant :
rust resistant for outdoor use
Heating Characterisic :
≥12MV(within20s at 650℃)
Applicable Type :
RV, Outdoor, Garage, Household
Pipe Diameter :
60 mm
Installation :
Wall Mounted
Model :
Greenstar 8000 Life
Advantage :
Energy Save
Applocation :
Gas Water Heater
Efficiency Rating :
95%
Ignition Wire Length :
30cm
Rated Voltage :
220V
Installation Type :
Wall Mount
Warranty :
1 Year
Description

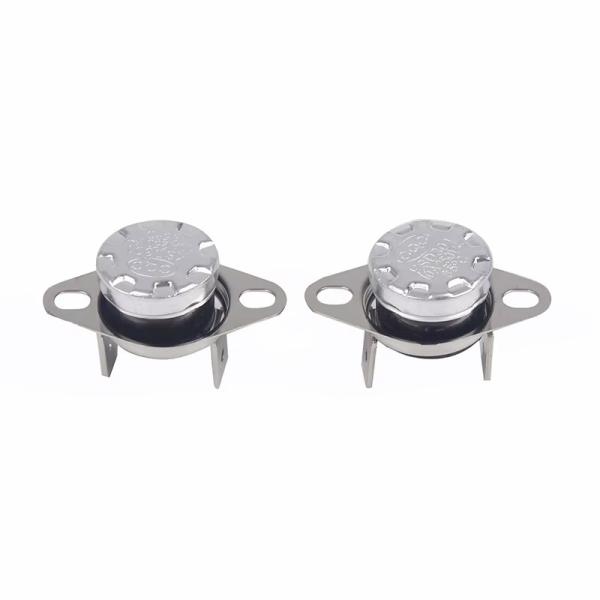

KSD-301 Bimetal Thermostat Switch – Normally Closed Heating Element Controller

The KSD-301 thermostat is a bimetal thermal switch designed for various heating elements and household appliances. The KSD-301 operates through the thermal expansion and contraction of the bimetal disc, achieving mechanical open/close control. It features stable operating temperature, fast response, and a simple yet reliable structure, making it suitable for water heaters, dryers, fan heaters, water dispensers, and other applications requiring temperature control and overheating protection.

Key Features
  • Precise Temperature Control: KSD-301 provides precise operating temperature (±3°C), ensuring stable temperature regulation for equipment.
  • High Load Capacity: KSD-301 supports up to 10A/250VAC load capacity, compatible with most household appliances.
  • Durable & Reliable: KSD-301 adopts high-temperature-resistant bimetal material, offering long service life and high reliability.
  • Compact Design: KSD-301 features a compact structure, easy to install and compatible with multiple mounting options.
  • Mechanical Operation: KSD-301 is a mechanical thermostat that operates without external power, reducing failure risks.
  • Customizable Options: KSD-301 allows customized operating temperatures and supports OEM/ODM services.
Technical Specifications
Item Specification
Model KSD-301
Operating Temperature Range Common: 50°C / 60°C / 70°C / 80°C / 90°C (customizable)
Operating Accuracy ±3°C (typical)
Rated Voltage 250VAC
Rated Current 10A (resistive load)
Contact Type Normally Closed (NC) / Normally Open (NO) optional
Housing Material Epoxy resin encapsulation / Metal case (depending on model)
Connection Type Quick connector / Wire soldering / Pin terminal (optional)
Mechanical Life ≥10,000 cycles (typical)
Working Temperature -10°C ~ +150°C
Mounting Method Clip-on / Screw fixing / Insert type
Applications Water heaters, dryers, coffee machines, heaters, water dispensers, etc.
Frequently Asked Questions

Q1: What is the operating temperature range of the KSD-301 thermostat?
A1: The KSD-301 can be set at common trip points such as 50°C, 60°C, 70°C, 80°C, or 90°C. Customized temperature settings are also available upon request.

Q2: Is the KSD-301 available in both NC and NO types?
A2: Yes, the KSD-301 is available in Normally Closed (NC) and Normally Open (NO) versions to suit different applications.

Q3: How much current can the KSD-301 handle?
A3: The standard model is rated for 10A at 250VAC (resistive load). For inductive loads or higher current, please consult us for suitable models.

Q4: What appliances are suitable for the KSD-301 thermostat?
A4: The KSD-301 is widely used in water heaters, dryers, fan heaters, coffee machines, and water dispensers, as well as other heating devices requiring temperature control and protection.

Q5: Can I request OEM/ODM service for KSD-301?
A5: Yes, OEM/ODM services are supported. We can provide customized temperature settings, housing types, and wiring options according to customer requirements.

KSD-301 Bimetal Thermostat Switch with 220V Rated Voltage 10A Rated Current and 50°C-90°C Operating Temperature for Precise Control
Front View
KSD-301 Bimetal Thermostat Switch with 220V Rated Voltage 10A Rated Current and 50°C-90°C Operating Temperature for Precise Control
Top View
KSD-301 Bimetal Thermostat Switch with 220V Rated Voltage 10A Rated Current and 50°C-90°C Operating Temperature for Precise Control
Installation Example
KSD-301 Bimetal Thermostat Switch with 220V Rated Voltage 10A Rated Current and 50°C-90°C Operating Temperature for Precise Control
Flame Distribution

KSD-301 Bimetal Thermostat Switch with 220V Rated Voltage 10A Rated Current and 50°C-90°C Operating Temperature for Precise ControlKSD-301 Bimetal Thermostat Switch with 220V Rated Voltage 10A Rated Current and 50°C-90°C Operating Temperature for Precise Control
Side View
