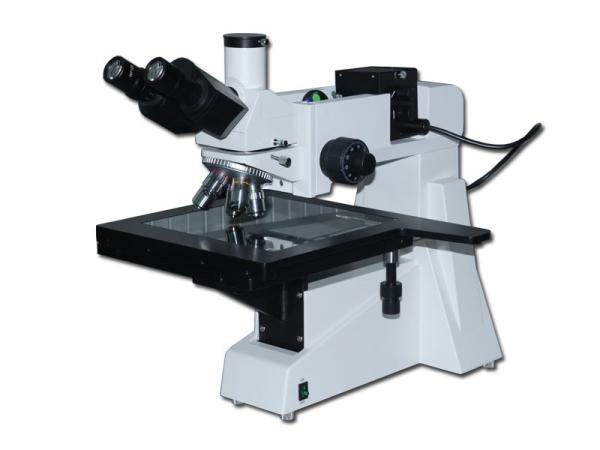

50x - 800x Ce Optical Microscope For Metallurgy
50x - 800x Ce Optical Microscope For Metallurgy
Specifications
Brand Name :
VANCO
Model Number :
XJL-201
Certification :
CE
Place of Origin :
CHINA
MOQ :
ONE PC
Price :
Negotiable
Supply Ability :
50pcs/month
Delivery Time :
As per order quantity
Packaging Details :
In styrofoam case and carton
Drawtube :
Trinocular
Theory :
Metallurgical Microscope
Viewing head :
360° rotatable,inclined at 30 °
Condenser :
Abbe N.A.1.25
name :
50x - 800x optical microscope for metallurgy
Stage :
Large mechanical stage
Description

XJL-201 50X-800X Large Moving stage metallurgical microscope

XJL-201 series reflected metallurgical microscopes are suitable to observe the microscopical surfaces of non-transparent object. They are equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. They have clear and high-contrast picture beautiful sculpt, convenient control and etc. they are the ideal instrument in research work in metallography, mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.
Features
▲ With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
▲ With large move range mechanical stages, can move quickly and slowly.
▲ Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
▲ 6V 30W Halogen lamp, brightness control.
▲ Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.

Standard Configuration

Model XJL-201 XJL-201A
Eyepiece Wide field WF10X(Φ18mm)
Objective Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60
Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80
Eyepieces tube Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)
Vertical illumination unit 12V 30w, halogen lamp, adjustable brightness
Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter
Focus system Vertical adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing2μm.
Nosepiece Quintuple(Frontward ball bearing inner locating)
Stage

Three layer mechanical

Size:250mmX230mm,movingrange:154mmX154mm

Three layer mechanical

Size:280mmX270mm,movingrange:204mmX204mm
