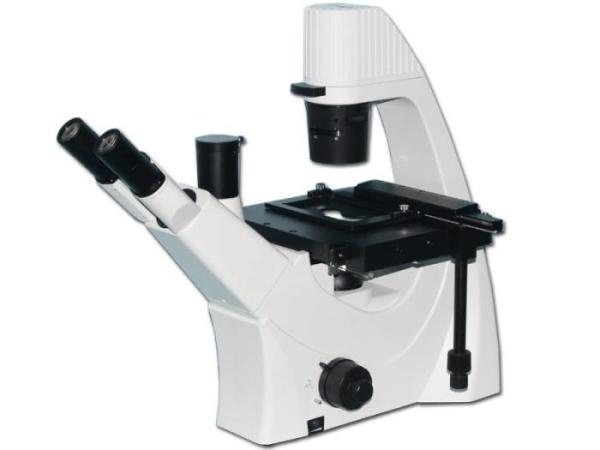

Trinocular Inverted Biological Microscope 100x - 400x 9w Led Light
Trinocular Inverted Biological Microscope 100x - 400x 9w Led Light
Specifications
Brand Name :
VANCO
Model Number :
XDS-5
Certification :
CD
Place of Origin :
CHINA
MOQ :
one pc
Payment Terms :
T/T
Supply Ability :
50PCS/MONTH
Delivery Time :
2 weeks after confirmation
Packaging Details :
Styrofoam case
Theory :
Inverted Biological Microscope
Drawtube :
Trinocular
Eyepiece :
WF10X
Objective :
10X/20X/40X
Viewing head :
Trinocualr head
Nosepiece :
Quadruple Nosepiece
Description

XDS-5 Inverted biological microscope

Main parameters

 Total magnification 100X~400X(standard)
Mechanical tube length ∝
Conjugate distance of objective ∝
Eyepiece Wide-field eyepiece WF 10X field of view number Ф22mm

Eyepiece interface

Ф30mm

Parfocal distance

10mm
Centering telescope
Trinocular Inclination 45°,interpupillary distance:48 ~75mm .
objective magnification N.A Work disstance(mm) Thickness of cover glass (mm) Remarks
10X 0.25 4.27 1.2
20X 0.40 8.0 1.2
40X 0.60 3.5 1.2
Phase-contrast objective 10X 0.25 4.27 1.2 Remark"PHP2"
Nosepiece Quadruple
Focus system Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. Effective distance.11mm
Condenser Long working distance condenser, working distance: 70mm, and with pull board phase contrast unit
Stage Mechanical Stage, moving range 77mm (longitudinal)X112mm (transverse), detachable stage moving device
Culture dish holder 29mm (W)X77mm (L), optional with a circular culture dish Ф35mm
34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
57mm (W)X82mm (L),optional with a circular culture dish Ф60mm
Phase-contrast condenser Sliding phase contrast equipment ,center adjustable
Illumination 9W LED,adjustble brightness
Filter Frosted grass and blue filter
Accessory hexagonal socket wrench(M4,M5)
