High Bright Machine Vision Led Lighting Bar Light For Industry Inspection
High Bright Machine Vision Led Lighting Bar Light For Industry Inspection
Specifications
Brand Name :
VANCO
Model Number :
ZJL-200
Certification :
CE
Place of Origin :
CHINA
MOQ :
ONE PC
Price :
Negotiable
Supply Ability :
500pcs/month
Delivery Time :
As per order quantity
Packaging Details :
carton
Application :
Machine vision,Microscope
Color :
as shown
Light source :
LED
Warranty :
1 Year
Type :
Machine Vision Lighting
Product name :
Led Bar Lights Machine Vision with Diffusr for Visual Inspection
Description

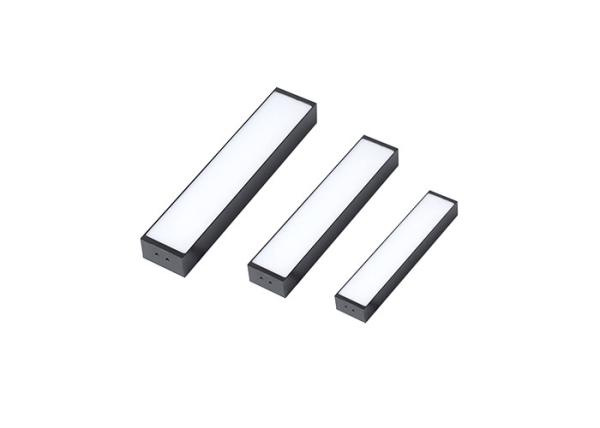

ZJ-L200 Machine Vision LED Bar Light for Industry Inspection

High bright bar lights for machine vision illumination are combined with high bright and high-density LED array,shells are made with Al-Mg alloy, add multiple heat sinks offered good condition for the stable use of high bright LED particles, more convenience and flexible installation.

Features

- high brightness, high density LED array

- Diffuse board is optional, increase the uniformity of lights
- Use wave-soldering technology, nuts on the back can move any distance, make the installation easier
- Mold was designed in form, can be cut in any length
- good heat dissipation

Application Areas

- Inspect the general appearance of huge products

- Inspect the package defects
- Inspect the defects of large size LCD panels
- Inspect the flatness & the true position of connector
- Inspect the surface scratches, marks, breakages , margins, etc.

Model

 LED Model/qty LED
Illumination
(MCD)		 Light angel
(deg)

Color
(RBW)

 Power supply
Voltage/Power

BR5217BB12-R/B/W

F3 R / 30

 63000

20

 RBW

12V / 3W

BR9032BB12-R/B/W

Under developing

 RBW

BR11223BB12-R/B/W

3528 / 52

 109200

120

 RBW

12V / 3W

BR14019BB12-R/B/W

3528 / 64

 134400

120

 RBW

12V / 3W

BR15024BB12-R/B/W

3528 / 80

 168000

120

 RBW

12V / 5W

BR20023BB12-R/B/W

3528/104

 218400

120

 RBW

12V / 5W
