Specifications
Brand Name :
KN
Model Number :
2BE1
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
≥3000
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
≥50000
Delivery Time :
7days
Packaging Details :
Wooden box
Product name :
2BE1 Water Ring Vacuum Pump
Capacity range :
210 to 3000 m³/h
Product type :
Liquid Ring Vacuum Pump
Application :
Chemical, Pharmaceutical, Food, Paper, and Environmental Protection industries
Speed :
Belt or Direct connection
Alternative name :
Water Ring Vacuum Pump
limiting vacuum :
33 MPa
Seal type :
Mechanical Seal or Packing Seal
Material :
Cast Iron / Stainless Steel
Description
2BE1 Water Ring Vacuum Pump
High-Efficiency Oil-Free Industrial Vacuum Equipment with Steam Water Separator Design
Quick Details
  • Product Type: Single-stage single-acting water ring vacuum pump/compressor
  • Core Structure: PTFE valve plate + upper-mounted steam-water separator
  • Material Advantage: High-chromium stainless steel shaft sleeve, welded steel plate pump body
  • Vacuum Performance: Ultimate vacuum 33hpa/160hpa, efficiency 40-65%
  • Transmission Modes: Belt drive or direct motor connection (optional)
  • Installation Feature: Top/side inlet/exhaust ports, flexible installation
  • Protection Function: Precise anti-cavitation design, imported bearing for stability
  • Application Scenarios: Vacuum filtration, degassing, evaporation, concentration, coal mine gas drainage
  • Energy-Saving Highlight: Automatic exhaust area adjustment, no over-compression
  • Durability: Welded impeller with heat treatment, strong impact resistance
Product Description
The 2BE1 series water ring vacuum pump is a high-efficiency, energy-saving product developed by our company using advanced imported technology. This single-stage, single-acting vacuum pump features a simple structure, convenient maintenance, reliable operation, and high energy efficiency. It is designed to extract air and other gases insoluble in water that are free of solid particles and non-corrosive, creating vacuum conditions in closed containers. When equipped with appropriate motors, it can handle flammable and explosive gases. With corrosion-resistant materials, it can also process corrosive gases to a certain extent.

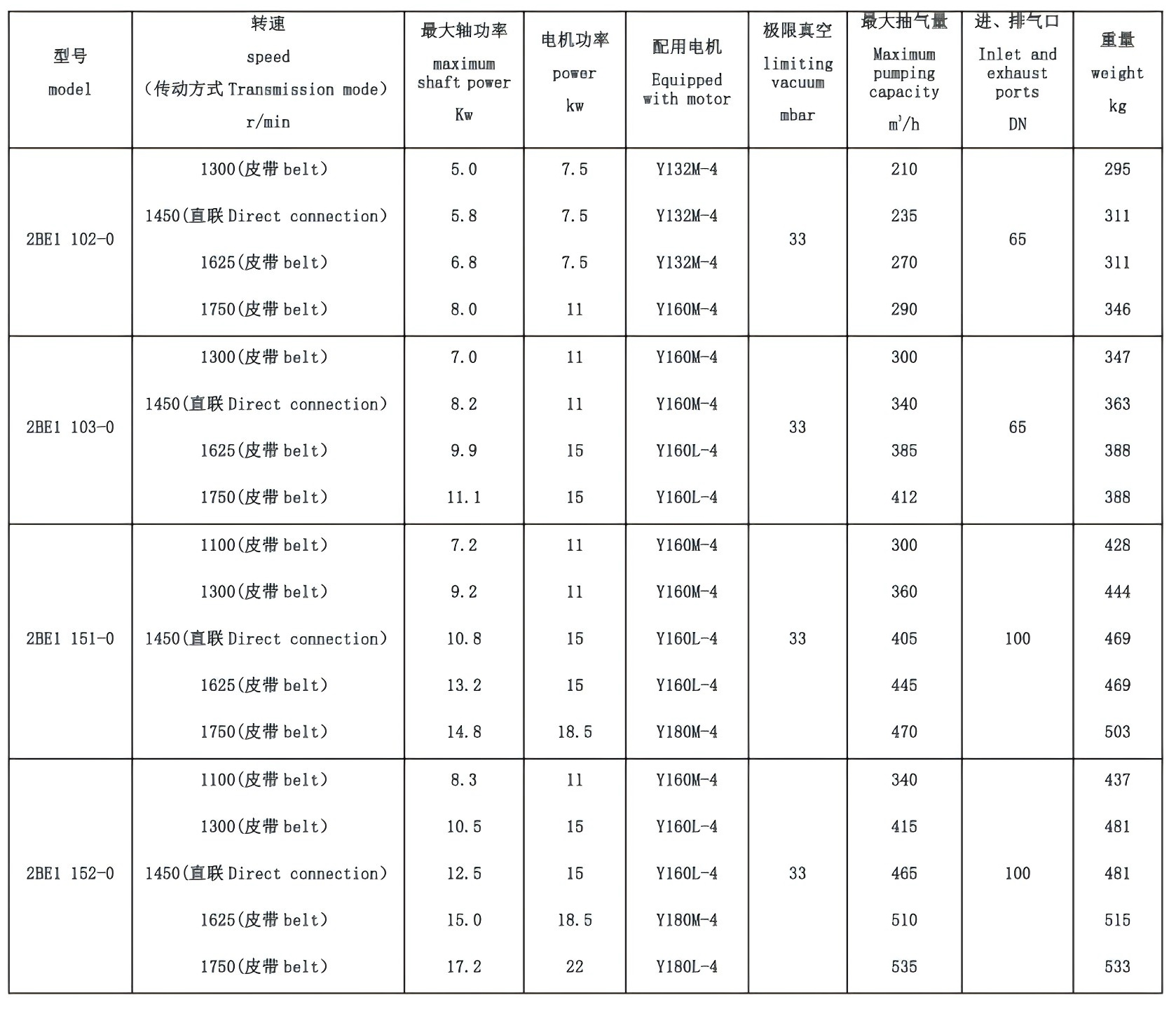

Specifications
33MPa 2BE1 Water Ring Vacuum Pump Liquid Vacuum Pump With Steam Water Separator
Important Notices
  • The pump is primarily used for pumping particle-free gases; the working medium is normal temperature clean water, with other media such as acid and alkali available for special requirements.
  • When operating for extended periods near the limit vacuum, cavitation protection measures must be implemented (such as connecting cavitation protection pipes) to prevent equipment damage.
  • Select the appropriate transmission mode according to the model: belt drive is recommended for models below 50/52, while reducer drive should be selected for pumps 60 and above.
  • The installation foundation must be flat and stable; pump cover can feature top or side inlet/exhaust ports based on site conditions, with unused ports sealed tightly.
  • Regularly monitor bearing temperature and lubrication status, and promptly replace mechanical seals and shaft sleeves if leakage or abnormal wear is detected.
  • Maintain clean working fluid; if not recycled, flow rate should be doubled as specified in the parameter table.
  • For corrosive conditions, select full stainless steel flow passage configuration; for explosion-proof requirements, equip with explosion-proof motors or control boxes.
  • When exhaust pressure exceeds 0.02MPa (gauge pressure), appropriately increase motor power to avoid overload operation.
Applications
Widely used across multiple industries including power generation, chemical processing, coal mining, paper manufacturing, plastic machinery, environmental protection, medical, food processing, mineral processing, petrochemical, light industry, packaging, metallurgy, building materials, stone processing, and fertilizers. Typical applications include vacuum filtration, vacuum feeding, vacuum degassing, vacuum evaporation, vacuum concentration, vacuum moisture regain, coal mine gas drainage, and chemical plant pressure swing adsorption. Particularly suitable for applications requiring large air volume, high vacuum degree, and isothermal compression of flammable and explosive gases.
33MPa 2BE1 Water Ring Vacuum Pump Liquid Vacuum Pump With Steam Water Separator
Frequently Asked Questions
Q1. Can the 2BE1 series be used as a compressor?
Yes, it can be configured as a compressor when needed, with a maximum discharge pressure of 0.26MPa (absolute pressure) for low-pressure compression scenarios.
Q2. What is the difference between the 2BE1 and 2BE3 series?
The 2BE3 series offers larger air volume but lower vacuum degree, making it suitable for high-volume applications. It uses double-row tapered roller bearings and features optimized positioning between the pump body and distribution plate with more installation options.
Q3. Is there a MOQ limit for this product?
No, the minimum order quantity is 1 unit, supporting sample testing and small-batch procurement.
Q4. How to choose the right motor power?
The motor power in the parameter table suits most working conditions. For high exhaust pressure or harsh conditions, increase motor power appropriately. If actual shaft power is low, select a motor close to the shaft power for energy efficiency.
Q5. What materials are available for the flow passage parts?
Standard configuration is cast iron with stainless steel impeller; full stainless steel flow passage parts are available for corrosive working conditions.
Q6. What is the warranty period of the 2BE1 series?
We provide a 1-year warranty covering manufacturing defects and component failures (excluding wear parts and damage caused by improper use or unconfigured special working conditions).
Q7. How to solve cavitation during operation?
The pump includes precise anti-cavitation protection measures. When operating under extreme pressure, connect the cavitation protection pipe or increase working fluid flow to eliminate cavitation noise.
Q8. Can the transmission mode be customized?
Yes, most models support both belt drive and direct motor connection; please specify the required transmission mode when ordering.
Q9. What is the service life of key components such as bearings and mechanical seals?
Imported bearings have a service life of approximately 15,000 hours, and imported mechanical seals last about 8,000 hours under normal working conditions. Regular maintenance can extend component life.
Q10. How to confirm the model selection?
Please provide parameters such as required pumping speed, vacuum degree, medium type, working temperature, and transmission mode, and our technical team will recommend the suitable model.
