Fire Resistant Phosphate Ester Vacuum Oil Purifier Dehydration 3000L/H
Fire Resistant Phosphate Ester Vacuum Oil Purifier Dehydration 3000L/H
Specifications
Brand Name :
Sino-NSH
Model Number :
SINO-NSH-FV
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100/month
Delivery Time :
12 working days
Packaging Details :
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Name :
SINO-NSH-FV
Color :
As Your Requirement
Function :
Dehydration, Degassing, Remove Impurities
Power supply :
380V/3P/50Hz(or As Needed)
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
High Light :
vacuum oil filter machine, oil purification systems
Description

Vacuum Phosphate Ester Fuel-resistant Oil Purifier

Sino-NSH-FV is a stainless steel machine with thermal and vacuum processing.

Sino-NSH-FV is mainly used to improve the properties of phosphate ester fire-resistant oil in generator set. It can efficiently remove water, gas, impurities and oxide, meanwhile it can also reduce acid and improve the conductivity.Which is widely used in the field of electric power,chemical, paper and metallurgical industries which have steam turbine, gas turbine and hydro turbine.

Sino-NSH-FV adopts advanced hydrophilic and hydrophobic principle, the equipment is dehydration, de-acidification, broke emulsion and high precious filtration.

Technical specification

Parameter Value
FV-10 FV-20 FV-30 FV-50
Capacity,liters/hours 600 1200 1800 3000
Heating Power,kW 9 18 27 36
Total Power,kW 11 20 33 40
Power supply Fully customizable
Inlet Diameter,mm 32 32 32 48
Outlet Diameter,mm 32 32 32 48
Dimensions
(without trailer)		 Length,mm 1200 1200 1200 1600
Width,mm 940 960 1000 1200
Height,mm 1550 1550 1600 2000
Weight(without trailer),kg 380 400 420 500
Processed Oil Spec Water content,ppm ≤ 100
Filtration fineness,um ≤ 5(or 1-5 as needed)
Cleanliness(NAS 1638) ≤ 6
Acid,mgKOH/g ≤ 0.03
Resistivity,Ω.cm ≥5*109

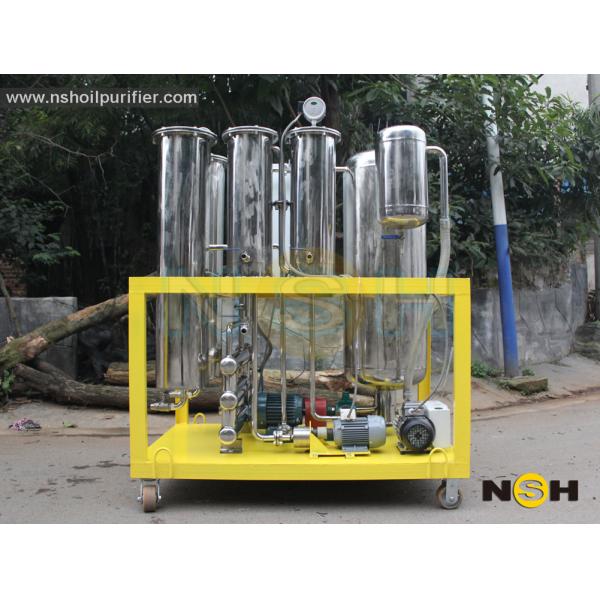

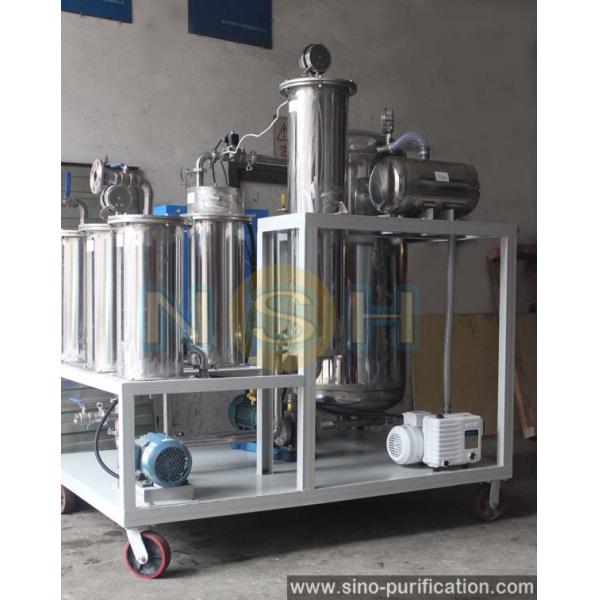

Products show:

Fire Resistant Phosphate Ester Vacuum Oil Purifier Dehydration 3000L/H

Fire Resistant Phosphate Ester Vacuum Oil Purifier Dehydration 3000L/H

Company and factory picture:

Fire Resistant Phosphate Ester Vacuum Oil Purifier Dehydration 3000L/H

Fire Resistant Phosphate Ester Vacuum Oil Purifier Dehydration 3000L/H

Fire Resistant Phosphate Ester Vacuum Oil Purifier Dehydration 3000L/H
